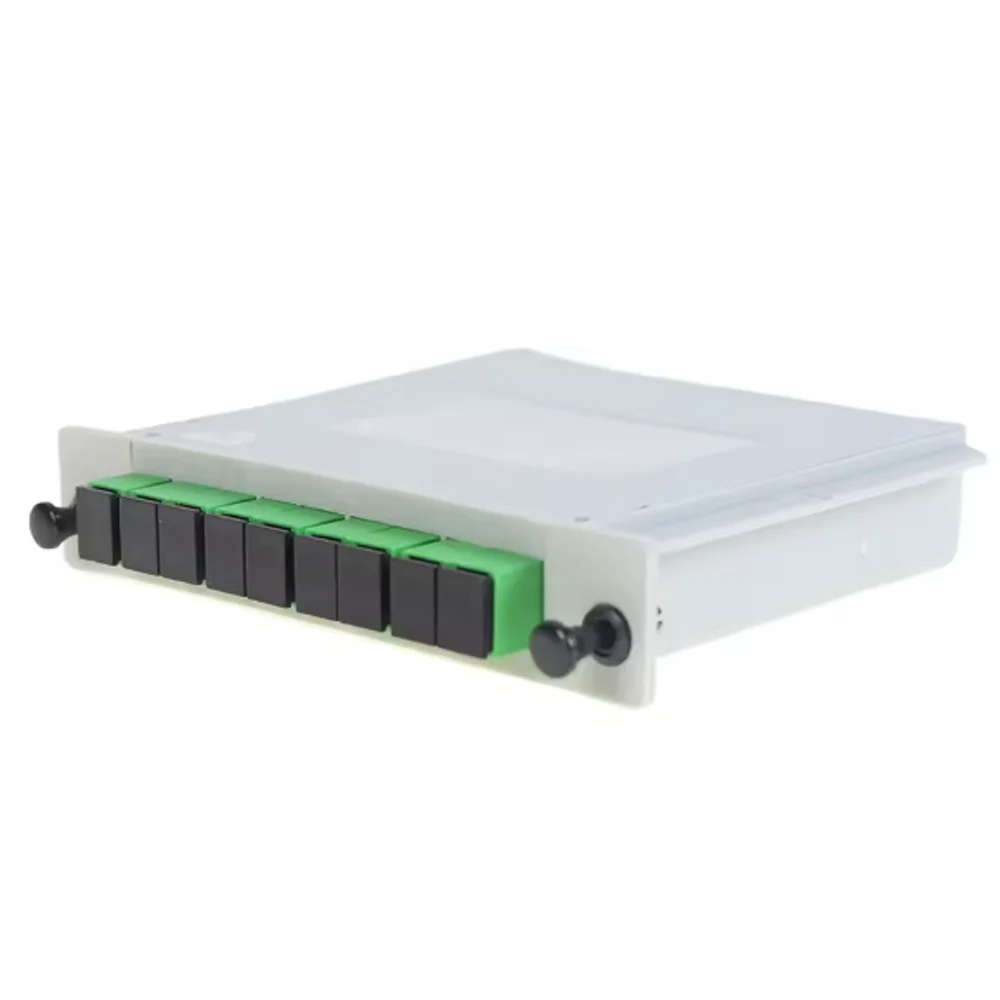

The PLC Cassette (Plug-in) Fiber Splitter features a standardized cassette design that inserts directly into 19-inch rack-mount subframes. With ABS or metal housing and SC/APC or SC/UPC connectors, it is compatible with G657A/G652D single-mode fiber. Ideal for data centers, equipment rooms, and FTTH optical distribution scenarios, providing uniform optical power splitting with stable and reliable performance.
Send Message Get Price
| Item | Parameter |
| Product Name | LGX Cassette PLC Fiber Splitter (1×2 to 1×64) |
| Model Number | PLC Splitter (LGX Cassette Type) |
| Product Type | LGX Cassette PLC Fiber Splitter |
| Application | Optical Fiber Communication; CATV; Optical Transmission Backbone; FTTH/FTTx; Optical Fiber Test and Measurement Systems |
| Configuration | 1×2 / 1×4 / 1×8 / 1×16 / 1×32 / 1×64 / 1×128 (Optional) |
| Connector Type | SC/UPC, SC/APC; FC, LC, ST, etc. also available |
| Housing Material | ABS Engineering Plastic |
| Pigtail Fiber Diameter | 0.9 mm / 2.0 mm / 3.0 mm (Optional) |
| Pigtail Length | 1 m / 1.5 m or Customized |
| Operating Wavelength | 1260 to 1650 nm |
| Operating Temperature | -40°C to +75°C |
| Parameter | Spec | Unit |
| Insertion Loss – 1×2 | < 4.2 | dB |
| Insertion Loss – 1×4 | < 7.4 | dB |
| Insertion Loss – 1×8 | < 10.7 | dB |
| Insertion Loss – 1×16 | < 13.9 | dB |
| Insertion Loss – 1×32 | < 17.2 | dB |
| Insertion Loss – 1×64 | < 21.5 | dB |
| PDL – 1×2/1×4 | < 0.2 | dB |
| PDL – 1×8/1×16 | < 0.3 | dB |
| PDL – 1×32/1×64 | < 0.4 | dB |
| Uniformity – 1×2 | < 0.6 | dB |
| Uniformity – 1×4/1×8 | < 0.8 | dB |
| Uniformity – 1×16 | < 1.0 | dB |
| Uniformity – 1×32 | < 1.5 | dB |
| Uniformity – 1×64 | < 2.0 | dB |
| Operating Wavelength | 1260 ~ 1650 | nm |
| Operating Temperature | -40 ~ +75 | degC |
| Configuration | Dimension L x W x H | Unit |
| 1×2 | 130 x 100 x 25 | mm |
| 1×4 | 130 x 100 x 25 | mm |
| 1×8 | 130 x 100 x 25 | mm |
| 1×16 | 130 x 100 x 50 | mm |
| 1×32 | 130 x 100 x 76 | mm |
| 1×64 | 130 x 100 x 154 | mm |
Note: Specifications are subject to change without prior notice for product improvement.
low insertion loss and excellent channel-to-channel consistency, meeting the strict signal balance requirements of FTTH/PON network applications.
covering complete FTTH splitting needs from building unit access to large-scale PON central office aggregation.
supporting full O/E/S/C/L bands; compatible with all mainstream PON standards including GPON, EPON, BPON, WDM-PON, and CATV.
PDL < 0.2-0.4 dB (increasing with port count); uniformity < 0.6-2.0 dB; comprehensively excellent optical performance.
rigorous inspection from materials and process to finished products; quality meets telecom-grade requirements.
FTTH residential optical distribution and ODN networks
Data center and equipment room fiber management
GPON / EPON passive optical access networks
CATV (Cable Television) networks
19-inch standard rack-mount subframe integration
Enterprise LAN (Local Area Network) fiber cabling
