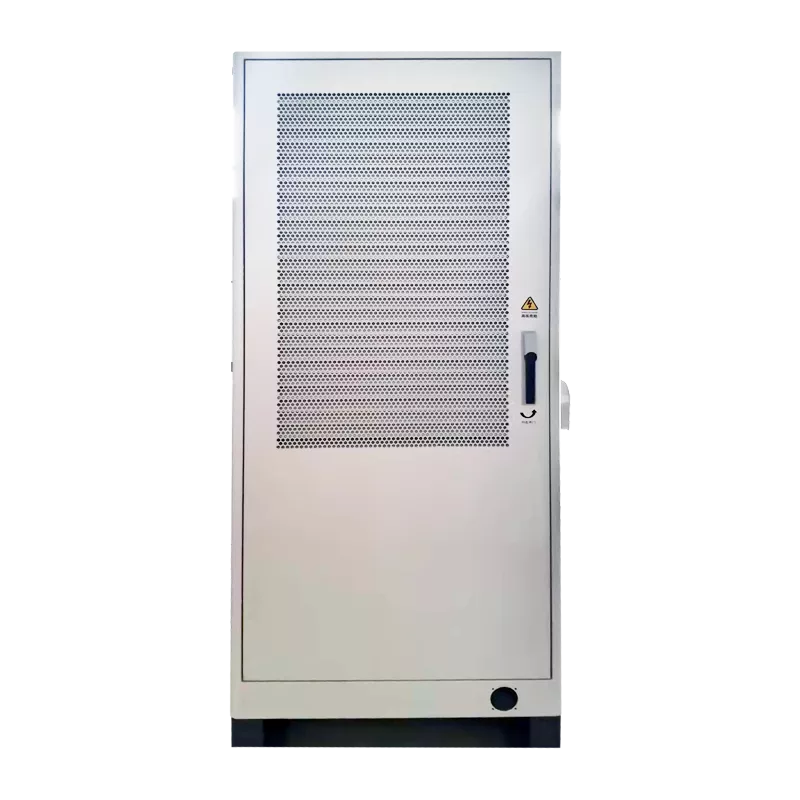

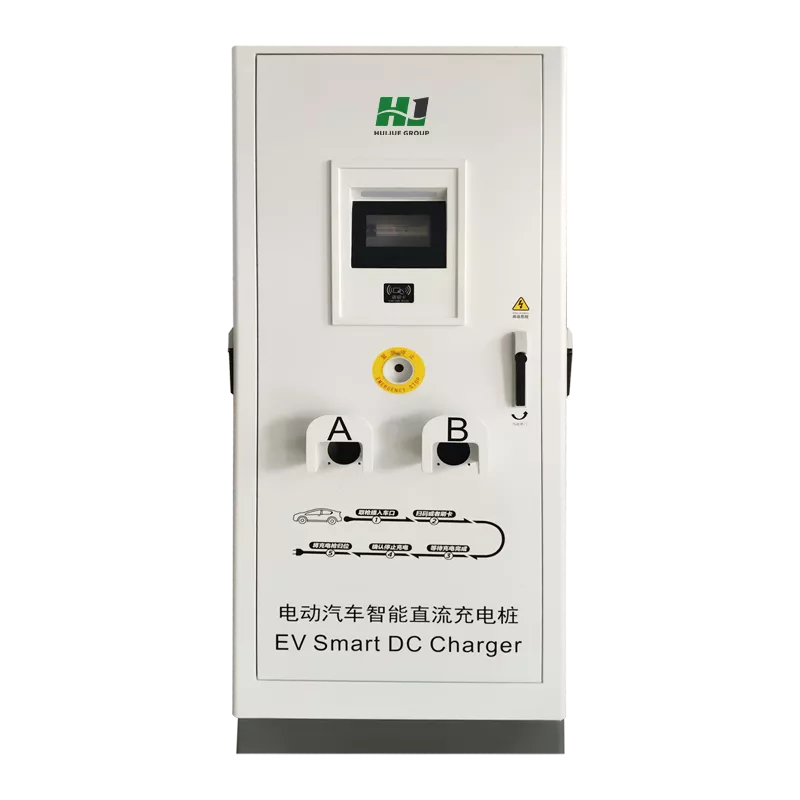

HJ This heavy-duty truck charging pile utilizes galvanized sheet metal process, offering strong safety protection and excellent anti-oxidation and corrosion resistance. It efficiently meets heavy-duty truck charging needs with stable operation. Precise control, via pluggable modules and integrated design, enhances reliability.
| Appearance structure | Product Model | HJ-EVZ-DC400-F-2（Z-11） |
| Weight | 440kg | |
| Shell Material | Sheet metal | |
| Installation | Floor-standing | |
| Dimensions | L800*W800*H1900mm | |
| Length of the charigng gun | 4 guns / Standard 5m (customizable) | |
| Wiring method | Bottom in and bottom out | |
| Electrical specifications | Input voltage | AC 260-485V |
| Input frequency | 46-63Hz | |
| Output voltage | High Voltage Mode HV (200–1000) Vdc Low Voltage Mode LV (150–500) Vdc |
|
| Measurement accuracy | Class 1 | |
| Maximum output current | Single gun 400A | |
| Output power | 400kW | |
| Output current | 300A | |
| Efficiency | ≥95% | |
| Power Factor (PF) | ≥0.98 | |
| Environmental indicators | Applicable Scene | indoor/outdoor |
| Operating Tenperature | 20℃~+55℃,5%~95%(Non-condensing) | |
| Altitude | ≤2000m | |
| Cooling Patterns | Intelligent air cooling | |
| Storage Environment | 30℃~+70℃,5%~95%(Non-condensing) | |
| Ingress Protection | IP54 | |
| Safety design | Overvoltage protection, undervoltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, anti-theft design, lightning protection/smart electricity meter/(optional) | |
| Functional design | 4G communication, mobile payment, back-end monitoring, voice announcement, QR code charging, card swipe charging, LED indication, LCD display | |
Note: Specifications are subject to change without prior notice for product improvement.
The galvanized sheet metal process is employed, enhancing anti-oxidation and corrosion resistance by 2-3 times.
It comes standard with 1000V modules supporting 800V charging platforms, along with standard AC contactors, featuring low power consumption.
Equipped with a pluggable control module. The integrated design ensures more stable operation and high reliability of the charging pile.
It boasts super compatibility, integrating Ethernet and 4G communication, supporting multiple platforms and being compatible with modules from various brands.
Multi-platform traffic guidance driven by technology assists in boosting profitability, with 24/7 customer service technical support and operational guidance provided.
Suitable for high-power vehicle models. Service vehicles include heavy-duty trucks, buses, tractor trucks, dump trucks, etc.
