Productised system, integrating energy storage battery, PCS and power distribution, temperature control, fire protection, flooding door magnet, and monitoring and communication, comprehensively controlling system operation status and risk.
Patented outdoor cabinet protection design, optimised cooling air ducts, protection against dust and rain; front and rear doors open for maintenance, facilitating side-by-side arrangement of multiple systems on site and reducing floor space.
Door-mounted embedded integrated air-conditioning, does not take up cabinet space, increase the available space in the cabinet, better structural integrity of the top, good waterproof effect.
Patented technology with virtual synchronous machine features, can achieve multiple non-communication lines without long-distance free parallel, and off-network switching function.
Standardised structural design, menu-type function configuration, optional photovoltaic charging module for microgrid and other scenarios, grid switching module, industrial frequency transformer and other components, integrated optical storage integrated system cabinet.
The local control panel can realise system operation monitoring, energy management strategy formulation, equipment remote upgrade and other diversified functions.

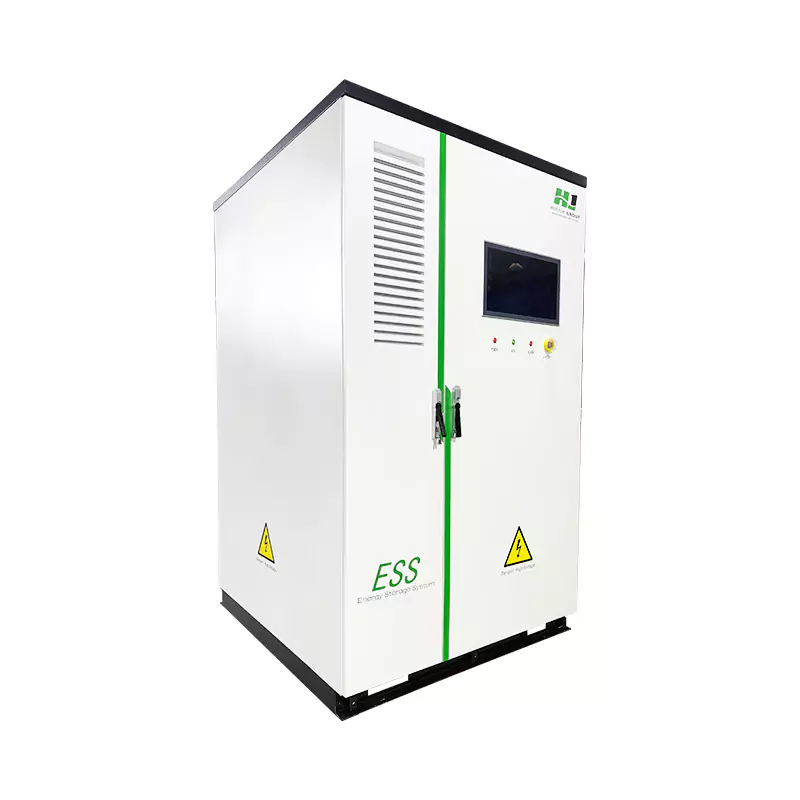

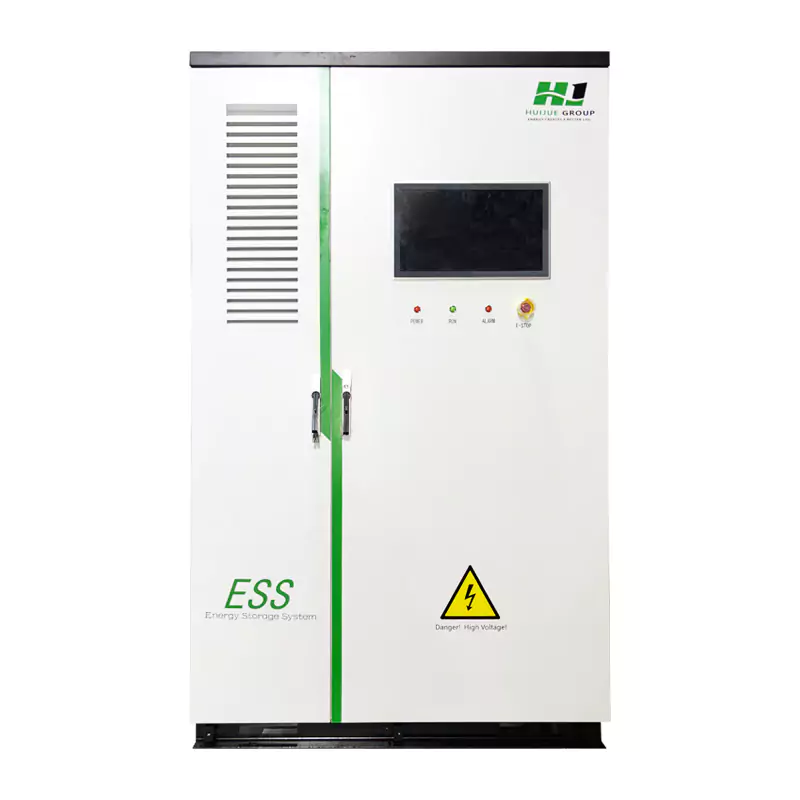

| Product Model:HJ-G215-418L（215KW/418KWh） | |||
| DC parameters | AC parameters | ||
| Battery Type | lithium iron phosphate (LiFePO4) | AC side rated power | 215KW |
| Cell Capacity | 3.2V/314Ah | Maximum power on AC side | 237KW |
| System Battery Configuration | 1P416S | Total harmonic distortion rate of cable | <3% at rated power |
| Rated Battery Capacity | 418KWh | AC side rated voltage | 690V AC |
| Battery Voltage Range | DC1000-1500V | AC access mode | 3P+PE |
| Rated Multiplier | 0.5C | Rated grid frequency | 50/60Hz |
| Depth of discharge | 100% | Power factor range | 0.98 |
| Battery Cooling Method | liquid cooling | Off-grid operation | support |
| System parameters | |||
| Dimension | 1400*1400*2550mm | Temperature control methods | Liquid-cooled units |
| Protection class | IP55 | Fire-fighting programme | Perfluorohexanone + water fire protection |
| System Communication Protocol | Standard: Modbus | Communication Interface | RS485、RJ45 |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Improve power quality, load tracking, backup power, peak shaving and valley filling.
