Utilizing lithium iron phosphate battery cells, the system is safe and reliable, with a cycle life exceeding 6,500 cycles (DoD 80%), meeting long-term usage requirements. The battery cells comply with strict safety standards and feature thermal stability and high-temperature resistance.
Each battery cell is equipped with an independent BMS, supporting real-time monitoring and protection (overcharging, over-discharging, overheating, overcurrent, etc.), and achieving voltage balancing among individual battery cells to enhance overall system stability.
Plug-and-play design eliminates the need for complex wiring, significantly reducing installation time and labor costs. The compact and stylish industrial aesthetic design balances space utilization and visual appeal, suitable for various residential or commercial scenarios.

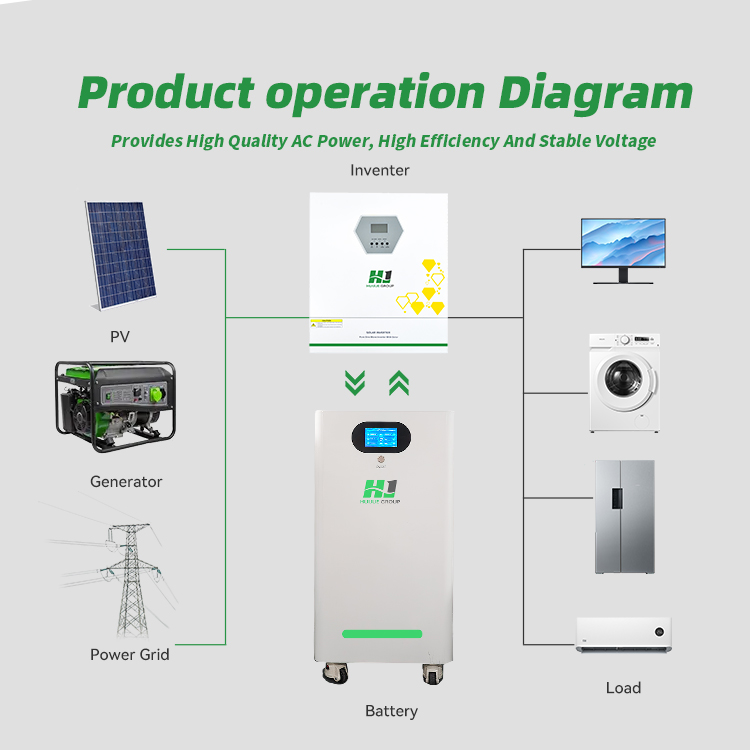

Seamlessly integrates with most mainstream hybrid inverter brands on the market, enhancing system integration flexibility.
| Product model | HJ-HBL48280F | HJ-HBL48314F | HJ-HBL48304F |
| Rated voltage | 51.2V | 51.2V | 51.2V |
| Rated capacity | 280Ah | 314AH | 400AH |
| Rated energy | 14.366KWh | 16.08KWh | 20KWh |
| Output voltage range | 42-58V | 42-58V | 42-58V |
| Charging voltage | 58V | 58V | 58V |
| Cut-off voltage | 42V | 42V | 42V |
| Maximum charging current | 200A | 200A | 200A |
| Recommended charging current | 200A | 200A | 200A |
| Maximum discharging current | 200A | 200A | 200A |
| Efficiency | 96% | 96% | 96% |
| Dimensions (height x width x depth, mm) | 420*240*840mm | 490*255*740mm | 510*293*970mm |
| Net weight (kg) | 119kg | 119kg | 162kg |
| Humidity | 5% to 95% relative humidity | 5% to 95% relative humidity | 5% to 95% relative humidity |
| Charging temperature | -20°C to 65°C | -20°C to 65°C | -20°C to 65°C |
| Discharging temperature | -20°C to 60°C | -20°C to 60°C | -20°C to 60°C |
| Storage temperature | -10°C to 50°C | -10°C to 50°C | -10°C to 50°C |
| Cycle life | >4000 times (0.2C, 25°C, 80% discharge depth) | >4000 times (0.2C, 25°C, 80% discharge depth) | >4000 times (0.2C, 25°C, 80% discharge depth) |
| Communication method | RS485/CAN | RS485/CAN | RS485/CAN |
| Operating mode | Button type | Button type | Button type |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
This lithium battery provides an ideal energy storage solution for a variety of scenarios, including residential, commercial, and industrial applications, ensuring stable operation of equipment and efficient use of energy.
