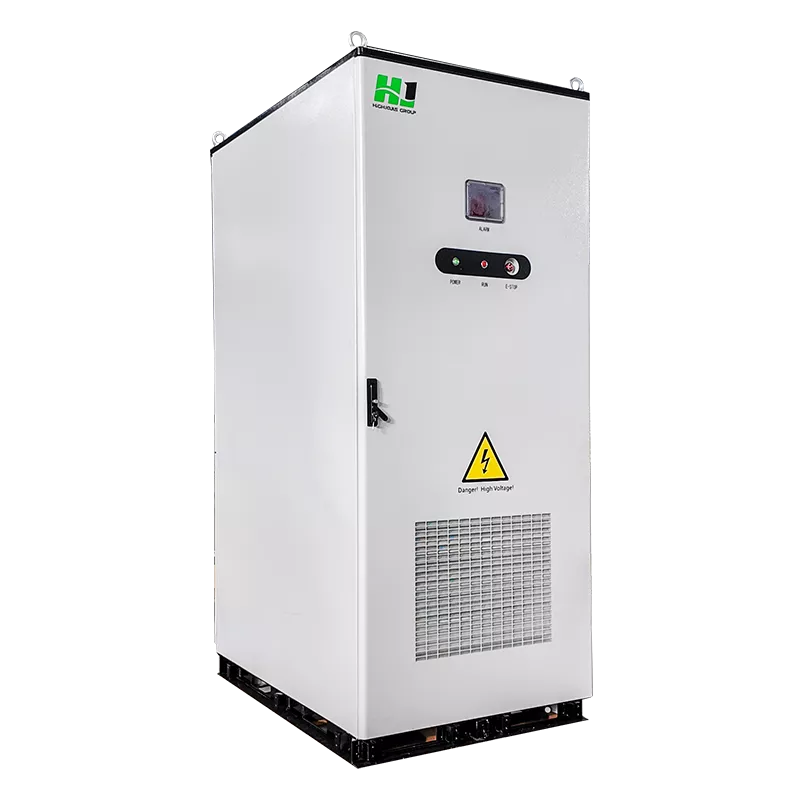

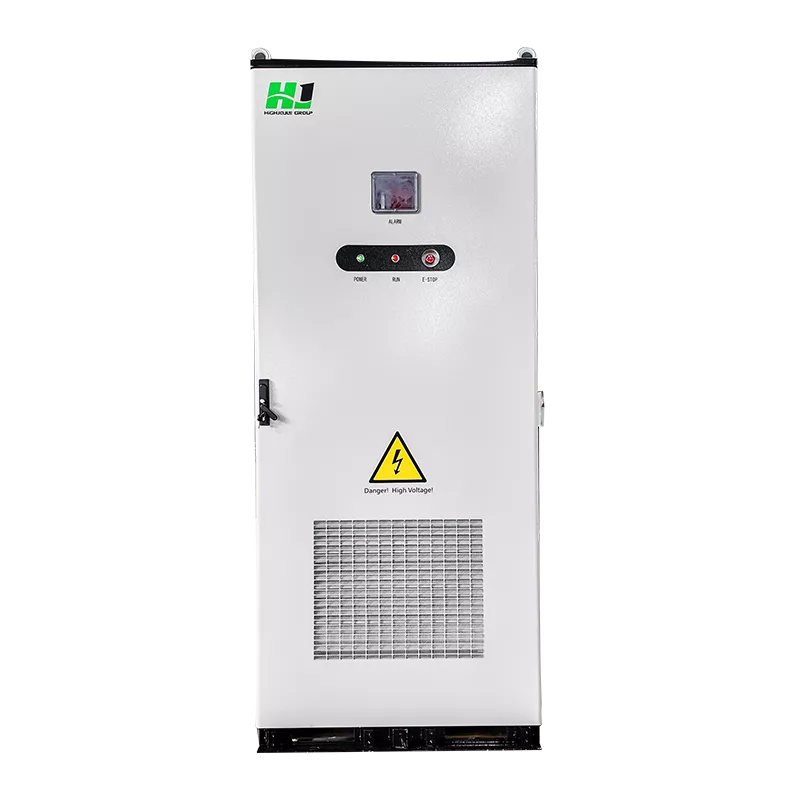

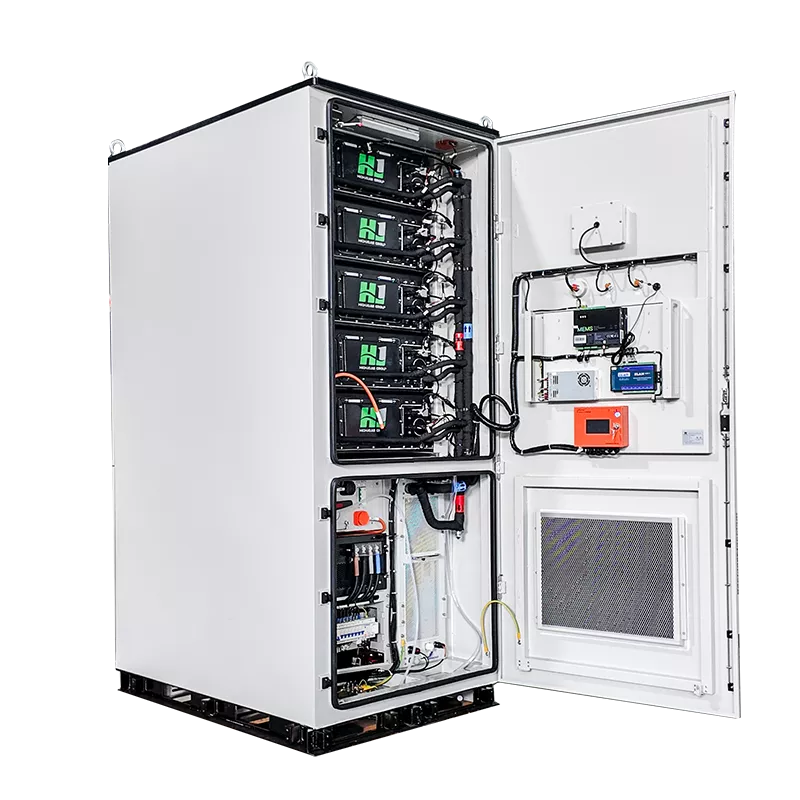

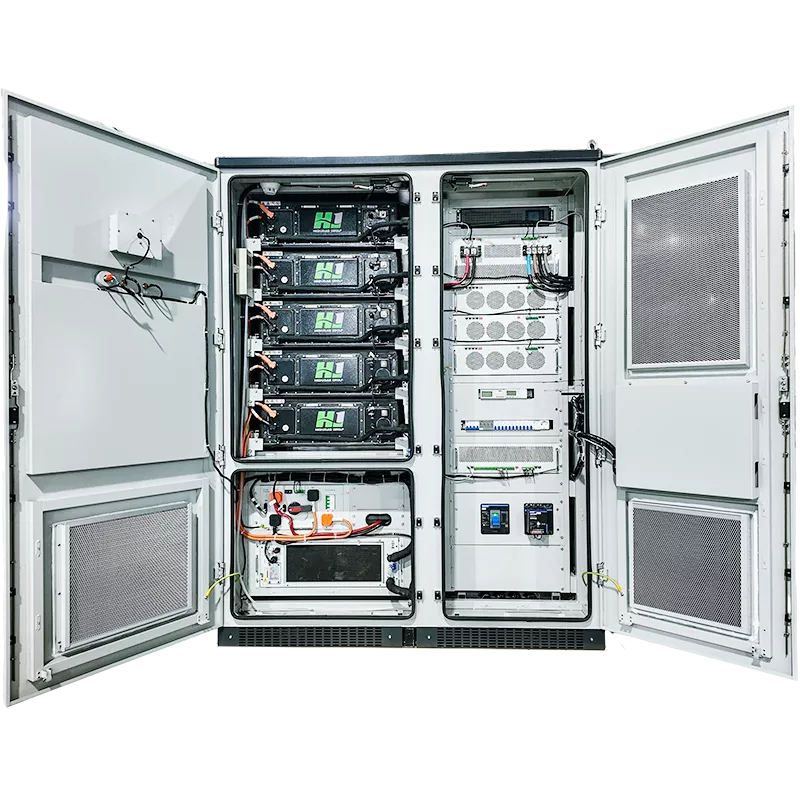

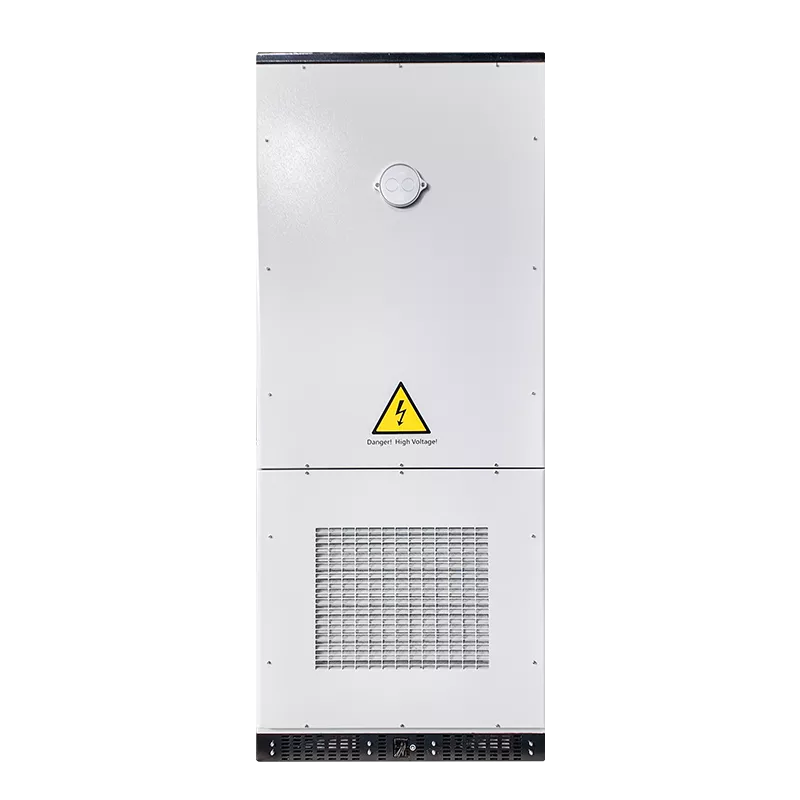

This upper-lower layered liquid-cooled energy storage cabinet adopts separated layout for battery and electrical compartments, equipped with liquid cooling temperature control and fire protec- tion systems. Featuring efficient heat dissipation and high safety, the integrated outdoor cabinet suits commercial & industrial energy storage and emergency power supply.
Send Message Get Price
| Product Model | HJ-G0125-0261L |
| Cell Type | LFP, 314 Ah |
| Rated Energy | 261.248 kWh |
| Battery Configuration | 1P260S |
| DC Voltage Range | 672–864 V DC |
| Dimensions (H × W × D) | 2385 × 990 × 1485 mm |
| Weight | 2.13 T |
| Ingress Protection Rating | IP55 |
| Fire Suppression System | Cabinet-level fire suppression system, including a gas detection device, fire alarm system, and FK-5-1-12 fire suppression system witd a piping network. |
| Maximum Operating Altitude | 3000 m; derating required above 2000 m |
| Operating Temperature Range | -30°C to +55°C; derating required above 45°C |
| Cooling Metdod | Liquid cooling |
| Communication Protocols | Modbus RTU/TCP, MQTT, CAN |
| Grid-Connected Output Parameters | |
| Rated Output Power | 125 kW |
| Rated Current | 180 A |
| Rated Grid Frequency | 50/60 Hz |
| Total Harmonic Current Distortion (THDi) | <3% |
| Off-Grid Output Parameters | |
| Rated Output Power | 125 kW |
| Rated Output Frequency | 50/60 Hz |
| Rated Output Current | 200 A |
| On-Grid/Off-Grid Switching Time | <20 ms witd optional STS |
| Certifications and Standards | |
| Certification Standards | IEC 62477-1, IEC 62619, IEC 63056, EU 2023/1542 |
| Safety Certifications | UN 38.3, MSD |
| EMC Standards | EN IEC 61000-6-1, EN IEC 61000-6-2, EN IEC 61000-6-3, EN IEC 61000-6-4 |
| Grid Connection Standards | EN 50549-1, EN 50549-2 |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
