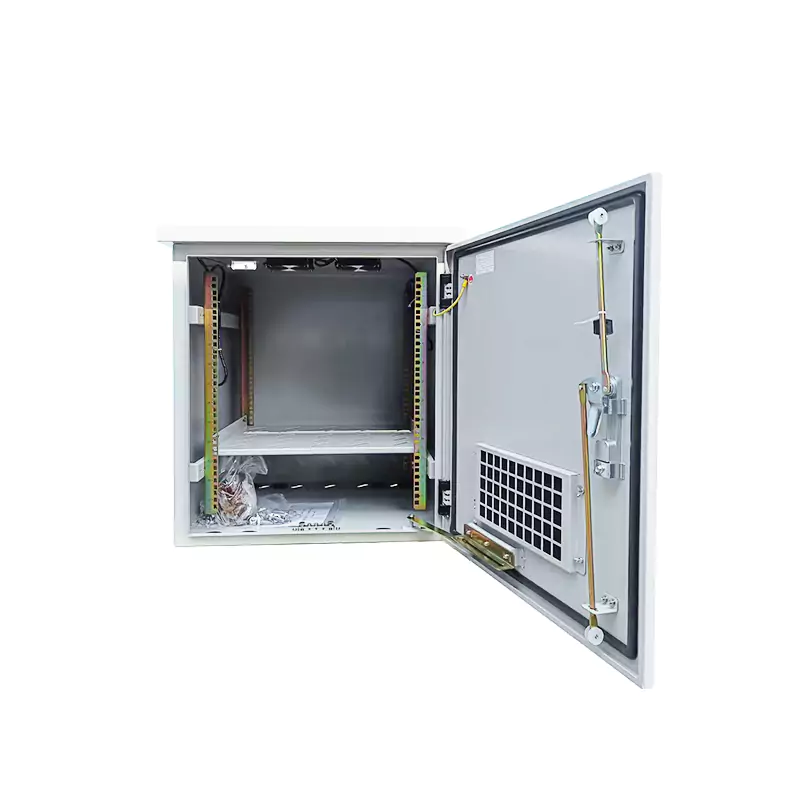

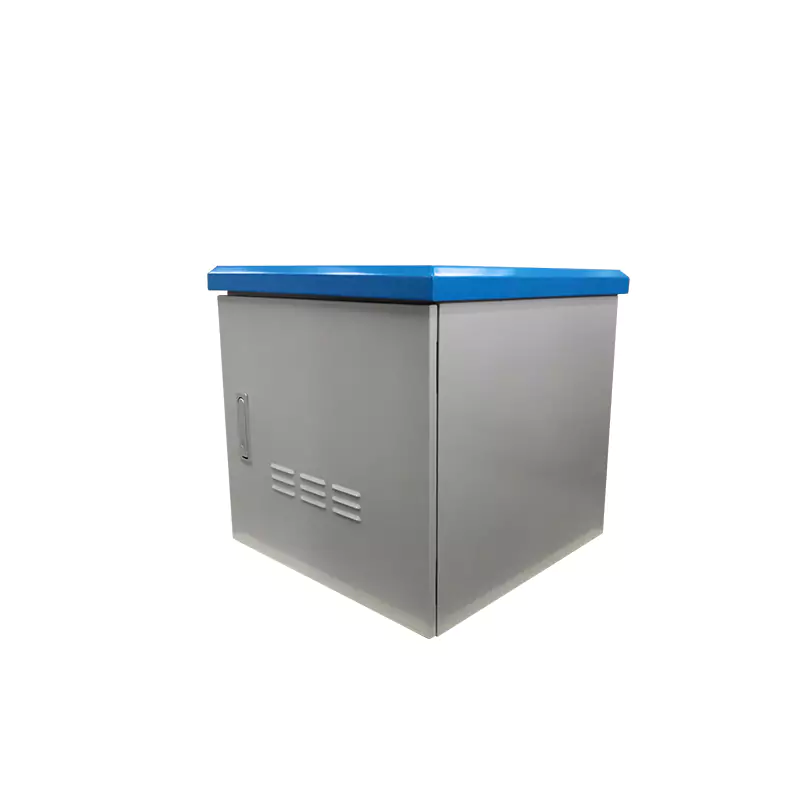

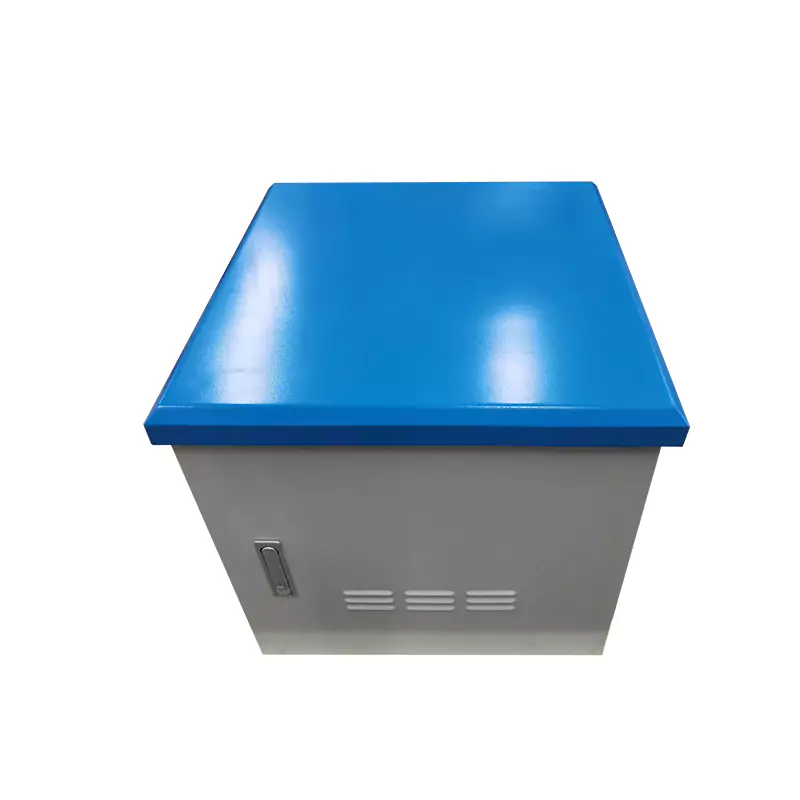

The outdoor fan cabinet is a small outdoor integrated cabinet made of high-quality metal sheet material. It can integrate professional equipment, network communication equipment, AC/DC power distribution, monitoring systems, temperature control equipment, lightning protection, and grounding, and provide an integrated cabinet for the outdoor working environment and safety management of base stations.
| Product Model | HJ-OWVD10-01 | HJ-OWVD10-02 | HJ-OWVD12-01 | HJ-OWVD12-02 | HJ-OWVD14-01 | HJ-OWVD14-02 |
| Rack Capacity | 10U, 19″ rack | 12U,19″rack | 14U,19″rack | |||
| Specifications (Height x Width x Depth mm) | 600mm-600mm-450mm | 600mm-600mm-600mm | 700mm-600mm-450mm | 700mm-600mm-600mm | 800mm-600mm-450mm | 800mm-600mm-600mm |
| Main Configuration | Double-layer structure, 1.2 galvanised steel plate, front door, wall-mounted, carton packaging | |||||
| Temperature Control Equipment | AC fan, dimensions 120 x 120 x 38 mm; speed 90 CFM, power 19 W | |||||

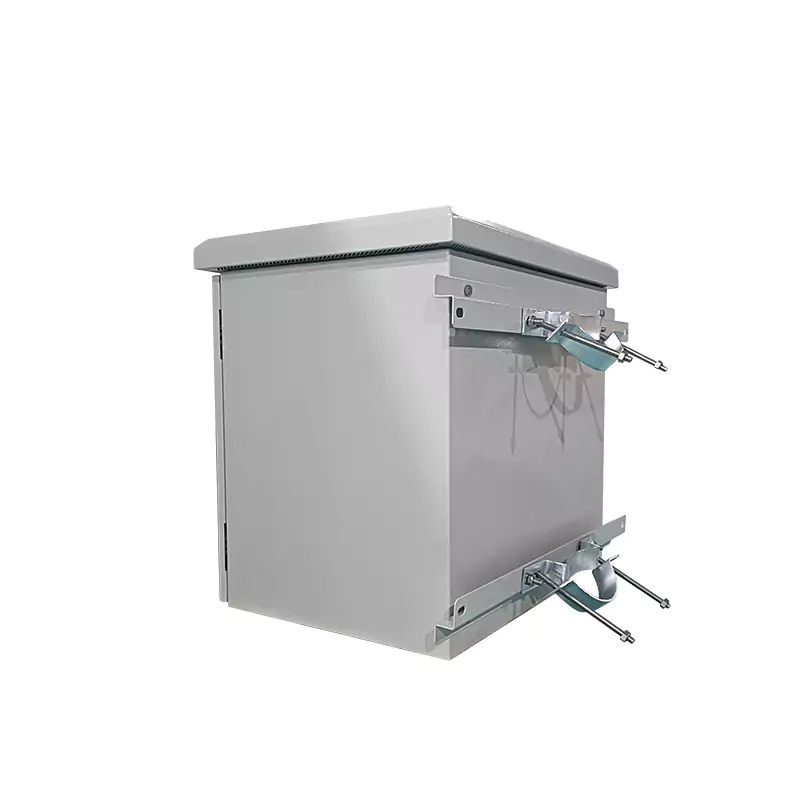

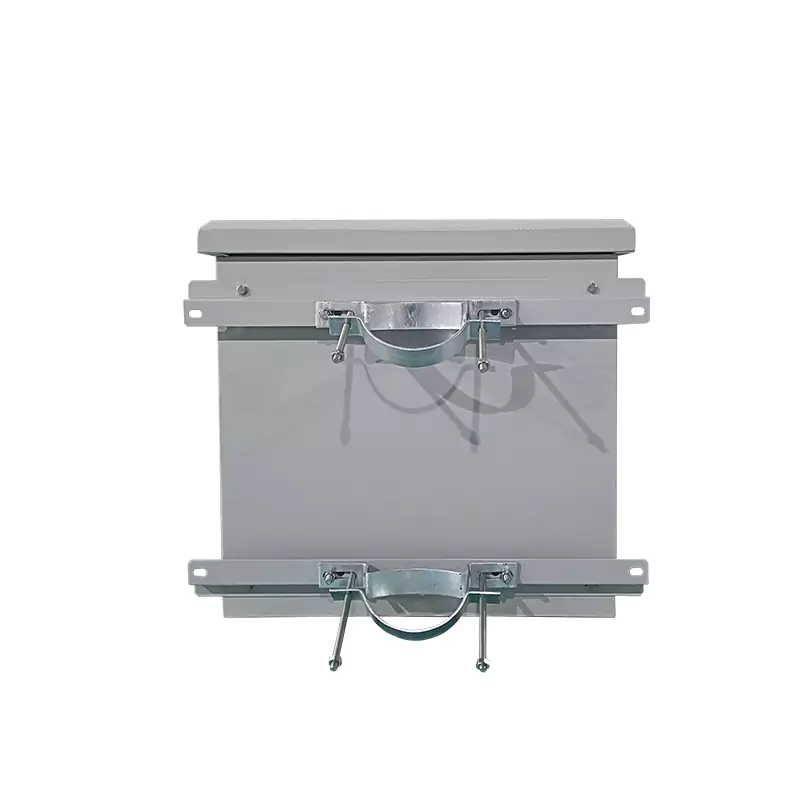

| Wall Mounting Bracket | Galvanised sheet metal, 2.0 mm thick, 700 mm long | |||||
| Support Bracket | Galvanised sheet 2.0 mm | |||||
| Lighting | AC 220V, 5W LED light, with access control switch | |||||
| Shelf | Cold-rolled steel plate 1.2 mm, load capacity 50 kg | |||||
| L-shaped Bracket | Cold-rolled steel sheet 1.5 mm | |||||
| Locks | Anti-theft structure, outdoor waterproof type, zinc alloy material, three-point fixed type | |||||
| Power Distribution Unit | Communication circuit breaker: Input 32A/2P*1, Output 10A/1P*3, Surge arrester 40KA*1 | |||||
| Monitoring Unit | 1. Can be connected to smoke detectors, door magnets, water immersion sensors, infrared sensors, etc. Environmental information can be viewed through the connection platform. Standard 1U rack installation. 2. Software can view collected data and alerts. | |||||
| Others | According to custom requirements | |||||
Note: Specifications are subject to change without prior notice for product improvement.
EPS foam boards are used, featuring low thermal conductivity and high strength.
Columns, shelves, L-shaped brackets, lighting fixtures, door magnetic sensors, and installation accessories.
Degreasing, acid washing, rust-proof phosphating, electrostatic powder coating, with the coating meeting the requirements of GB/T 3181-2008.
The cabinet is shipped fully assembled. Customers only need to secure the cabinet using the bottom mounting holes and install equipment in the reserved equipment space.
By standardizing the cabinet, common components are made into standard products. For non-standard orders, only the cabinet frame needs to be designed, and standard components can be assembled to complete the non-standard design, significantly reducing the non-standard design cycle and better meeting customer requirements for short delivery times.
Through analysis of standard modules, we have identified the most optimal solution, which can be implemented at the lowest possible cost. Factors such as materials, material thickness, surface treatment, manufacturability, installability, and versatility are all considered to achieve cost optimization while meeting customer requirements.
Primarily used in various outdoor environments such as walls, utility poles, and high/low-temperature conditions, providing outdoor operational environments and safety management for base stations.
