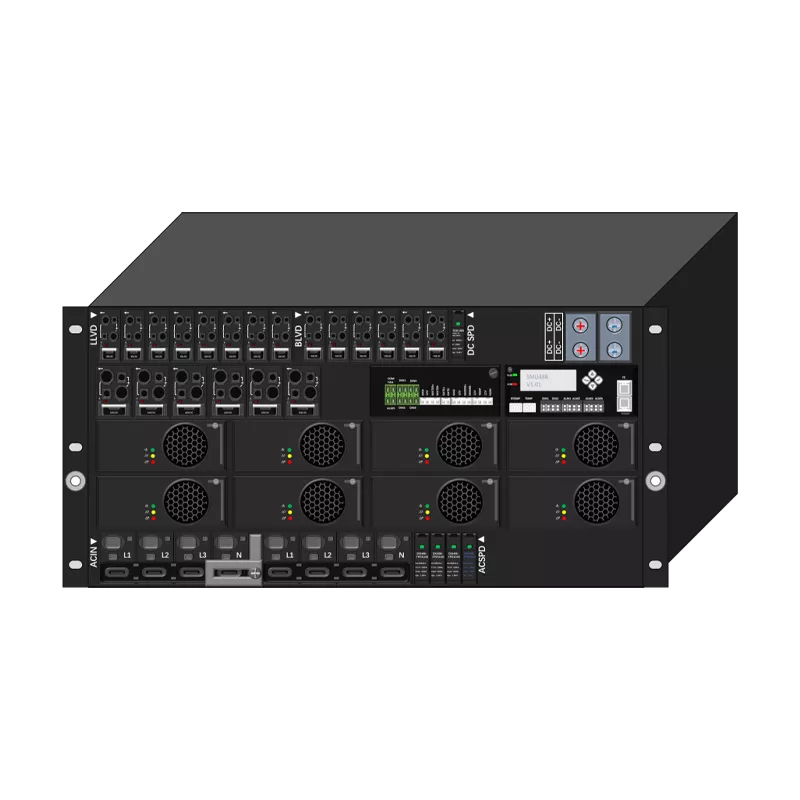

The Site Hybrid Power System is a next-generation multi-energy integrated power supply for 4G/5G base stations, communication equipment rooms, edge data centers, and outdoor compact sites. It breaks the traditional "single grid input, single DC output" architecture to achieve multi-source energy input + multi-voltage output + intelligent coordinated dispatch. At the site level, it accommodates grid power, PV, energy storage, diesel generators, and other sources, delivering a highly reliable, efficient, and simply deployable power framework for 5G equipment, transmission equipment, and IoT loads. Power range: 6 kW-36 kW; available in both 3U and 1U circuit breaker configurations.

  • Type :  Base Station Energy Storage

Send Message   Get Price

Parameters

Product Model HJ-48100A-H5D8B2 HJ-48200A-H5D8B2 HJ-48400A-H9D8B6 HJ-48600A-H10D8B6
Shelf/Frame System Dimensions (W × D × H) 482mm(W) × 365mm(D) × 222mm(H) 482mm(W) × 365mm(D) × 222mm(H) 482mm(W) × 365mm(D) × 400mm(H) 482mm(W) × 365mm(D) × 444mm(H)
Installation Mode 19-inch rack mount 19-inch rack mount 19-inch rack mount 19-inch rack mount
Cable Routing Front-in, front-out Front-in, front-out Front-in, front-out Front-in, front-out
Weight ≤20 kg (excluding modules) ≤20 kg (excluding modules) ≤20 kg (excluding modules) ≤20 kg (excluding modules)
Input Characteristics Input Voltage Three-phase four-wire 380V AC (compatible with single-phase 220V AC input) Three-phase four-wire 380V AC (compatible with single-phase 220V AC input) Three-phase four-wire 380V AC (compatible with single-phase 220V AC input) Three-phase four-wire 380V AC (compatible with single-phase 220V AC input)
Input Frequency 45~66Hz, Rated: 50/60Hz 45~66Hz, Rated: 50/60Hz 45~66Hz, Rated: 50/60Hz 45~66Hz, Rated: 50/60Hz
Input Capacity 2×63A/4P (mechanical interlock) 2×63A/4P (mechanical interlock) 2×100A/4P (mechanical interlock) 2×100A/4P (mechanical interlock)
AC Input Lightning Protection Level C Level C Level C Level C
Output Characteristics Output Voltage 43.2V DC ~ 58V DC (default 53.5V DC) 43.2V DC ~ 58V DC (default 53.5V DC) 43.2V DC ~ 58V DC (default 53.5V DC) 43.2V DC ~ 58V DC (default 53.5V DC)
Rated Output Power 18000W (176VAC~300VAC) 18000W (176VAC~300VAC) 24000W (176VAC~300VAC) 36000W (176VAC~300VAC)
9000W~18000W (85VDC~175VDC, linear derating) 9000W~18000W (85VDC~175VDC, linear derating) 12000W~24000W (85VDC~175VDC, linear derating) 18000W~36000W (85VDC~175VDC, linear derating)
Peak Efficiency 96% 96% 96% 96%
Rated Output Current 300A (max) 300A (max) 400A (max) 600A (max)
Module Slots 6 groups 6 groups 8 groups 12 groups
Voltage Regulation Accuracy ≤±0.6% ≤±0.6% ≤±0.6% ≤±0.6%
Output Interface Primary power-off: 5×63A/1P Primary power-off: 5×63A/1P Primary power-off: 8×63A/1P Primary power-off: 8×63A/1P
Secondary power-off: 3×63A/1P Secondary power-off: 3×63A/1P Secondary power-off: 6×63A/1P Secondary power-off: 6×63A/1P
Battery Interface Battery: 2×125A/1P Battery: 2×125A/1P Battery: 6×125A/1P Battery: 6×125A/1P
DC Output Lightning Protection Level C Level C Level C Level C
Extended DC Interface Copper busbar: 100A Copper busbar: 300A Copper busbar: 300A Copper busbar: 300A

Note: Specifications are subject to change without prior notice for product improvement. Data Sheet

Feature

  • Supports parallel access of 'Grid + PV + Energy Storage + Diesel Generator' - a true 'Energy Router' capability compatible with both grid-connected and off-grid modes, completely eliminating reliance on the utility grid alone

  • Direct PV stacking technology

    built-in high-efficiency MPPT stacked-PV controller injects PV DC power directly onto the −48V DC busbar with no inversion stage, maximizing renewable energy utilization and supporting green carbon reduction

  • Seamless multi-energy coordination

    intelligent dispatch of grid power, PV, energy storage, and diesel generators prioritizes clean PV energy; surplus power is stored; when grid power is insufficient or interrupted, energy storage provides millisecond-level compensation, and the diesel generator auto-starts in extreme conditions - achieving efficient energy distribution

  • Compatible with weak-grid/off-grid scenarios

    adapts to weak-grid environments with large voltage fluctuations and supports off-grid operation. Combined with PV + energy storage + diesel generator, it enables 24-hour uninterrupted power supply at remote, off-grid sites

Application

The Base Station Hybrid Energy System is an embedded power system designed for multi-industry site energy scenarios. It is optimized for the energy needs of all types of communication base stations - new-build sites and PV stacking retrofits alike - especially suited for indoor power cabinets, outdoor power cabinets, and pole-mount micro-station cabinets in compact site deployments.

View Case Studies

Solution

Telecom Solar Power Systems

From urban core data centers to remote, off-grid regions, Huijue site power solutions cover a comprehensive range of complex application scenarios worldwide.

View More

Standard Site Energy System

Standard Site Energy System is an integrated and intelligent core equipment of the telecom power system, widely used in mobile base stations, data centers, and other scenarios. It integrates power supply, power distribution, backup power, protection, and monitoring into one unit, providing stable and reliable -48V DC power and backup battery systems for communication equipment. To cope with the problem of no or difficult grid access for base stations, and in line with the policy trend of energy saving and emission reduction, Huijue Group(HJ Group) has launched an innovative base station energy solution. The solution adopts new energy (wind and diesel energy storage) technology to provide a reliable guarantee for the stable operation of communication base stations. By integrating renewable energy sources such as wind and light energy, with intelligent energy storage system and high efficiency diesel power generation as a supplement, a set of stable, efficient and green energy supply system is constructed, which can satisfy the power demand of telecommunication base stations and help the telecommunication industry to continue to develop stably in the tide of energy saving and emission reduction at the same time.

View More

Compact Communication Site

Compact Communication Site is an integrated and intelligent core equipment of the telecom power system, widely used in mobile base stations, data centers, and other scenarios.

View More

Hybrid Energy Communication Site

It covers all-scenario power equipment including integrated power supplies, AC-DC converters, outdoor 5G power boxes, indoor/outdoor hybrid energy cabinets, and equipment room power cabinets. It fully supports new energy sources such as PV and wind power, building a hybrid power distribution system of "New Energy + Grid Power + Energy Storage.

View More

Base Station Equipment Room Energy Scenario

Site hybrid energy series focuses on green, efficient, reliable, and intelligent power solutions. It includes integrated supplies, AC-DC converters, 5G power boxes, and hybrid cabinets, supporting PV, wind, and energy storage to create a flexible "New Energy + Grid + Storage" system.

View More

Base station stacked photovoltaic system

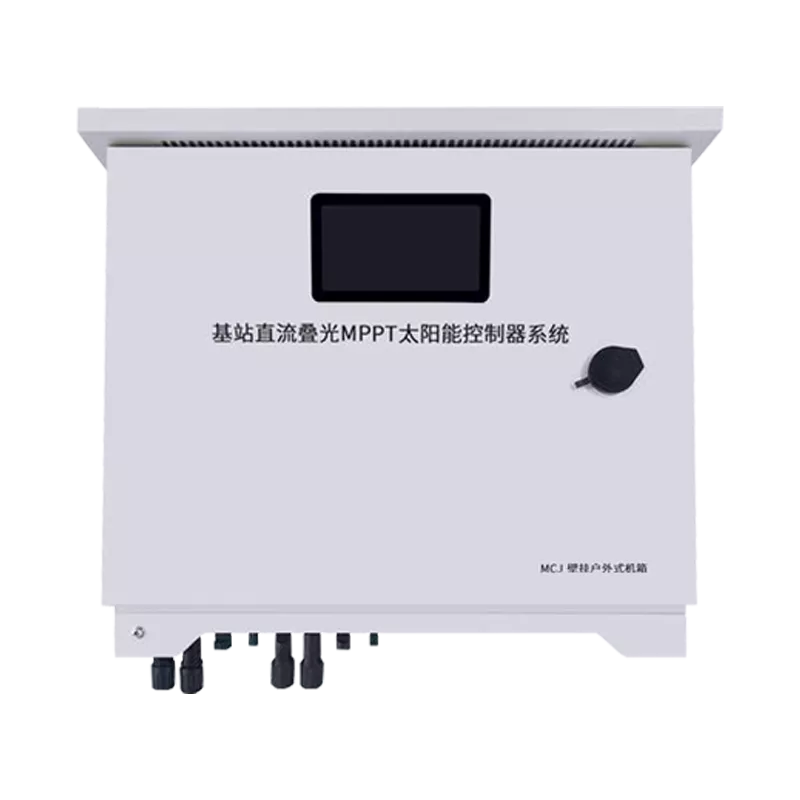

Stacked MPPT photovoltaic controller expands PV capacity for base stations. Series-connected PV modules feed the controller, output -48V DC to loads. Supports wall/pole mounting; available in Outdoor and Rack-mount types.
