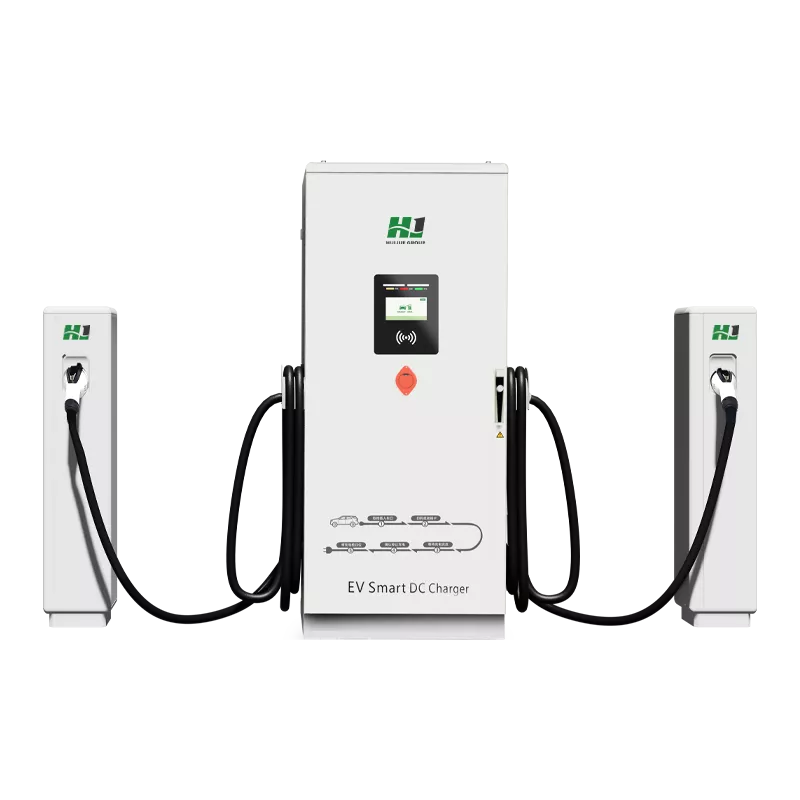

HJ DC charging piles adopt galvanized sheet metal process, offering excellent safety protection with strong anti-oxidation and corrosion resistance. The modular design with low-power contactors ensures efficient compatibility with multiple charging platforms.
| Appearance structure | Product Model | HJ-EVZ-DC160-F-4（Z-9） |
| Weight | 393kg | |
| Shell Material | Sheet metal | |
| Installation | Floor-standing | |
| Dimensions | L1350*W990*H1900mm | |
| Length of the charigng gun | Quad guns / Standard 5m (customizable) | |
| Wiring method | Bottom in and bottom out | |
| Electrical specifications | Input voltage | AC 260-485V/46 |
| Input frequency | 46-63Hz | |
| Output voltage | High Voltage Mode HV (200–1000) Vdc Low Voltage Mode LV (150–500) Vdc |
|
| Measurement accuracy | Class 1 | |
| Maximum output current | Single gun 250A | |
| Output power | 160kW | |
| Output current | 250A | |
| Efficiency | ≥95% | |
| Power Factor (PF) | ≥0.98 | |
| Environmental indicators | Applicable Scene | indoor/outdoor |
| Operating Tenperature | 20℃~+55℃,5%~95%(Non-condensing) | |
| Altitude | ≤2000m | |
| Cooling Patterns | Intelligent air cooling | |
| Storage Environment | 30℃~+70℃,5%~95%(Non-condensing) | |
| Ingress Protection | IP54 | |
| Safety design | Overvoltage protection, undervoltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, anti-theft design, lightning protection/smart electricity meter/(optional) | |
| Functional design | 4G communication, mobile payment, back-end monitoring, voice announcement, QR code charging, card swipe charging, LED indication, LCD display | |
Note: Specifications are subject to change without prior notice for product improvement.
Employing galvanized sheet metal process, which enhances anti-oxidation and corrosion resistance by 2-3 times.
Equipped with standard 1000V modules supporting 800V charging platforms, and standard AC contactors with low power consumption.
Features a pluggable control module. The integrated design ensures more stable operation and high reliability of the charging pile.
Highly compatible, integrating Ethernet and 4G communication. Supports multiple platforms and is compatible with modules from various brands.
Drives profitability through multi-platform traffic guidance powered by technology. Provides 24/7 customer service technical support and operational guidance.
Covers all vehicle types: applicable to 100% of vehicle models. Service vehicles include official vehicles, taxis, commercial vehicles, etc.
