Satellite Communication Energy Cabinet
Satellite Communication Energy Cabinet

Satellite Communication Energy Cabinet

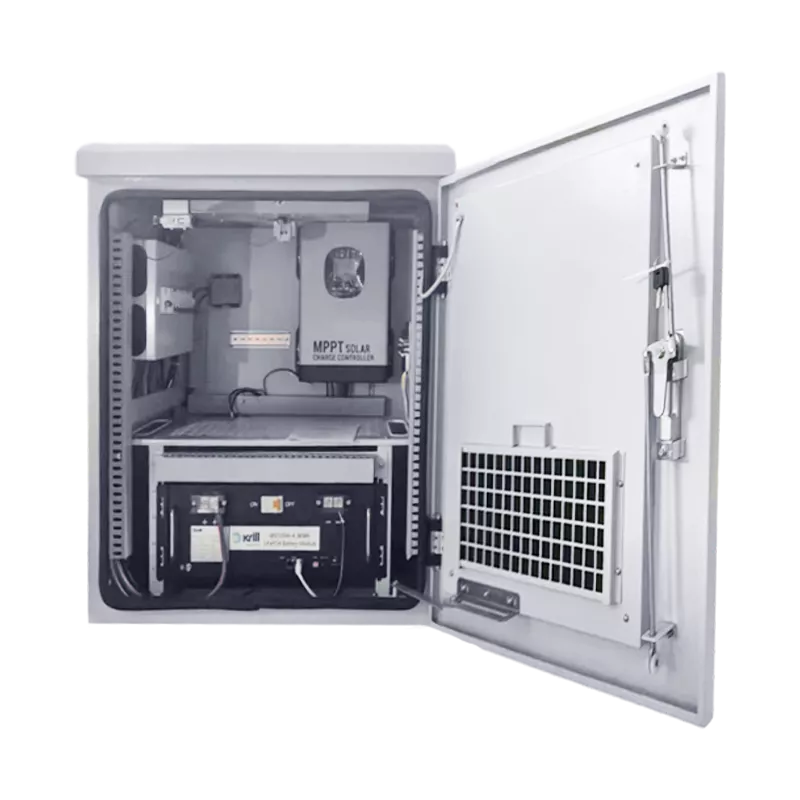

The Satellite Communication Energy Cabinet is a PV energy storage cabinet from Highjoule Technology Group designed specifically for off-grid satellite communication sites. The system consists of PV modules, an MPPT solar controller, an LFP (Lithium Iron Phosphate) battery pack, a thermal management system, and a power distribution unit, forming a complete off-grid PV generation and energy storage system that provides stable power to satellite communication base stations. The system adopts a modular design and can be efficiently operated and maintained via local and remote monitoring. It supplies 48V DC and AC 120V-200V power to satellite and other industry communication equipment, supporting floor-standing and pole-mount installation.

  • Type :  Base Station Energy Storage
  • Power :  1000W/3000W

Send Message   Get Price

Parameters

Model HJ-PS-0105K HJ-PS-0315K
Capacity 1000W 3000W
MPPT Capacity Max. 30A Max. 80A
Dimensions 750(H)*700(W)*625(D)mm 1600(H)*600(W)*600(D)mm
PV Input 32A/2P*1 32A/2P*1
Lightning Protection Device PV DC lightning protection
DC Output DC 48V (Max. 1000W) DC 48V (Max. 3000W)
AC Output AC 110V (Max. 300W) AC 110V (Max. 500W)
Battery Interface 1× battery interface
Lithium Battery Includes 1-4× 100Ah lithium batteries
Protection Rating IP55/IP20

Note: Specifications are subject to change without prior notice for product improvement. Data Sheet

Feature

  • Simple installation supporting floor-standing, pole-mount, and other configurations

  • Can integrate a monitoring unit and connect to O&M management platforms via wireless networking

  • Available in indoor and outdoor versions, suitable for a variety of environmental conditions

  • Designed for fully off-grid scenarios; generates power from PV renewable energy with zero carbon emissions

Application

Primarily suited for satellite communication base station deployments in carrier networks including street-pole coverage, indoor distributed base station coverage, remote field site scenarios, rooftop base station coverage, and outdoor environments. Features short construction periods and low build costs.
