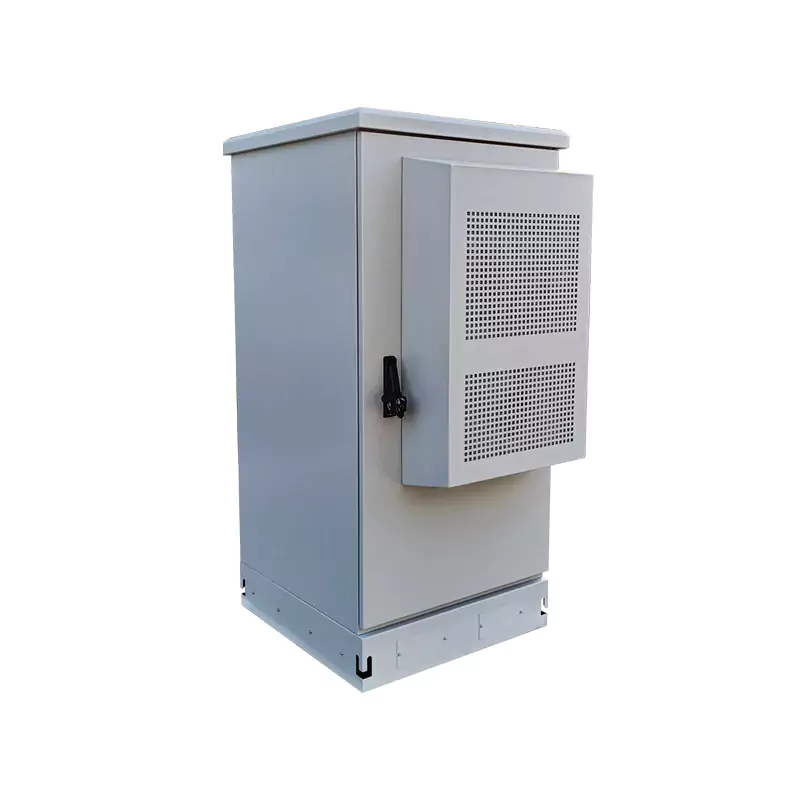

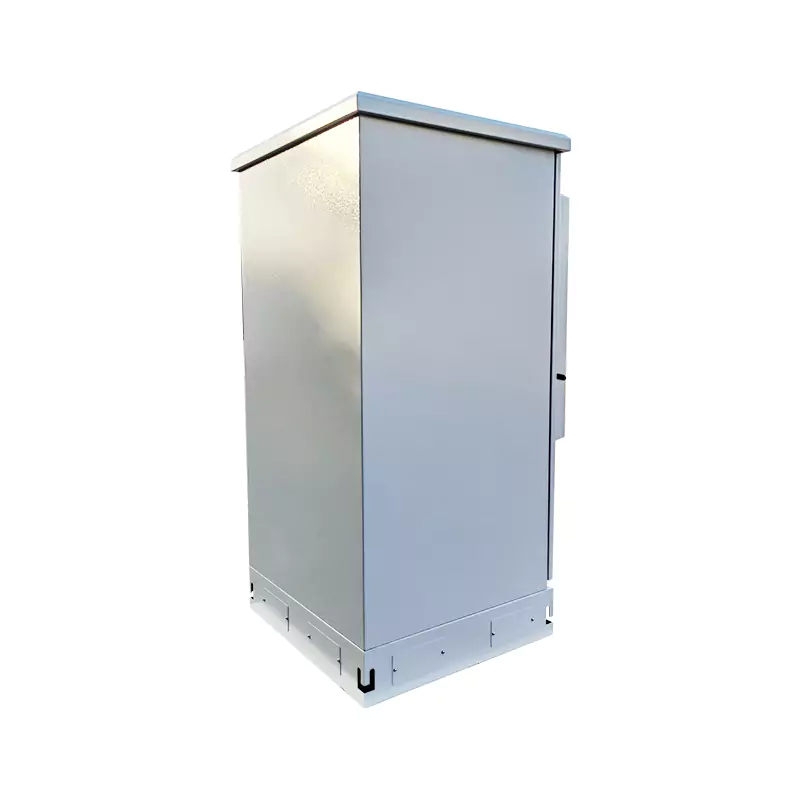

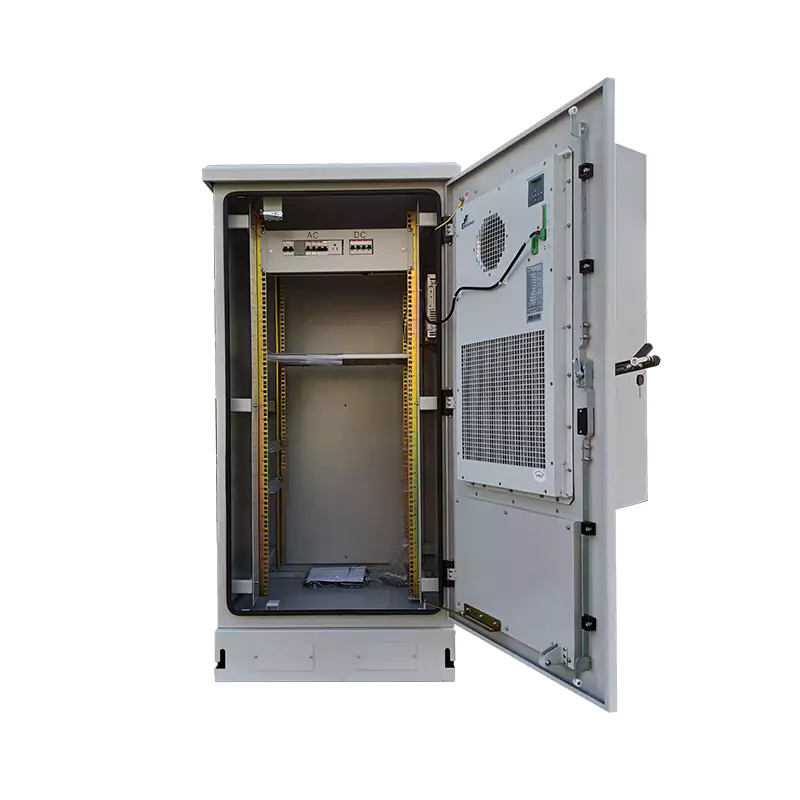

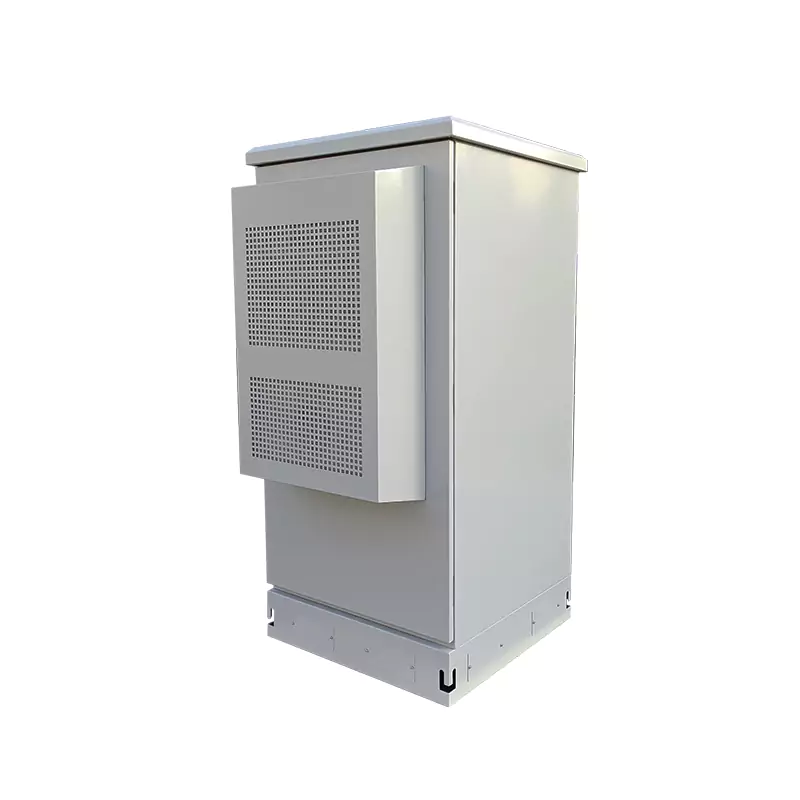

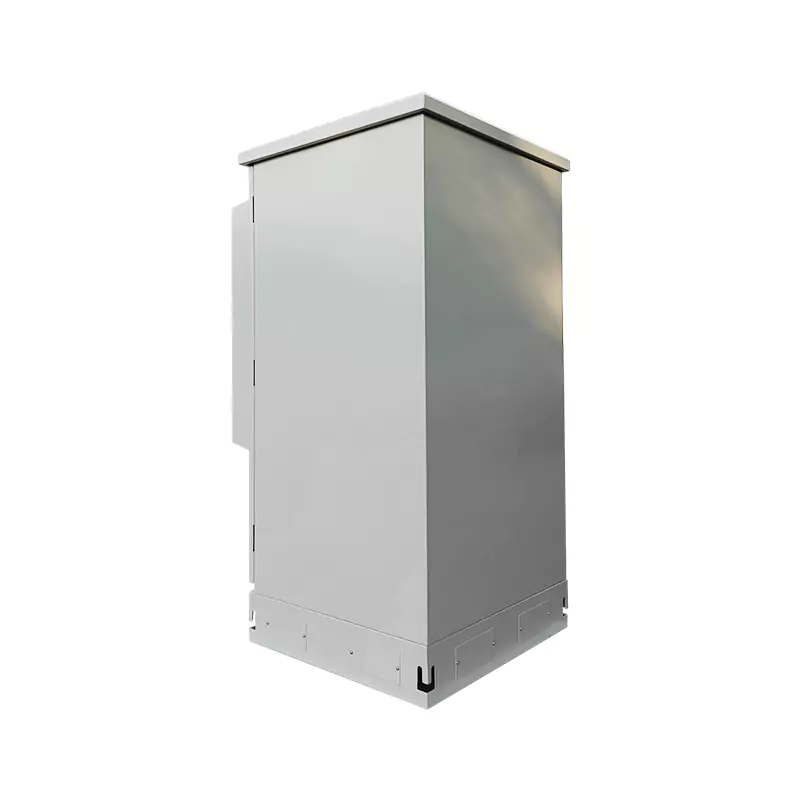

The floor-standing outdoor integrated cabinet is an outdoor integrated cabinet constructed using high-quality metal sheet materials. It integrates professional equipment, network communication devices, system power supplies, AC/DC power distribution, monitoring systems, temperature control equipment, battery systems, and lightning protection grounding, providing an integrated cabinet that offers an outdoor working environment and safety management for base stations.
| Product Model | HJ-OFVD27-01 | HJ-OFAD27-01 | HJ-OFVD27-02 | HJ-OFAD27-02 |
| Rack Capacity | 27U，19″rack | |||
| Temperature Control Equipment | AC220V fan type (2 per set at the top) | AC220V 600W air conditioner type | AC220V fan type (2 per set at the top) | AC220V 600W air conditioner type |
| Specifications (Height x Width x Depth mm) | 1500-650-650 (100mm base) | 1500-650-650 (100mm base) | 1500-650-650 (100mm base) | 1500-650-650 (100mm base) |
| Main Configuration | Double-layer 20 mm EPS structure, front and rear doors | Double-layer 20 mm EPS structure, front door | ||
| Lighting | AC 220V, 5W LED light, with access control switch | |||
| Shelves | Cold-rolled steel plate 1.2mm, load capacity 50KG | |||
| L-shaped Brackets | Cold-rolled steel plate 1.5mm thick | |||
| Base | 1.5mm thick | |||
| Locks | Anti-theft structure, outdoor waterproof type, zinc alloy material, three-point fixed design | |||
| Power Distribution Unit | AC circuit breaker: Input 32A/2P*1, Output 10A/1P*3, Surge protector 40KA*1 | |||
| Packaging Method | Carton + wooden pallet | |||
Note: Specifications are subject to change without prior notice for product improvement.
EPS foam boards are used, featuring low thermal conductivity and high strength.
Columns, shelves, L-shaped brackets, lighting fixtures, door magnetic sensors, and installation accessories.
Circuit breakers, lightning arresters, sockets, switching power supplies, batteries, UPS, monitoring units, etc.
The cabinet is shipped fully assembled. Customers only need to secure the cabinet using the bottom mounting holes and install equipment in the reserved equipment space.
By standardizing the cabinet, common components are made into standard products. For non-standard orders, only the cabinet frame needs to be designed, and standard components can be assembled to complete the non-standard design, significantly reducing the non-standard design cycle and better meeting customer requirements for short delivery times.
Through analysis of standard modules, we have identified the most optimal solution, which can be implemented at the lowest possible cost. Factors such as materials, material thickness, surface treatment, manufacturability, installability, and versatility are all considered to achieve cost optimization while meeting customer requirements.
Primarily used in various outdoor environments such as rooftops, street sides, mountainous areas, railway lines, and high/low-temperature environments.
