Utilizes high-quality lithium iron phosphate battery cells, certified by international safety standards including MSDS, UN38.3, ROHS, IEC62619, and UL, with a cycle life exceeding 6,000 cycles.
Features an integrated intelligent BMS that monitors individual cell voltage, current, and temperature, and includes overcharge, over-discharge, overcurrent, temperature protection, and active balancing functions to ensure cell consistency and extended service life.
Supports up to 16 battery modules in parallel for scalability, flexibly adapting to different power and capacity requirements.
Low-power architecture with no relays, achieving standby power consumption as low as milliwatt level, enhancing overall energy efficiency.

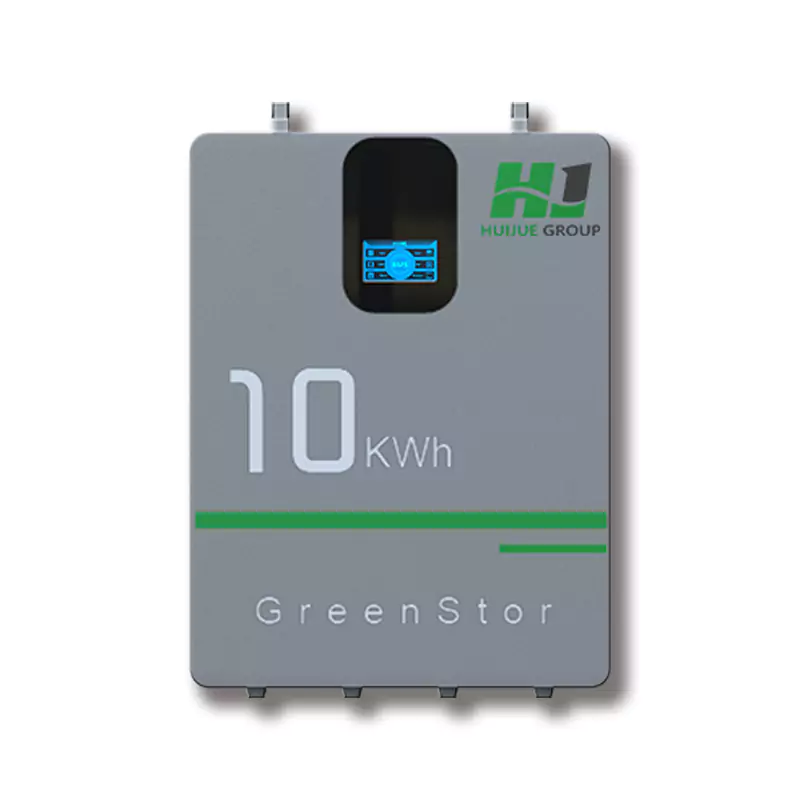

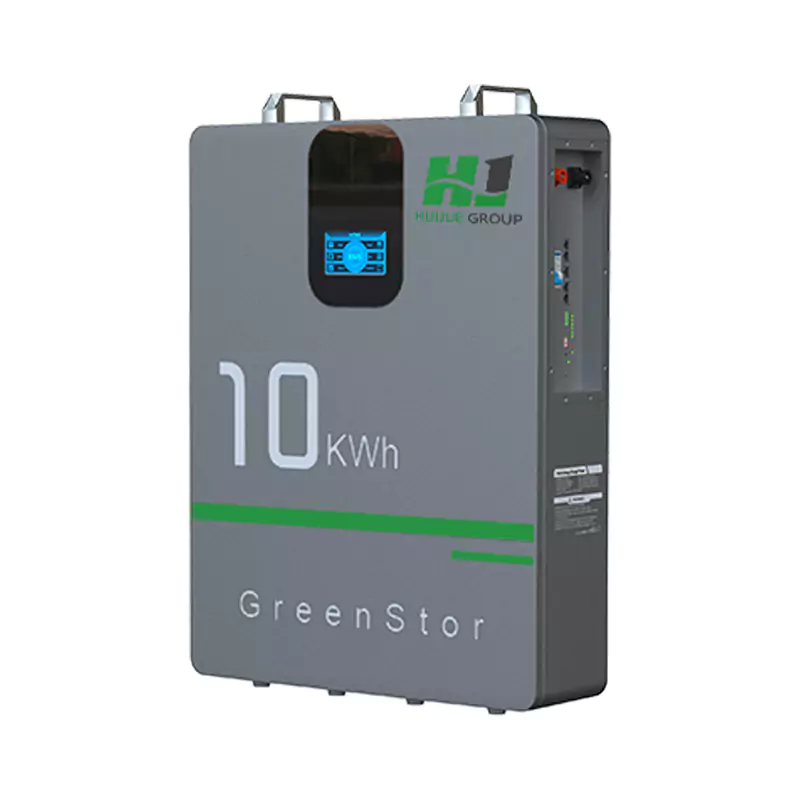

| Product model | HJ-HBL48202W |
|---|---|
| Battery cell | LiFePO4 |
| Maximum continuous discharge current | 100A |
| Available capacity | 10240Wh |
| Rated voltage | 51.2VDC |
| Voltage range | 40～58.4V |
| Maximum charging voltage | 58.4V |
| Recommended charging current | 40A |
| Cycle life (standard charge/discharge at room temperature) | ≥5000 times |
| Communication | Standard configuration RS485、CAN |
| Battery discharge depth (DOD) | ≥95% |
| Protection features | |
| Charging current limiting function | 10A |
| Charge/discharge overcurrent long-delay protection | 105A |
| Discharge overcurrent instantaneous protection | 300A±10A 1S |
| Cell temperature protection | Charge: 0C~45℃，Discharge: -20℃-60℃ |
| Weight (net weight, for reference) KG | 83kg |
| Depth × Width × Height (mm) | 725*550*162±2mm(No hanging hook included) |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet

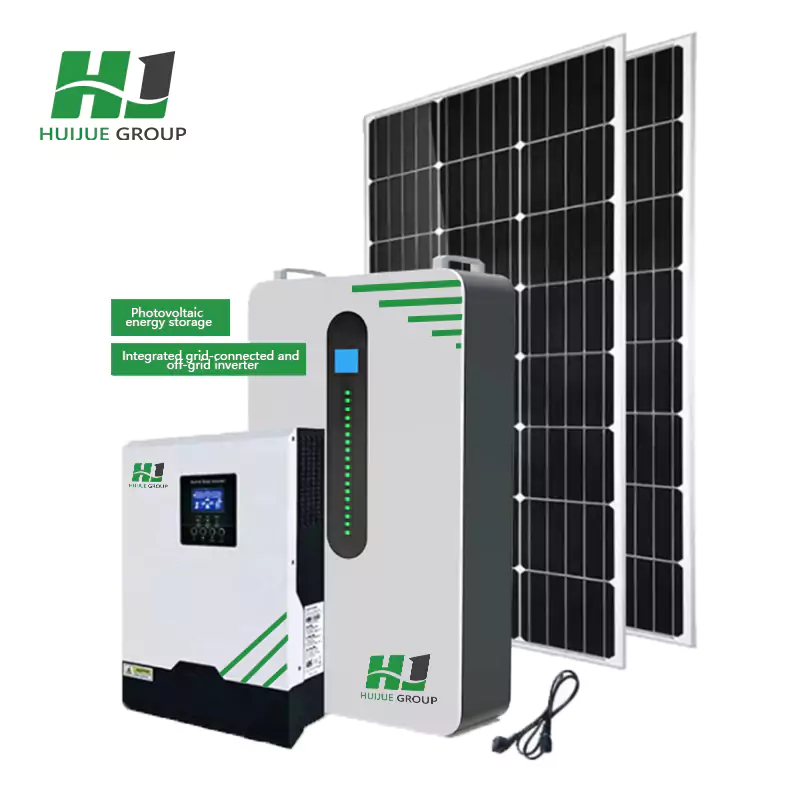

Solution for various scenarios such as residential, commercial, and industrial applications, ensuring stable operation of equipment and efficient use of energy.
