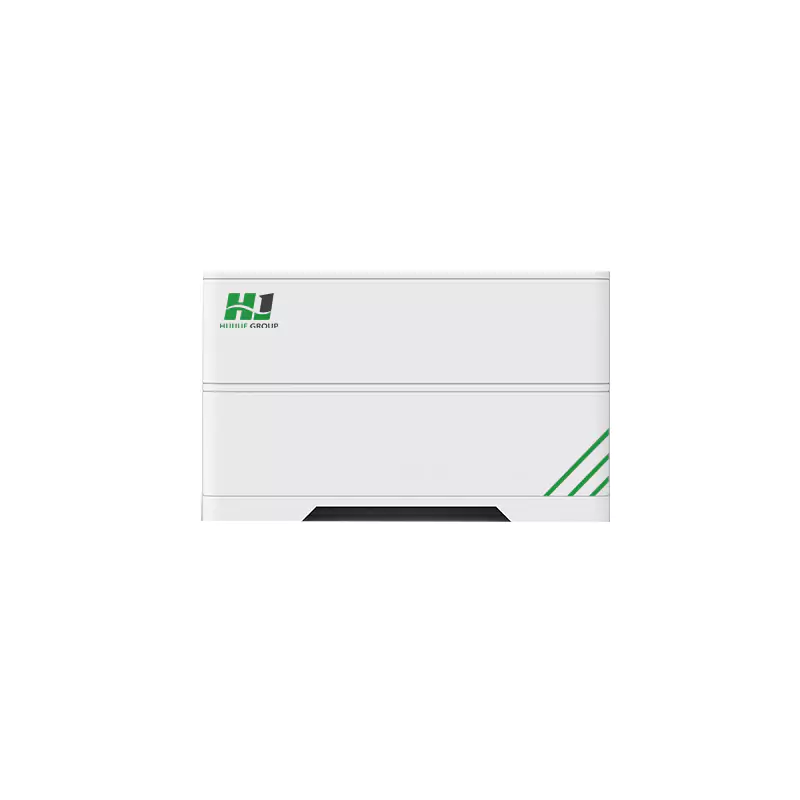

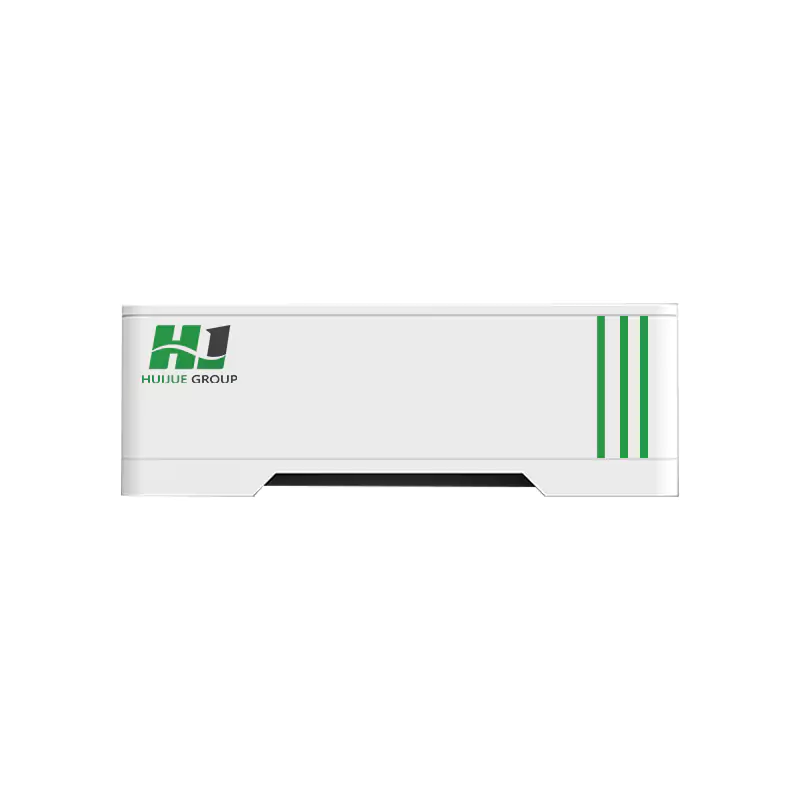

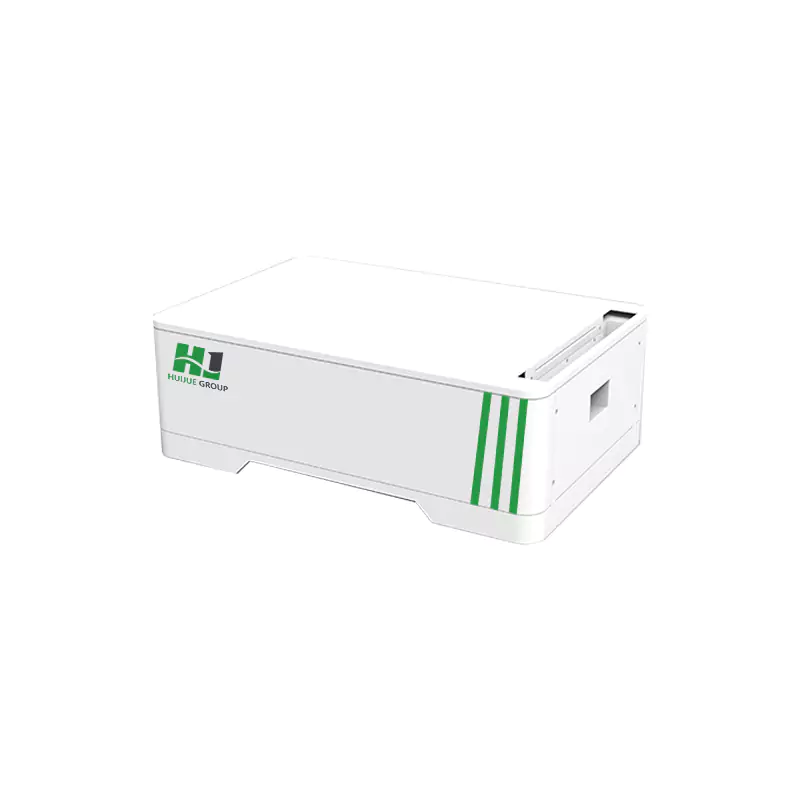

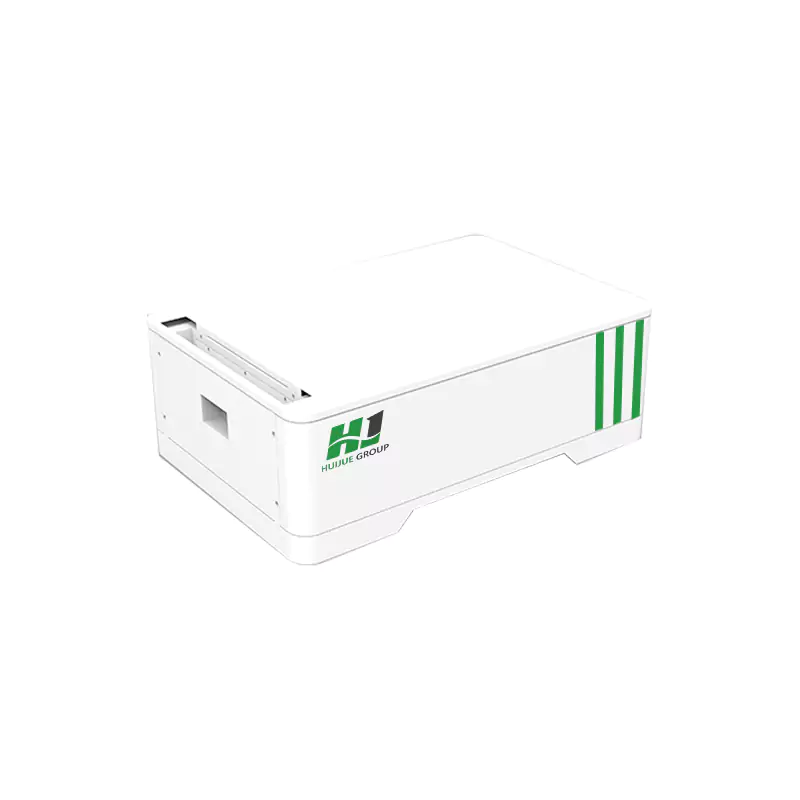

The stackable lithium-ion battery is a high-performance battery product specifically designed for flexible expansion of energy storage capacity. It employs advanced lithium-ion battery technology combined with a modular design concept, enabling flexible stacking and combination according to user needs to achieve free expansion of capacity. This battery not only features efficient energy storage and release capabilities but also ensures safe and stable operation through an intelligent management system.
| Product model | HJ-HBL48101S(B-33) |
| Array mode | 16S1P |
| Rated capacity | 100Ah |
| Minimum capacity | ≥100Ah |
| Capacity | 5.12kWh |
| Operating voltage | 40 – 58.4V |
| Rated voltage | 51.2V |
| Resistance | ≤30mΩ（Max） |
| Charge voltage | 58.4V |
| Discharge cut – off voltage | 40V |
| Standard charging current | 40A |
| Standard discharging current | 50A |
| Max continuous discharge current | 100A |
| Communication port | RS485/CAN |
| Light | |
| Cycle life | 3000 cycles @70%SOH |
| Operating temperature | charge：0℃～50℃； discharge：-20℃～70℃ |
| Storage temperature | ‘-20℃-50℃ Recommend（25±5℃） |
| Net weight | 56.6 kg |
| Net size (WDH) | 610*530*190mm |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet

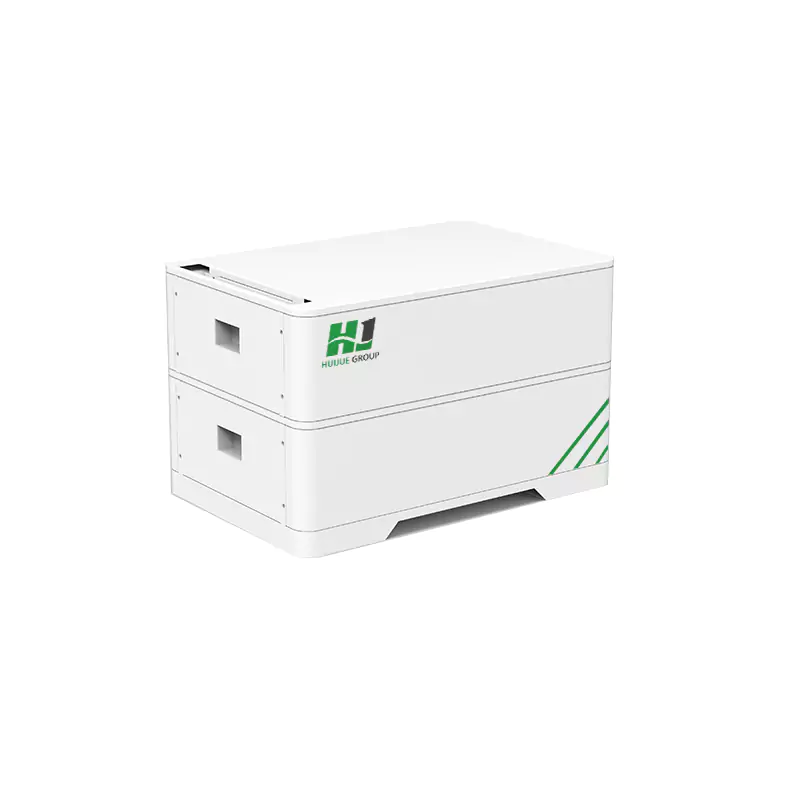

Battery modules are independently designed and can be freely stacked, allowing users to gradually increase capacity according to actual needs without the need for a large upfront investment.
After rigorous testing, the battery can withstand thousands of charge-discharge cycles, offering a long service life and reducing long-term usage costs.
Supports high-rate charging and discharging, enabling rapid charging or the release of large amounts of energy in a short time, meeting the rapid response requirements of various scenarios.
The battery management system automatically monitors battery status, eliminating the need for frequent inspections and maintenance, thereby reducing operational costs.
Stackable lithium-ion batteries offer users an efficient, reliable, and cost-effective energy storage solution with their flexible scalability, high performance, and intelligent management. They can meet diverse energy needs across residential, commercial, and industrial applications.
