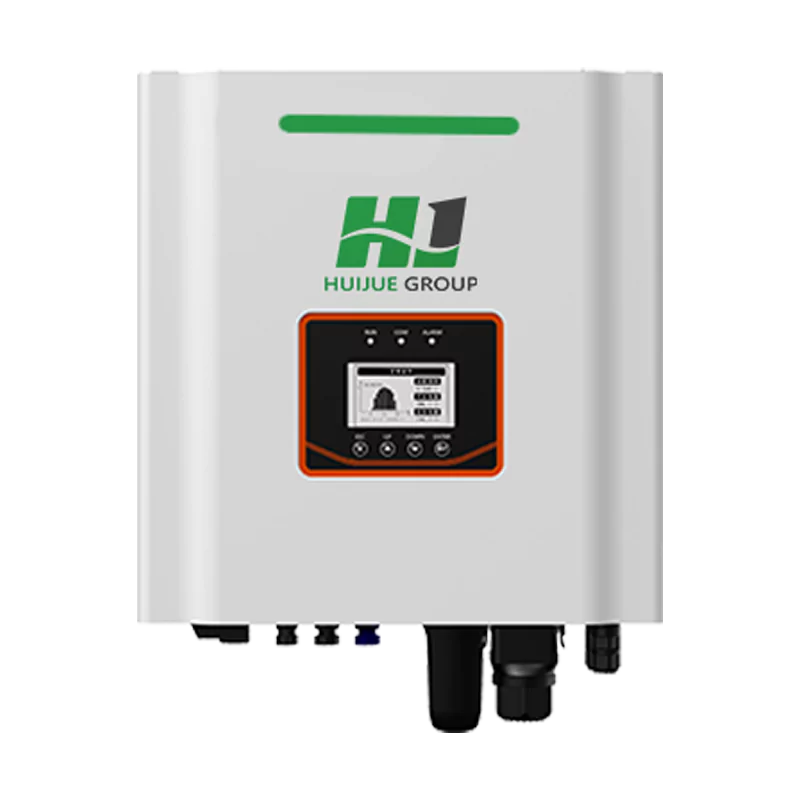

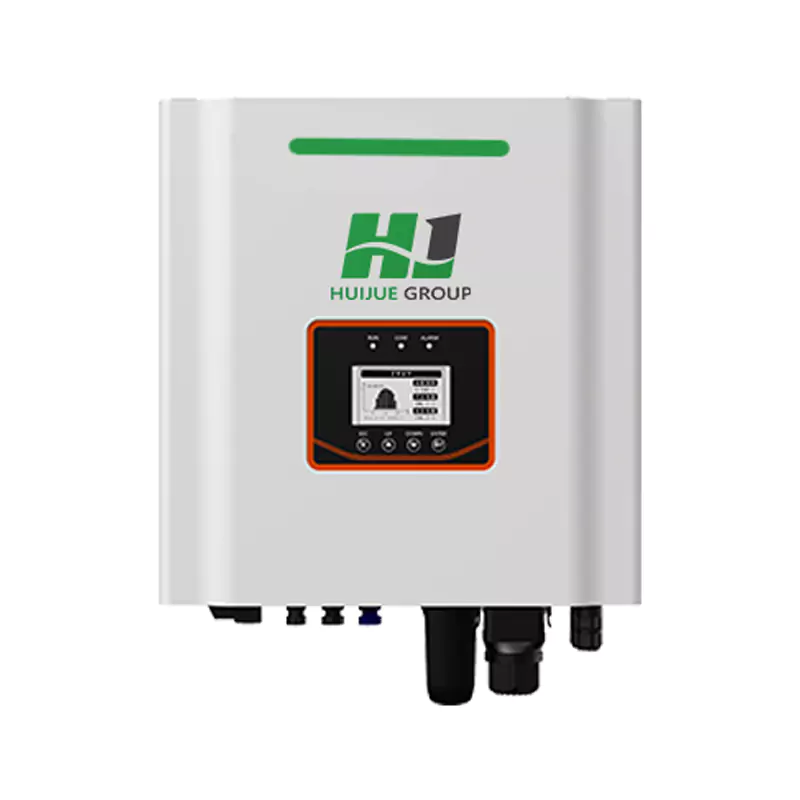

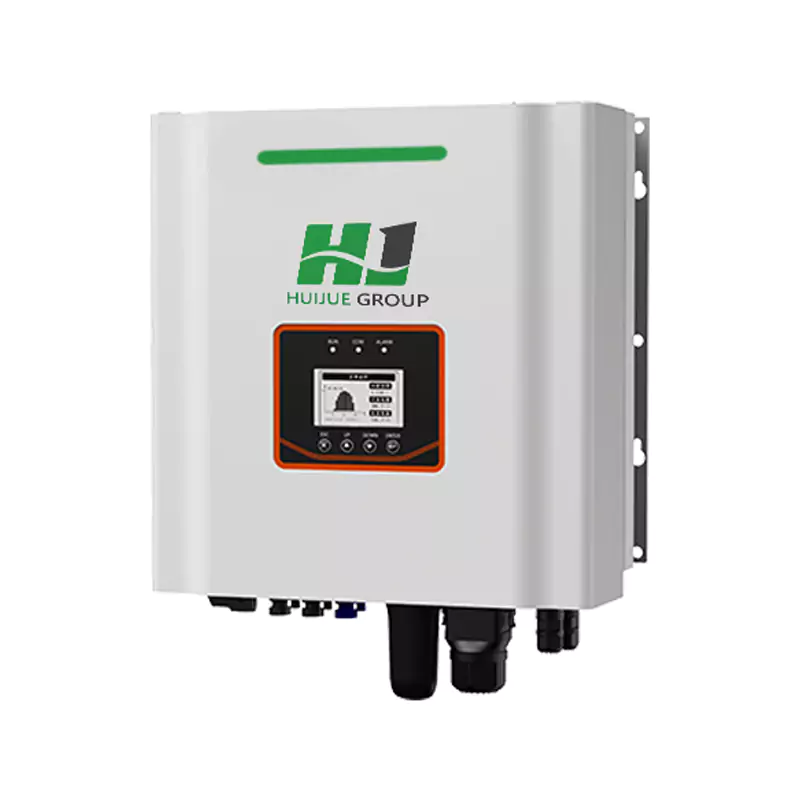

Integrated PV and energy storage, supporting a variety of batteries.
Support emergency power supply,and seamless off-grid switching.
Ultra-wide PV voltage range 80V-500V, battery ultra-wide voltage range 85V-450V.
IP65 protection grade, high power quality, does not interfere with electrical equipment, ultra-low radiation.
Lightweight body,easy installation, ultra-quiet design, flexible communication mode.
Maximum efficiency 97.8%,intelligent MPPT algorithm tracking efficiency up to 99.99%.
| Product model | HJ-IH03-W500S | HJ-IH04-W500S | HJ-IH05-W500S | HJ-IH06-W500S | HJ-IH07-W500S | HJ-IH08-W500S |
| PV Input Date | ||||||
| Max, Input Power | 4500W | 6300M | 75O0M | 9000W | 10500W | 12000W |
| Max.Input Voltage | 600V | 900A | 900A | 900A | 900A | 600V |
| MPPT Operating Voltage Range | 80-500A | |||||
| Start-up Voltage | 60A | |||||
| Nominal Input Voltage | 360A | |||||
| Max.Input Current | 16A | |||||
| Max.Short Circuit Current | 25A | |||||
| Number of MPPT Trackers | 2 | |||||
| Number of Strings Per MPPT | 1/1 | |||||
| Battery Input Data | ||||||
| Battery Voltage Range | 85-450V | |||||
| Max.Charge/Discharge Current | 30A/30A | |||||
| Max.Charge/Discharge Power | 3000W/3000W | 4200W/4200W | 5000W/5000W | 6000W/6000W | 7000W/7000W | 8000W/8000W |
| Battery Type | Li-ion/Lead-acid | |||||
| AC Output Data(On-grid) | ||||||
| Nominal Output Power | 3000W | 4200W | 5000W | 6000W | 7000W | 8000W |
| Max.Apparent Power | 3000VA | 4200VA | 5000VA | 6000VA | 7000VA | 8000VA |
| Nominal Output Voltage | 230V | |||||
| Nominal Output Frequency | 50Hz/60Hz | |||||
| Max.Output Current | 13A | 18.3A | 21.7A | 26A | 30.4A | 34.8A |
| Power Factor | ~1(0.8 lead to 0.8 lag can be set) | |||||
| Total Harmonic Distortion AC Output Data(Back-up) |
<3% | |||||
| Nominal Output Power | 3000W | 4200W | 5000W | 6000W | 7000W | 8000W |
| Max,Output Power | 3000W | 4200W | 5000W | 6000W | 7000W | 8000W |
| Nominal Output Voltage | 230V | |||||
| Max.Output Current | 13A | 18.3A | 21.7A | 26A | 30.4A | 34.8A |
| Nominal Output Frequency | 50Hz/60Hz | |||||
| Efficiency | ||||||
| Max.Efficiency | 97.50% | 97.80% | ||||
| European Efficiency | 97.10% | |||||
| Protection | ||||||
| Insulation Protection | Integrated | |||||
| Residual Current Monitoring | Integrated | |||||
| PV Reverse Polarity Protection | Integrated | |||||
| Anti-islanding Protection | Integrated | |||||
| Overcurrent Protection | Integrated | |||||
| DC component Protection | Integrated | |||||
| DC Surge Protection | Type II | |||||
| AC Surge Protection | Type III | |||||
| General Data | ||||||
| Operating Temperature Range | -25℃-60℃(>45℃ Derating) | |||||
| Altitude | <3000m | |||||
| Noise Emission | <40dB | |||||
| Topology | Transformerless Isolation | |||||
| Cooling | Natural Convection | |||||
| Ingress Protection Rating | IP65 | |||||
| Relative Humidity | 0-90% | |||||
| Display | LCD,WIFi+APP | |||||
| Communication | WIFi/RS485/GPRS | |||||
| Communication with Meter | CT/METER | |||||
| Installation | Wall-mounted | |||||
| Self-consumption at Night | <10W | |||||
| Dimension (W*D*H) | 390*192*407mm | |||||
| Weight | 17kg | |||||
| Certification | ||||||
| Safety Standards | IEC62109-1/2 | |||||
| EMC Strandards | EN IEC 61000-6-1,-3 | |||||
| On-grid Standard | NRS097-2-1:2017,CEI 0-21,UNE 217001/ UNE 217002/NTS631 | |||||
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Residential Solar Systems: Ideal for homes seeking to reduce electricity bills while maintaining power supply during outages.
Commercial Buildings: Provides reliable energy management for offices, optimizing the use of solar energy and battery storage to reduce operational costs.
Off-Grid Systems: Suitable for remote residential areas with no grid access, ensuring reliable energy production and storage.
