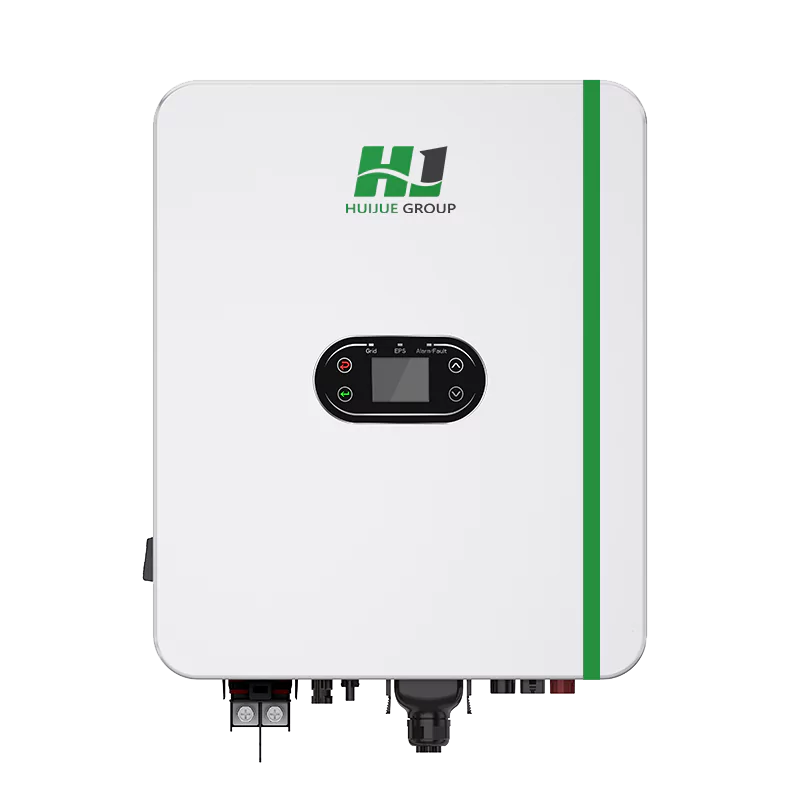

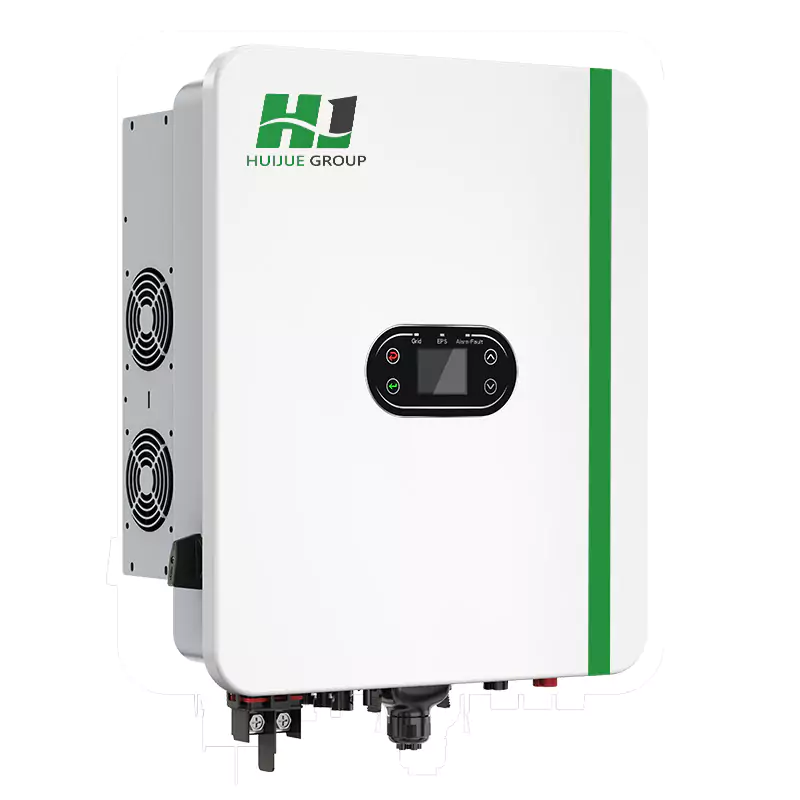

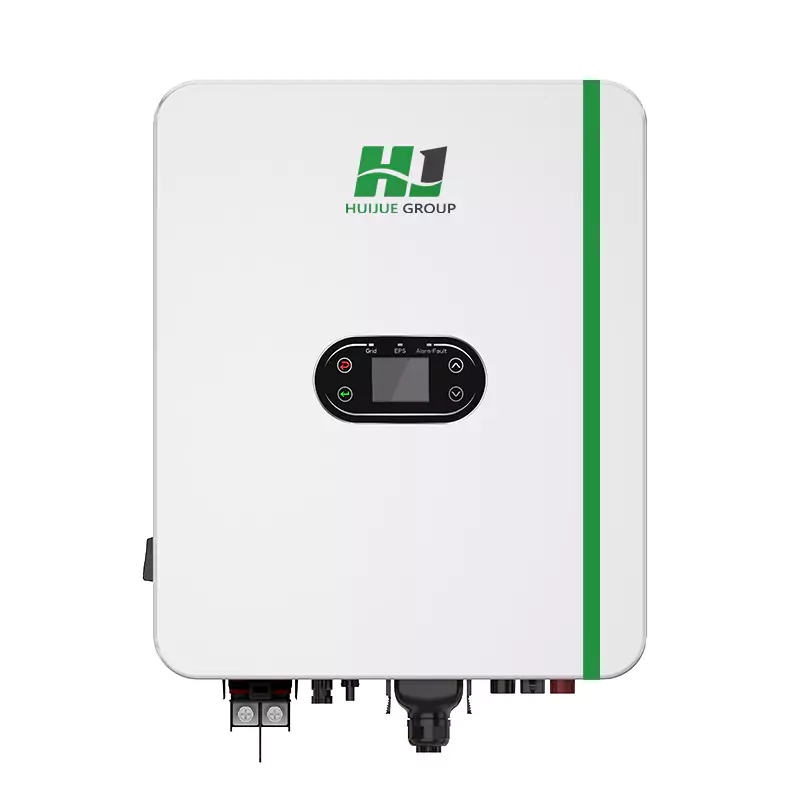

This inverter features a conversion efficiency of up to 98%, supports 160% DC overprovisioning and 200% emergency output power, is compatible with high-current and high-power components, and offers higher power generation returns. With an IP66 protection rating, it is convenient to operate and maintain, and can be flexibly adapted to various application scenarios.
| Product model | HJ-HIH4814S( H-11) |
| Max. PV Input Power | 16kW |
| Max. PV Input Voltage | 600V |
| Start-up Voltage | 100V |
| MPPT Voltage Range | 100V ~ 550V |
| Number of MPP Trackers | 2 |
| Number of Strings per MPPT | 2 / 1 |
| Max. PV Input Current | 40A / 20A |
| Rated Output Power | 10kW |
| Max. Output Active Power | 11kW |
| Max. Output Current | 50A |
| Rated Voltage | 230V |
| Rated Frequency | 50Hz / 60Hz |
| THDi(@Rated Power) | ＜ 3% |
| Power Factor | 0.8 leading ~ 0.8 lagging |
| Battery Type | Lithium，Lead-acid |
| Battery Voltage Range | 40V ~ 60V |
| Max. Charge/Discharge Current | 210A |
| Max. Output Power | 11kVA |
| Max. Output Current | 50A |
| Peak Output Power，Time | 20kW,10s |
| Rated Voltage | 230V |
| THDv(@Rated Power) | ＜ 3% |
| Switch Time | ＜ 10ms |
| Max. Efficiency | 98.00% |
| European Efficiency | 97.50% |
| Battery Charge / Discharge Efficiency | 97.00% |
| DC Reverse Polarity Protection | Yes |
| Insulation Resistance Monitoring | Yes |
| Ground Fault Monitoring | Yes |
| Over Current / Over Voltage Protection | Yes |
| Battery Soft Start Protection | Yes |
| AFCI Protection | Optional |
| Surge Protection | Type II |
| Display | LCD |
| Communication | RS485 / CAN / WIFI / 4G / Bluetooth |
| Dimension (W x H x D) | 440mm*530mm*250mm |
| Operating Temperature Range | -30℃ ～ +60℃ |
| Self-consumption | ＜ 10W |
| Topology | High Frequency Insolation (For Battery) |
| Protection Degree | IP66 |
| Relative Humidity | 0~100% |
| Max. Operating Altitude | 4000m |
| Cooling Method | Smart Forced Air Cooling |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Max. Efficiency 98%.
Max. PV input Current 20A, Compatible with High Power Modules；200% Peak Output Power at EPS Mode.
IP66 Protection Degree;
SPD Type 11:DC∾Support AFCl Function (Optional);Support Smart l-V Curve Diagnosis Function.
EPS Switching Time <10ms;Compatible With Lithium & Lead-acid Battery;Support Work in Parallel Mode;Support Diesel generator&Smart Load Connection.
Residential Solar Systems: Ideal for homes seeking to reduce electricity bills while maintaining power supply during outages.
Commercial Buildings: Provides reliable energy management for offices, optimizing the use of solar energy and battery storage to reduce operational costs.
Off-Grid Systems: Suitable for remote residential areas with no grid access, ensuring reliable energy production and storage.
