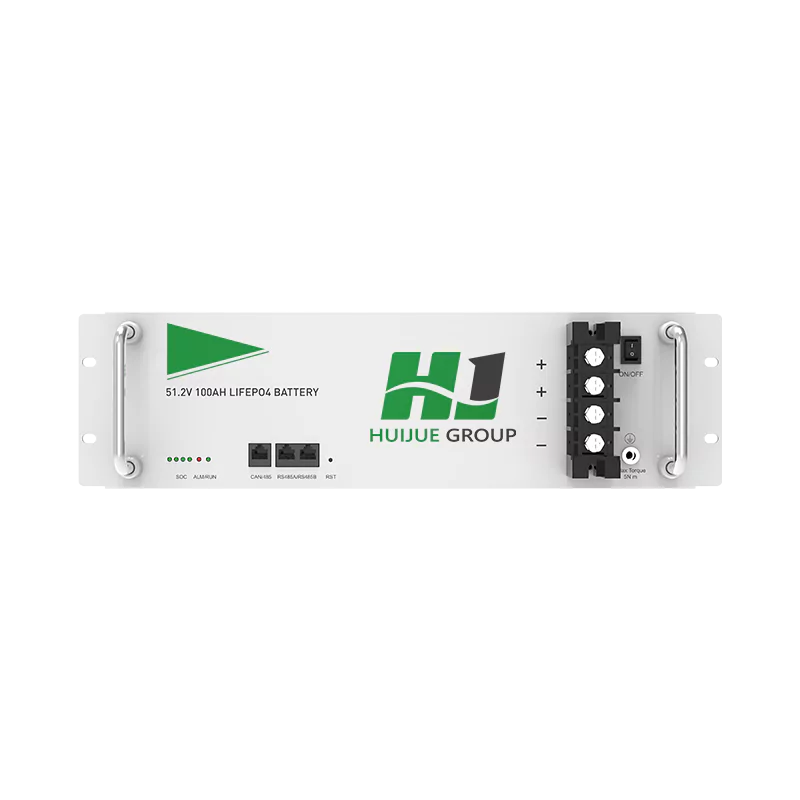

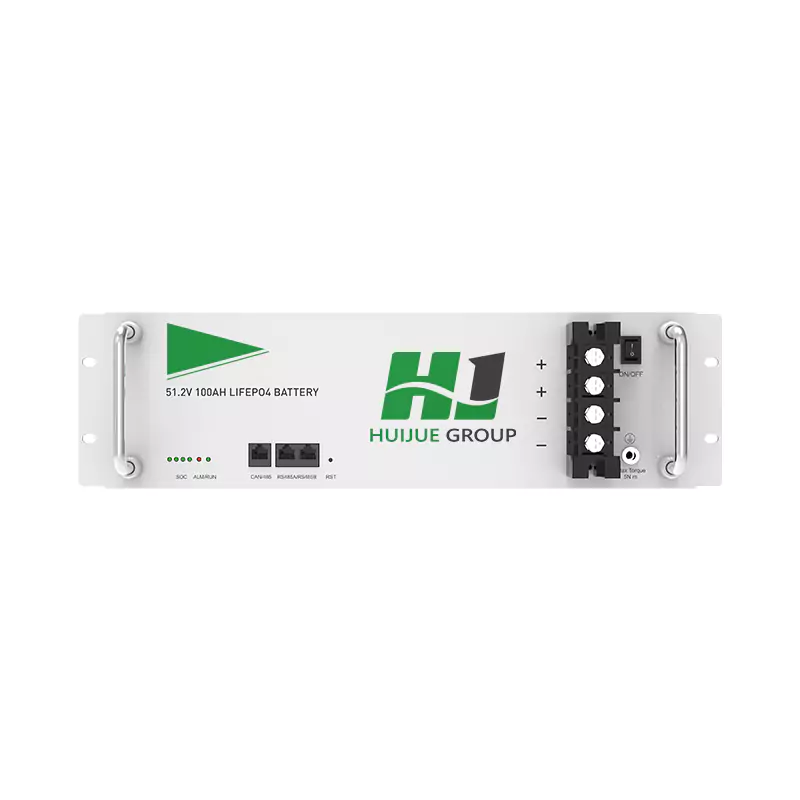

Standard 19-inch rack design, quick and easy installation.
Using high-safety lithium iron phosphate positive electrode material, it can be used for more than 6 months without charging. No memory effect, excellent partial cycle performance.
Equipped with overcharge, over-discharge, overcurrent and temperature protection functions. Automatically balance the cell voltage and current.
Using non-toxic and pollution-free materials, in line with environmental standards.

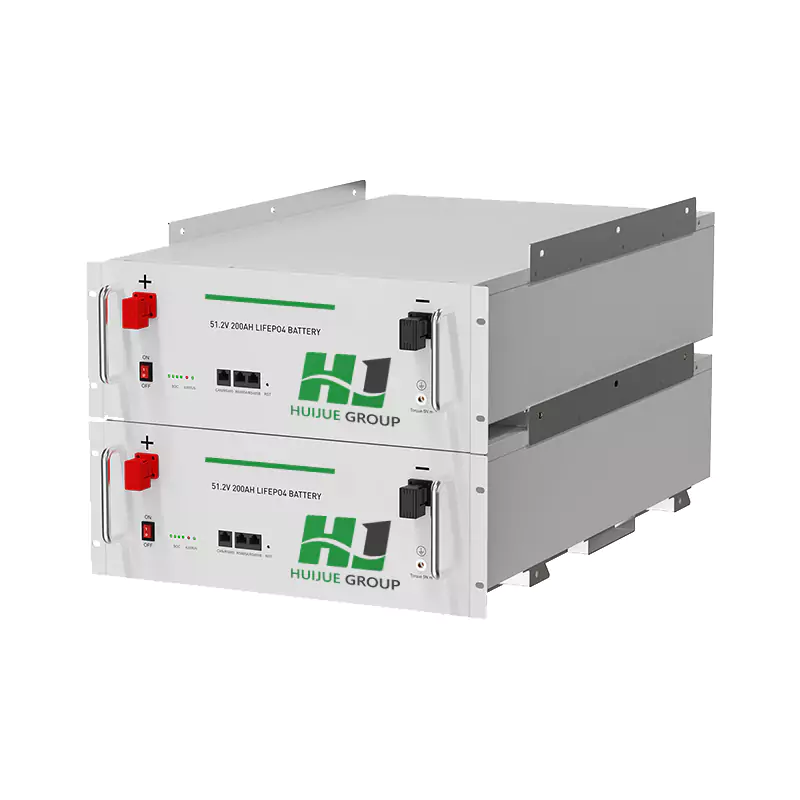

Support multiple modules in parallel to achieve capacity/power expansion. Support USB, Wi-Fi (optional) and remote firmware upgrade (compatible with GSL inverter).
| Product model | HJ-HBL48101R | HJ-HBL48202R |
| Battery Chemistry Type | Lithium iron phosphate (LiFePO4) | Lithium iron phosphate (LiFePO4) |
| Capacity (ampere-hours) Ah | 100 | 200 |
| Expandability | Maximum parallel connection: 16 units (81.92 kWh) | Maximum parallel connection: 16 units (163.84 kWh) |
| Nominal Voltage (volts) | 51.2 | 51.2 |
| Operating Voltage (volts) | 46 – 56 | 46 – 56 |
| Energy (kilowatt-hours) | 5.12 | 10.24 |
| Available Energy (kilowatt-hours) | 4.61 | 9.22 |
| Charging Voltage | 58.4 | 58.4 |
| Charge/Discharge Current (amps) | Recommended value: 50 | Recommended value: 100 |
| Maximum value: 80 | Maximum value: 150 | |
| Peak (2 minutes, 25°C): 100 | Peak (2 minutes, 25°C): 200 | |
| Recommended Discharge Depth | 90% | 90% |
| Dimensions (width/height/depth, millimetres) | 482 x 461 x 133 | 482 x 213 x 760 |
| Approximate Weight (kilograms) | 42.5 | 89.5 |
| Main LED Indicator | 4 LEDs (displaying State of Charge SOC: 25% – 100%) | 4 LEDs (displaying state of charge SOC: 25% – 100%) |
| 2 LEDs (displaying operational, alarm, and protection status) | 2 LEDs (displaying operational, alarm, and protection status) | |
| Enclosure Protection Rating | IP20 | IP20 |
| Operating Temperature | Charging: 0°C – 55°C; Discharging: -20°C – 55°C | Charging: 0°C – 55°C; Discharging: -20°C – 55°C |
| Storage Temperature | 0°C – 35°C | 0°C – 35°C |
| Humidity | 5% – 95% | 5% – 95% |
| Altitude | ≤2000 metres | ≤2000 metres |
| Cycle Life (25±2°C, 0.5C/0.5C, 80% life termination) | ≥6500 cycles | ≥6500 cycles |
| Installation Method | 19-inch rack-mount installation | 19-inch rack-mount installation |
| Communication Interface | CAN2.0, RS485 | CAN2.0, RS485 |
| Warranty Period | 5 years | 5 years |
| Lifetime Energy Within Warranty Period | 22.42 MWh (80% end-of-life) | 80MWh (80% end-of-life) |
| Certification | CB-IEC62619, CE-EMC, MSDS, UN38.3 | IEC62619, CE-EMC, MSDS, UN38.3 |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet

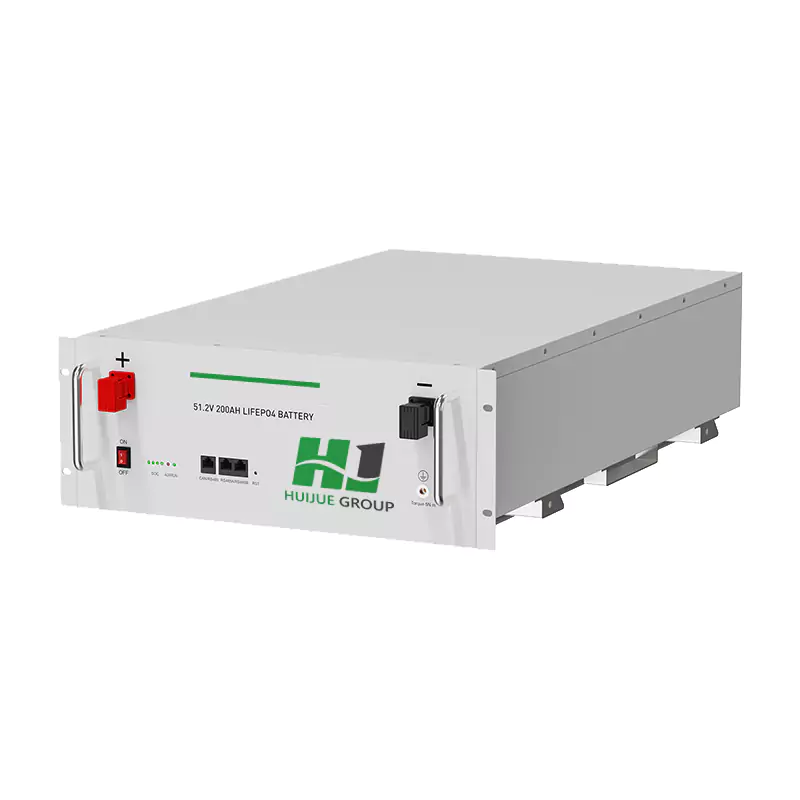

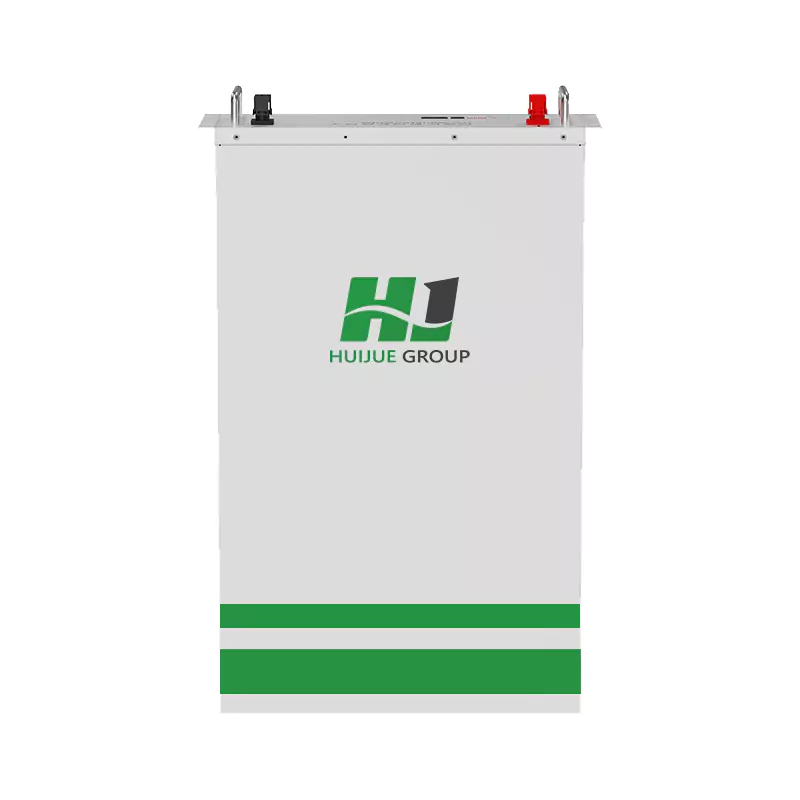

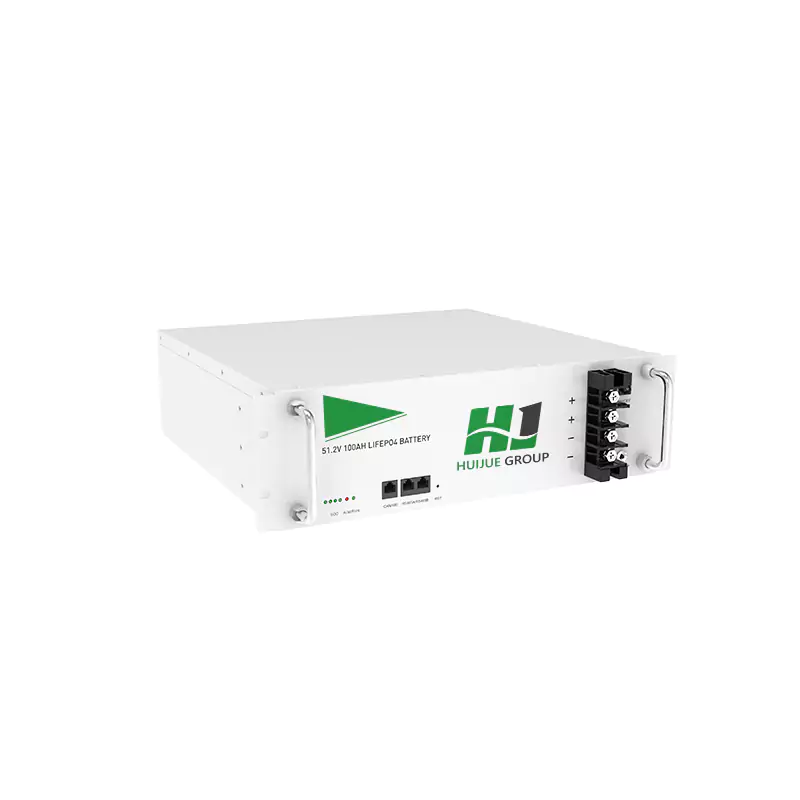

The rack-mounted lithium-ion battery system, with its efficient integration, high performance, intelligent management, and high reliability, provides an ideal energy storage solution for critical applications such as data centers, communication base stations, and industrial automation, ensuring stable equipment operation and efficient energy utilization.
