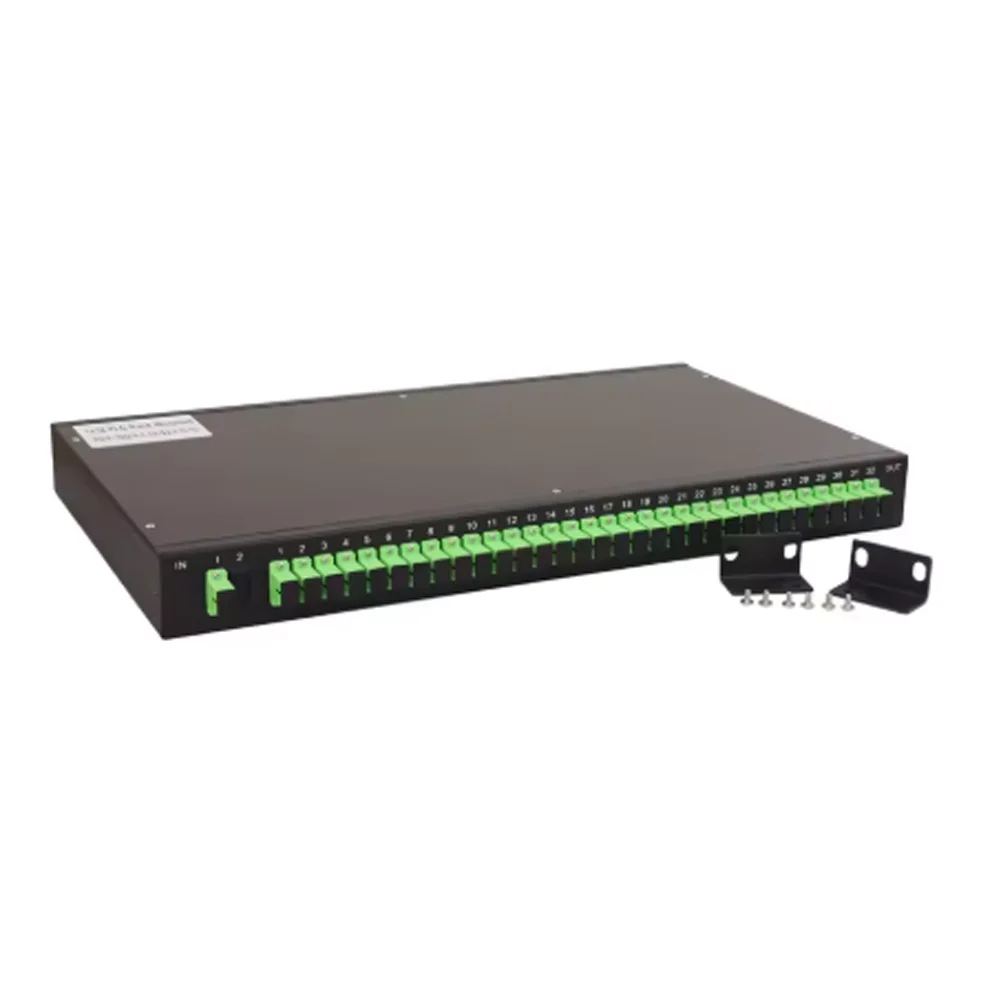

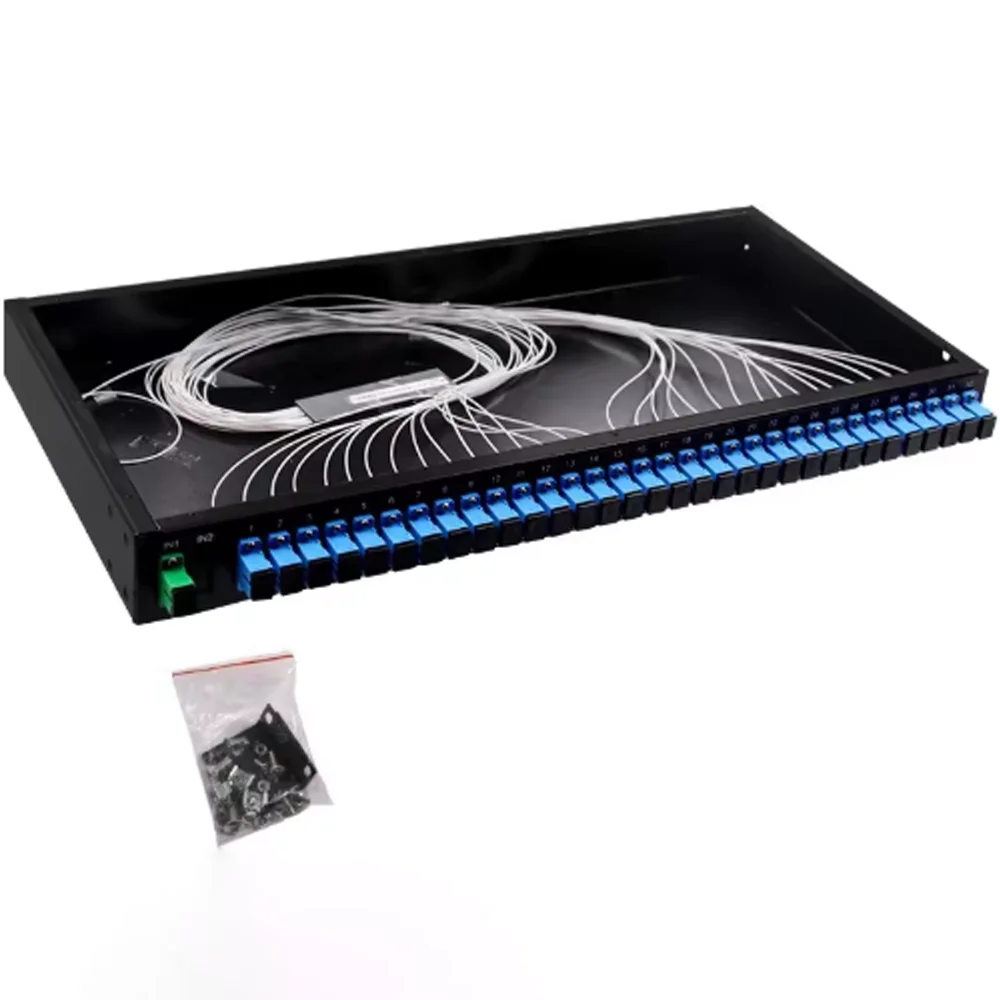

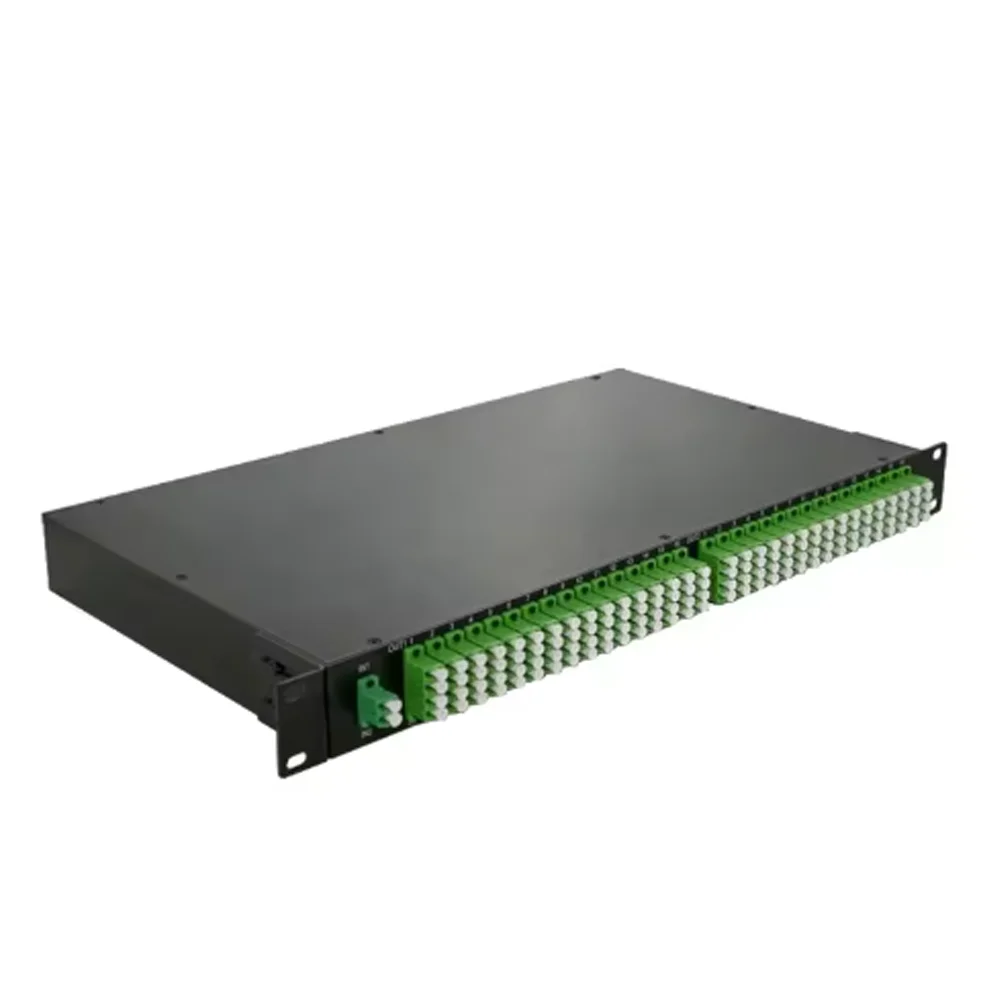

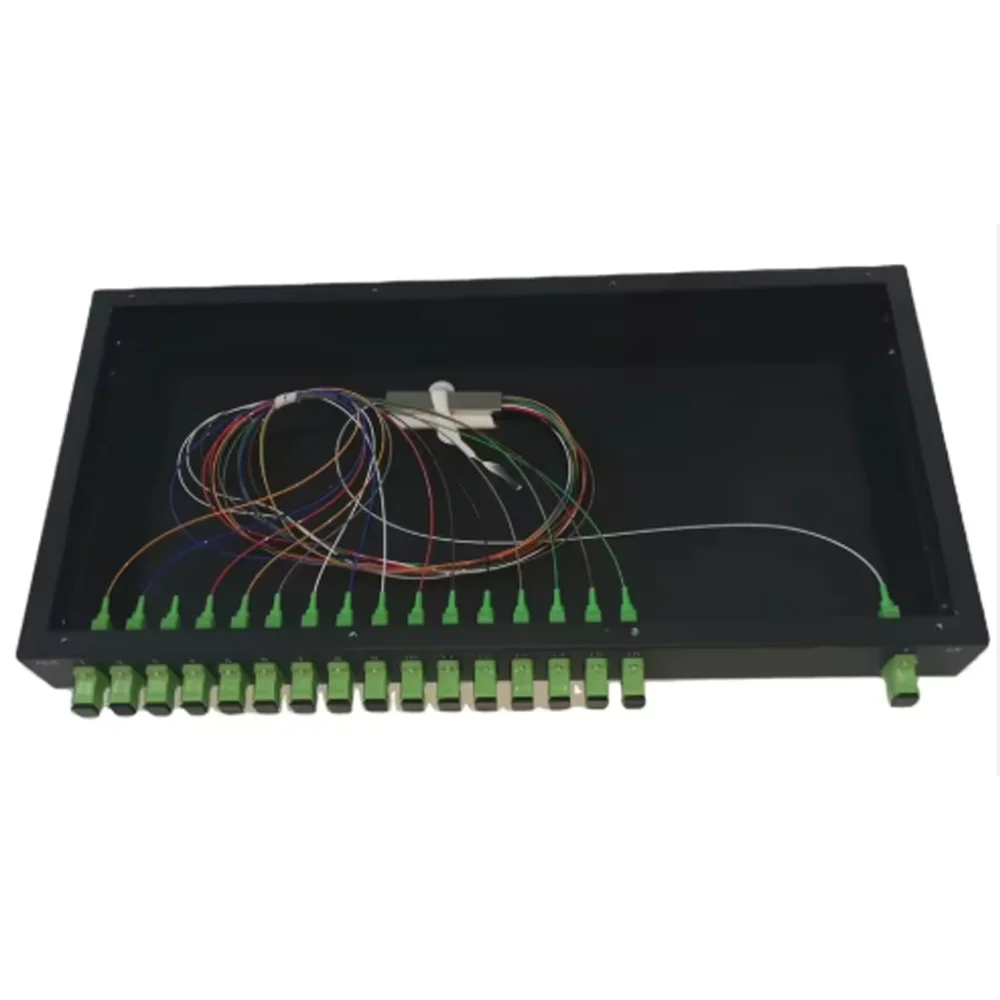

The PLC Rack-Mount (Subframe) Fiber Splitter is designed for standard 19-inch cabinets, installable in ODF distribution frames or communication rack subframes. With a durable metal housing and SC/APC or SC/UPC connectors, it supports configurations from 1×16 to 1×64. Ideal for large-scale FTTH deployment, equipment room optical distribution, and carrier-grade network construction.
Send Message Get Price
| Item | Value |
| Product Name | 1U 19″ Rack Mount PLC Fiber Optic Splitter |
| Model Number | Rack-mount |
| Product Type | Rack-mount PLC Fiber Optic Splitter |
| Standard | 19 Inch Rack Mounted |
| Height | 1U / 2U (Optional) |
| Configuration | 1×4 / 1×8 / 1×16 / 1×32 / 1×64 |
| Fiber Mode | Single Mode (SM) / Multi Mode (MM) |
| Wavelength | 1260 nm to 1650 nm |
| Insertion Loss | ≤ 16.8 dB (based on 1×64) |
| Connector Type | SC, FC (UPC or APC optional) |
| Color | White / Black |
| Material | Cold Rolled Steel (Metal Housing) |
| Application | FTTH Solution; Telecommunication Networks; PON Systems; Data Center |
Note: Specifications are subject to change without prior notice for product improvement.
design with 1U or 2U height options, perfectly fitting all standard telecommunication and server racks.
meeting different FTTH deployment needs from small access points to large-scale central office aggregation.
fiber modes with a wide operating wavelength range (1260-1650nm) for high compatibility.
high-quality metal housing made of cold-rolled steel provides robust structural integrity and superior mechanical protection for internal PLC splitter chips.
features low insertion loss (≤16.8dB) and high return loss for superior signal performance.
Carrier-grade large-scale FTTH optical distribution networks
Equipment room ODF fiber distribution frame integration
GPON / EPON / WDM-PON access networks
CATV optical networks
Campus and enterprise fiber backbone networks
High-density fiber management in data centers
