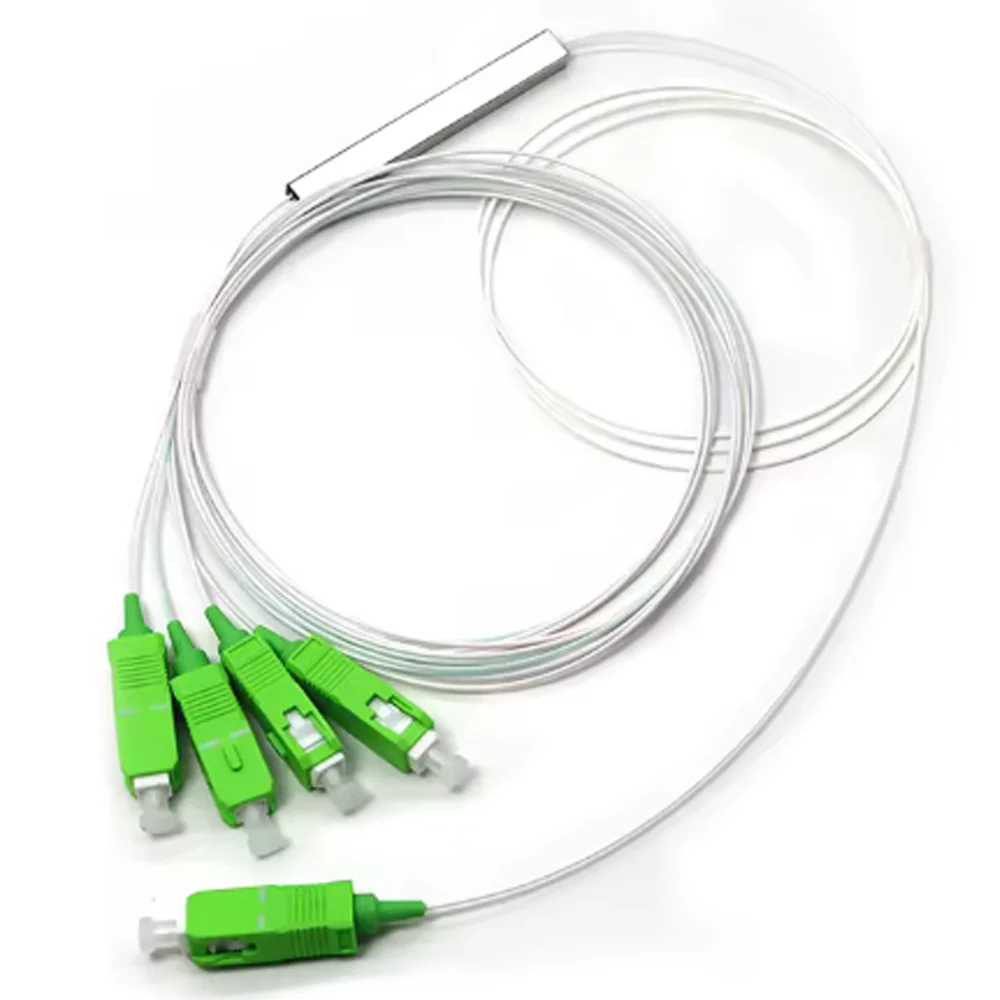

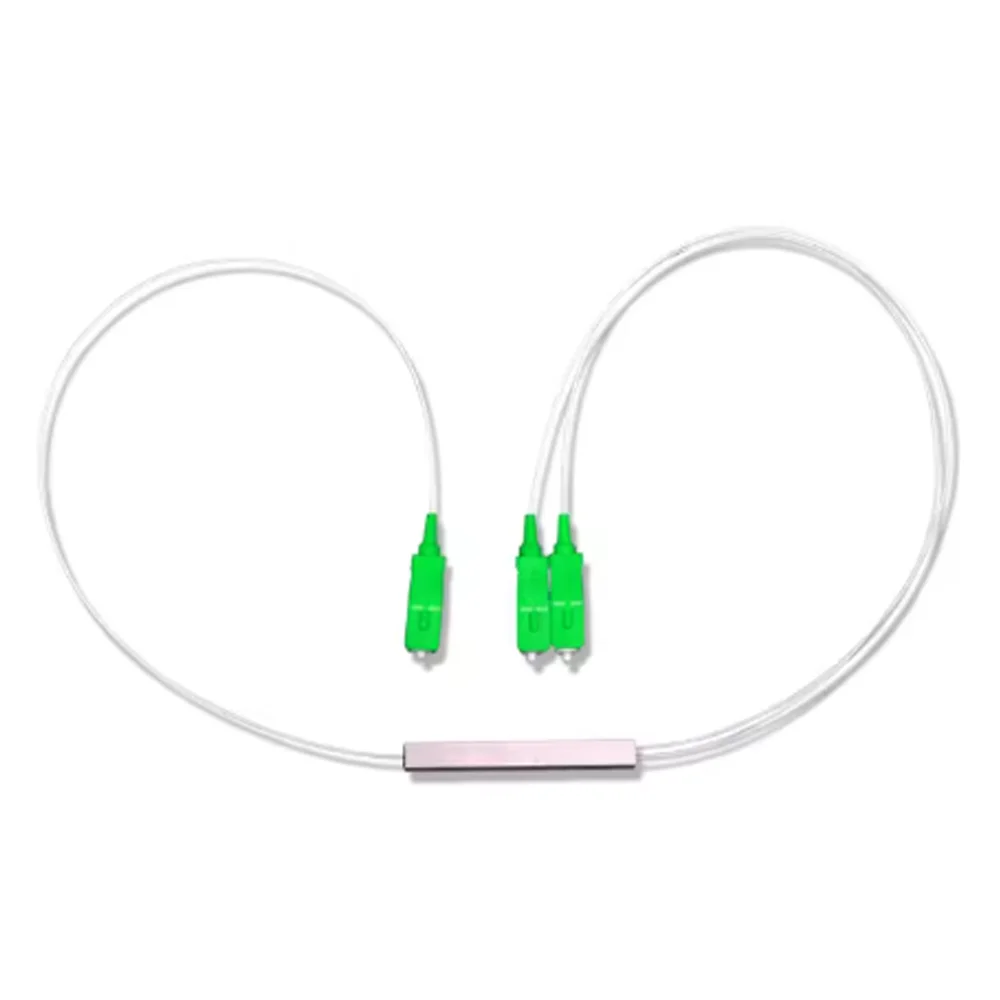

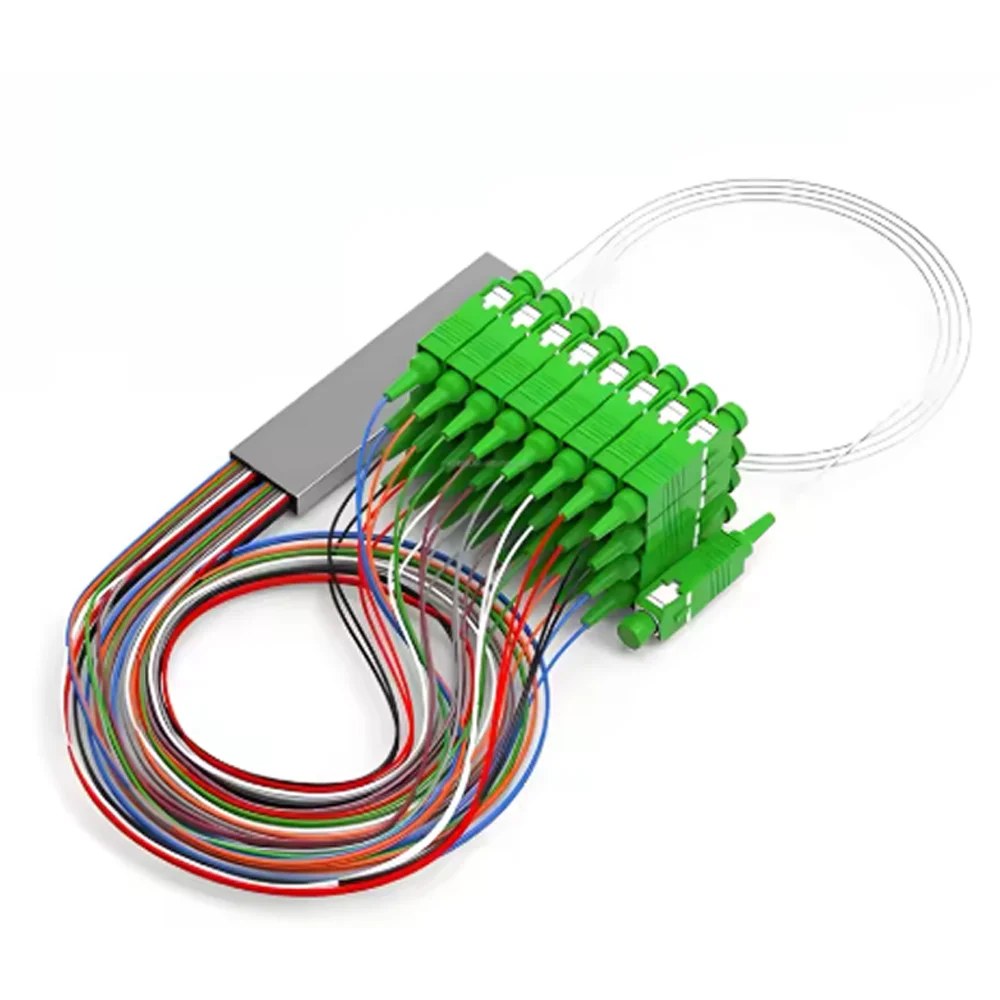

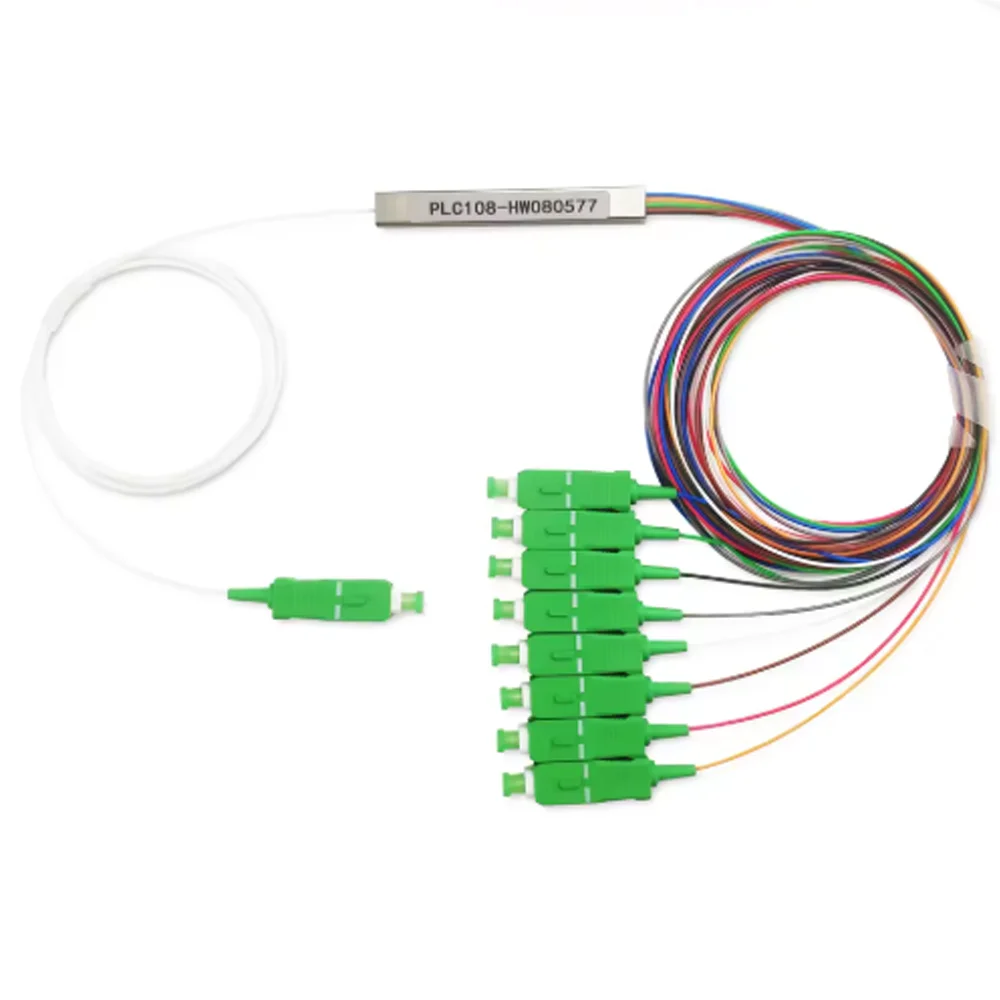

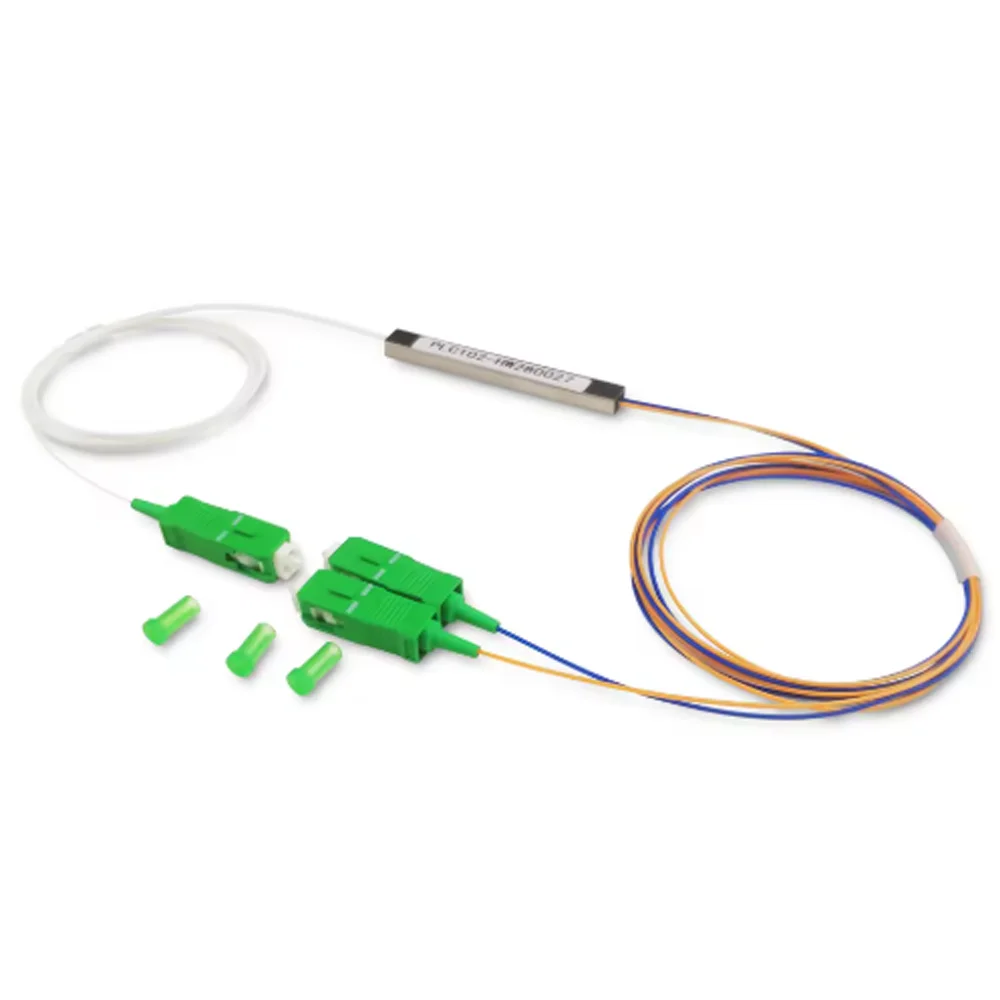

The Micro Steel Tube PLC Fiber Splitter features a micro steel tube package with 0.9 mm pigtails and color-coded tight-buffered fibers for easy on-site identification. Compact in size, it is ideal for space-constrained FTTH scenarios such as optical distribution boxes, wall-mount boxes, and subscriber terminal boxes where installation space is limited.
Send Message Get Price
| Item | Value |
| Product Name | UT-King 1×3/1×5/1×9/1×17 Uneven PLC Fiber Splitter |
| Model Number | PLC-Uneven PLC Splitter |
| Product Type | PLC Fiber Splitter |
| Application | FTTH (Fiber to the Home); PON (Passive Optical Network); CATV; LAN; GPON/BPON/EPON; FTTx Deployments |
| Network Compatibility | Wireless LAN, Wired LAN, Wi-Fi, 4G, 3G |
| Fiber Type | Singlemode G.657A1 Bend Insensitive Fiber |
| Configuration Type | 1×3 / 1×5 / 1×9 / 1×17 (Optional) |
| Split Ratio | Uneven split; Options: 90:10 / 85:15 / 80:20 / 70:30 / 60:40 / 50:50 |
| Connector Type | SC APC / SC UPC (Optional) |
| Operating Wavelength | 1260 nm to 1650 nm (Broadband) |
| Return Loss | >= 55 dB |
| Temperature Dependent Loss | <= 0.5 dB |
| Operating Temperature | -40°C to +85°C |
| Dimensions | 29 x 130 x 127 mm (H x W x D) / 1.14″ x 5.12″ x 5.00″ |
| Housing | Compact housing; fits racks, wall-mounted boxes, optical distribution boxes, etc. |
| Warranty | 1 Year |
| Certification | CE (Complies with EU Standards); Factory verified by Intertek |
Note: Specifications are subject to change without prior notice for product improvement.
output optical power can be distributed at 70/30% or 85/15% and other asymmetric ratios, flexibly adapting to various optical network topologies.
significantly lowering FTTH construction costs in medium/low-density areas such as rural regions; an economical and efficient solution for fiber-to-the-home deployment.
effectively reducing additional loss caused by cable bending during installation; suitable for complex cabinet and distribution box deployments.
covering O/E/S/C/L bands; compatible with GPON, BPON, EPON, WDM-PON, and CATV standards.
FTTH Optical Distribution Boxes (ODB) and subscriber terminal boxes
Wall-mount fiber distribution boxes and ONUs
Space-constrained FTTH installation scenarios
GPON / EPON passive optical access networks
CATV optical networks
Optical distribution in structured cabling systems
