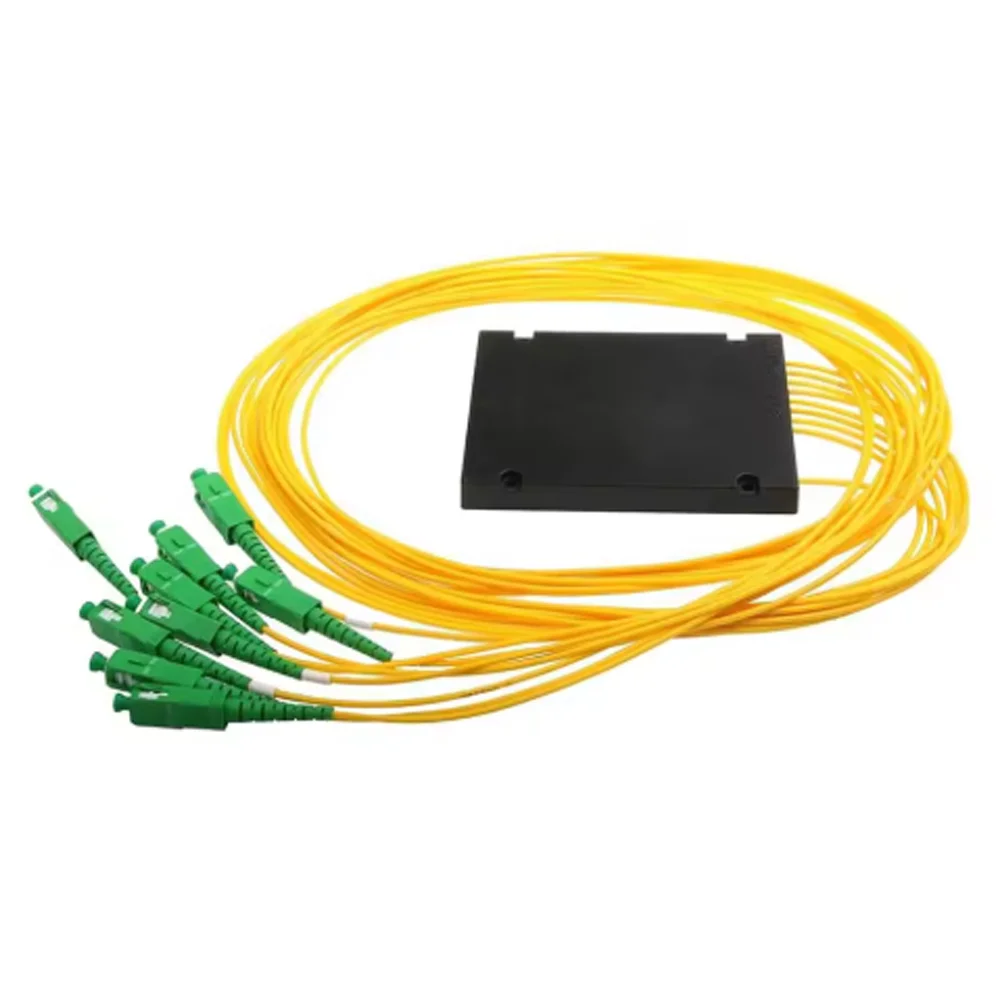

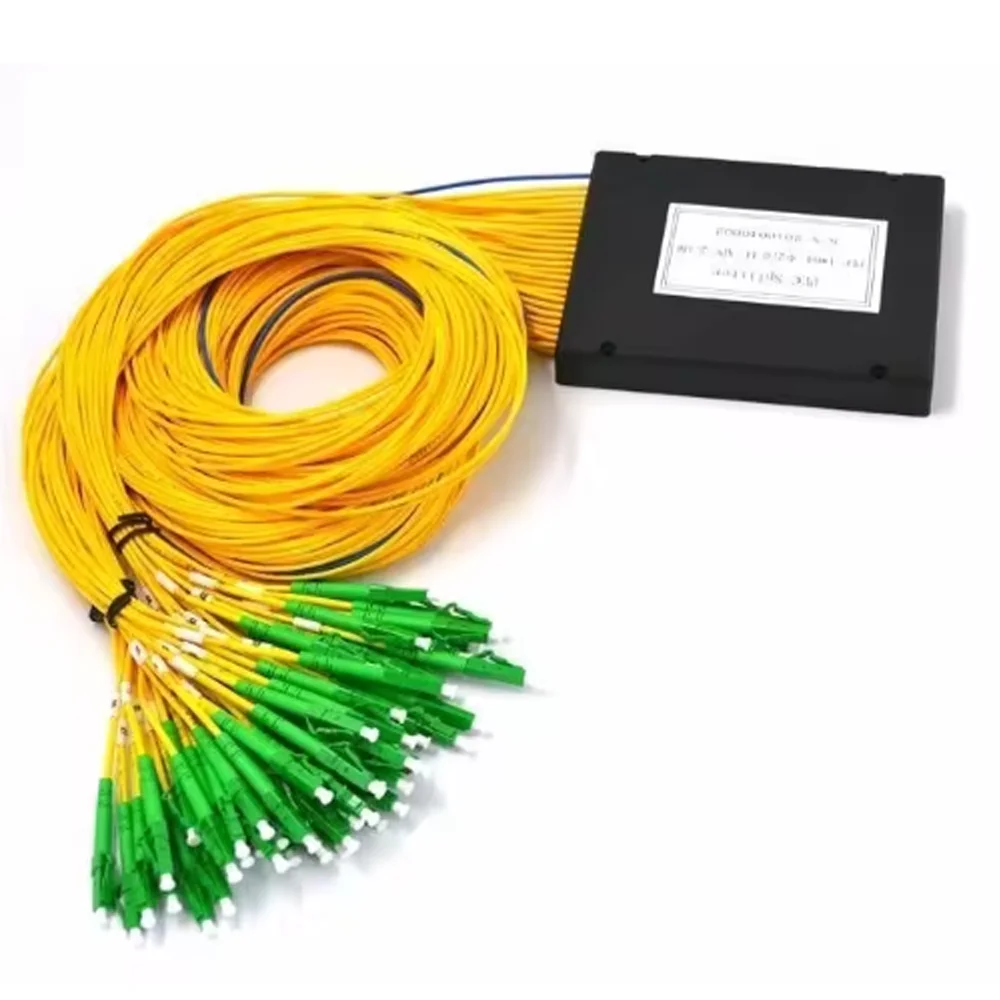

The ABS Box PLC Fiber Splitter is manufactured using Planar Lightwave Circuit (PLC) chip technology, offering configurations from 1×2 to 1×64. Housed in ABS engineering plastic (yellow), it features a compact, robust, and standardized structure suitable for installation in ODF distribution frames, wall-mounted boxes, and racks. Standard connector options include SC/APC and SC/UPC; compatible with G657A/G652D single-mode fiber. Ideal for FTTH, telecom networks, and PON deployments.
Send Message Get Price
| Parameter | Value |
| 1×2 Insertion Loss | <= 3.8 dB (typical) |
| 1×4 Insertion Loss | <= 7.2 dB (typical) |
| 1×8 Insertion Loss | <= 10.5 dB (typical) |
| 1×16 Insertion Loss | <= 13.8 dB (typical) |
| 1×32 Insertion Loss | <= 17.2 dB (typical) |
| 1×64 Insertion Loss | <= 20.8 dB (typical) |
| Uniformity | <= 1.5 dB (1×4); <= 2.0 dB (1×32) |
| Return Loss | >= 50 dB (SC/UPC); >= 60 dB (SC/APC) |
| PDL | <= 0.3 dB |
| Operating Wavelength | 1260 to 1650 nm |
| Operating Temperature | -40°C to +85°C |
| Storage Temperature | -40°C to +85°C |
| Fiber Type | G657A / G652D Singlemode |
| Pigtail Diameter | 0.9 mm / 2.0 mm / 3.0 mm (optional) |
| Pigtail Length | 0.5 m / 1.0 m / 1.5 m (customizable) |
Note: Specifications are subject to change without prior notice for product improvement.
uniform signal distribution across all output ports with excellent channel-to-channel consistency, low insertion loss, ideal for FTTH/PON networks with strict signal balance requirements.
compact and robust structure with standardized dimensions; directly installable in optical distribution frames (ODF), wall-mounted boxes, racks, and various fiber infrastructure.
meets FTTH project requirements ranging from building-level access to campus-scale backbone distribution.
operating wavelength covers 1260-1650 nm (full O/E/S/C/L band); widely compatible with GPON, EPON, BPON, and WDM-PON network standards.
”FC,
FTTH (Fiber to the Home) network deployment
GPON / BPON / EPON passive optical networks
WDM-PON wavelength division multiplexing networks
CATV (Cable Television) networks
Local Area Networks (LAN) and structured cabling
Optical Distribution Boxes (ODB) and ODF frames
Test equipment and light source connections
