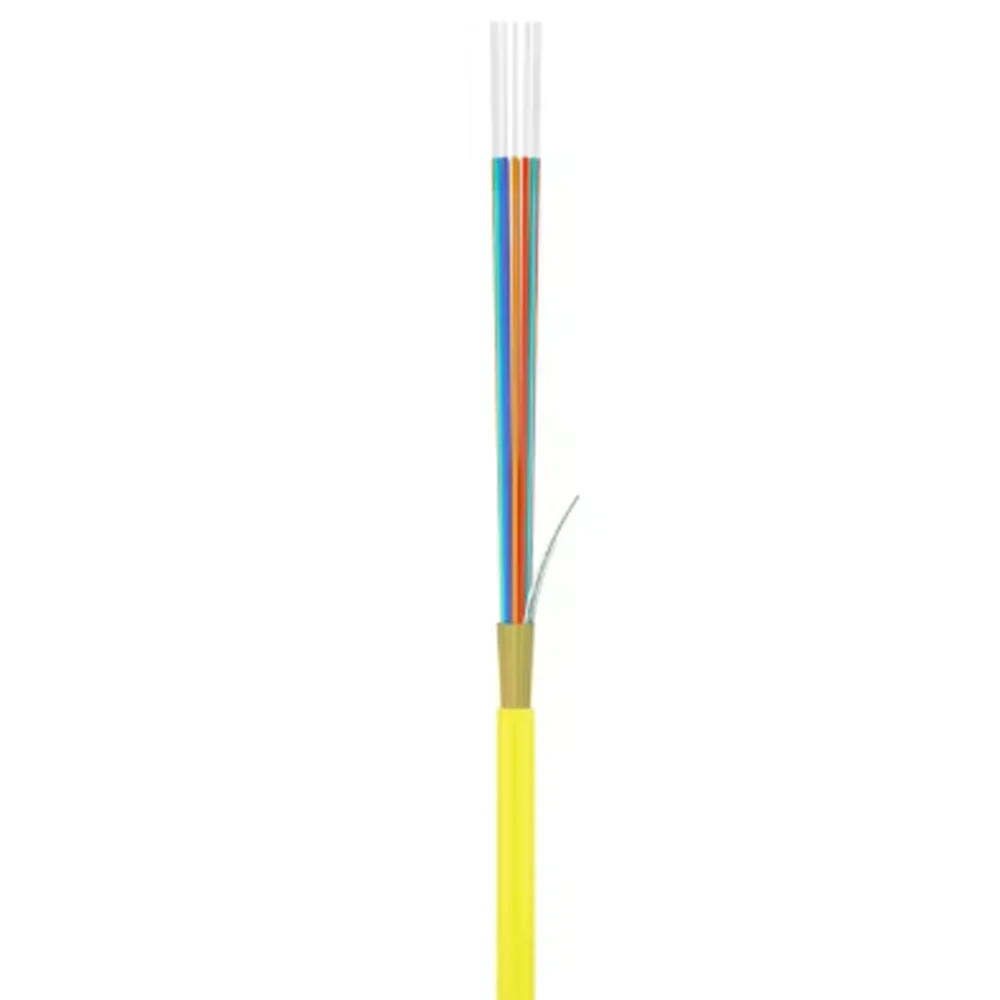

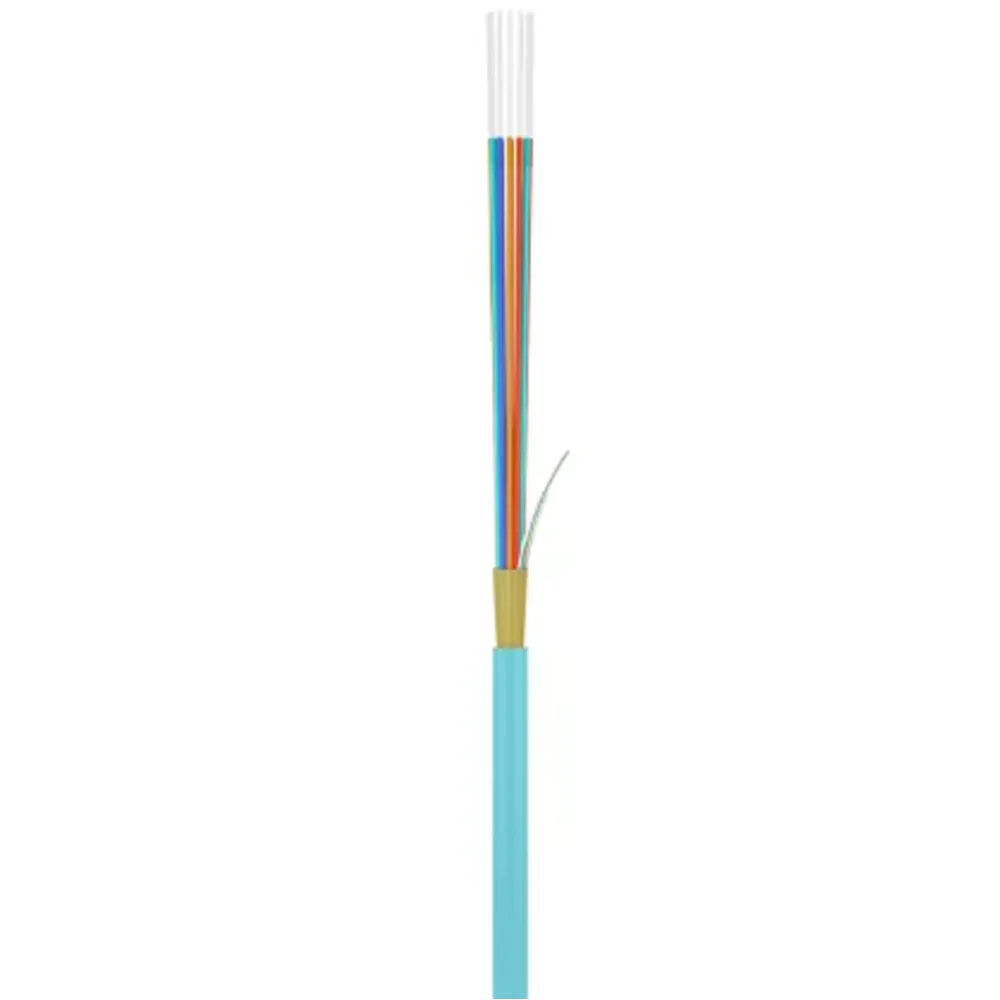

MPO High-Density Fiber Patch Cords (also known as MPO Fanout / Harness Cords) are high-density cabling products that convert one MPO multi-fiber connector into multiple LC/SC simplex connectors. Each MPO trunk cable enables 8/12/24 parallel fiber transmission and distribution channels, dramatically saving patching space. Designed for 40G/100G/400G data center core switching areas, high-density server room access, and high-speed backbone network pre-terminated cabling systems.
Send Message Get Price
| Item | Value |
| Product Name | MPO Patch Cord |
| Connector Type | MPO/UPC to LC Harness Fanout |
| Fiber Count | 12 Core (customizable 2-288 cores) |
| Fiber Type | Multimode OM4 |
| Cable Length | 10 m (customizable) |
| Jacket | PVC |
| Application | Indoor |
| Operating Temp | -40 to +60 deg C |
| Warranty | 15 Years |
| Package Size | 29.5 x 45.5 x 31.5 cm |
| Lead Time | 1-1,000m: 3 days; >1,000m: negotiable |
| Item | Value |
| Product Name | OS2 OM1 OM2 OM3 OM4 Duplex Armored Fiber Optic Cable |
| Fiber Count | 2 Core (Duplex) |
| Fiber Type | SM Single Mode / MM Multimode (OS2/OM1/OM2/OM3/OM4) |
| Buffer Material | PVC / LSZH |
| Armor Material | SUS204 / SUS304 Stainless Steel |
| Available Colors | Blue, Orange, Green, Brown, Grey, White, Red, Black, Yellow, Violet, Pink, Aqua (12 colors) |
| Certification | ISO9001, CE, RoHS |
| Application | Indoor |
| MOQ | 1 km |
| Warranty | Cable: 30 years; Fiber: 70 years |
| Cable OD Range | phi 1.8mm ~ phi 3.0mm (multiple sizes) |
Note: Specifications are subject to change without prior notice for product improvement.
Suitable for indoor horizontal/vertical cabling, structured cabling, and LAN applications.
Suitable for long-distance, outdoor, building and hybrid fiber-electric cabling
Suitable for high-density cabling and connections in ODF, communication equipment, and FTTX
