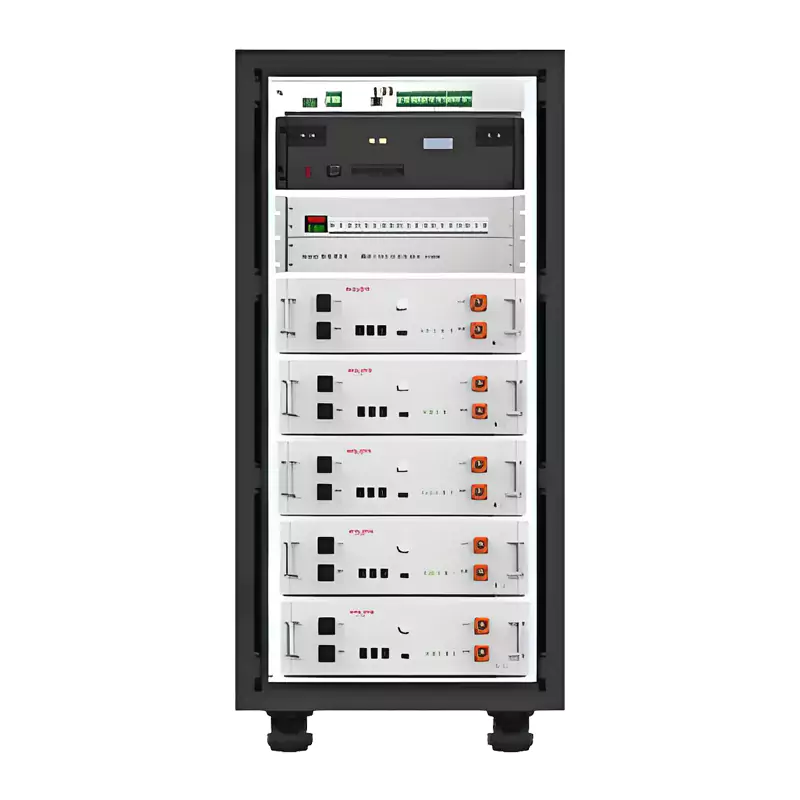

The modular rack-mounted inverter design integrates PV inverter, energy storage, charging and discharging, and intelligent power distribution, which is easy to install, saves space, and meets the needs of diversified scenarios.
Equipped with EMS energy management system, it can dynamically regulate energy distribution, prioritize the use of PV power generation, and store or grid-connect the remaining power; combined with the peak and valley tariff strategy, it can automatically select charging in low-priced hours and discharging in high-priced hours, thus lowering the expenditure on electricity.
With three core modes: self-generation and self-consumption, grid-connected power generation, and off-grid standby, it supports rapid switching to off-grid power supply in case of power outage, and guarantees continuous operation of critical loads.
Built-in BMS, intelligent battery temperature control and multiple protection mechanisms (overcharge/overdischarge/short-circuit protection), adapting to high temperatures, humidity and other complex environments, to ensure long-life and stable operation of the system.
Supports flexible expansion of energy storage battery capacity, suitable for different scales of electricity consumption; compatible with mainstream PV modules and grid standards to meet future upgrade requirements.

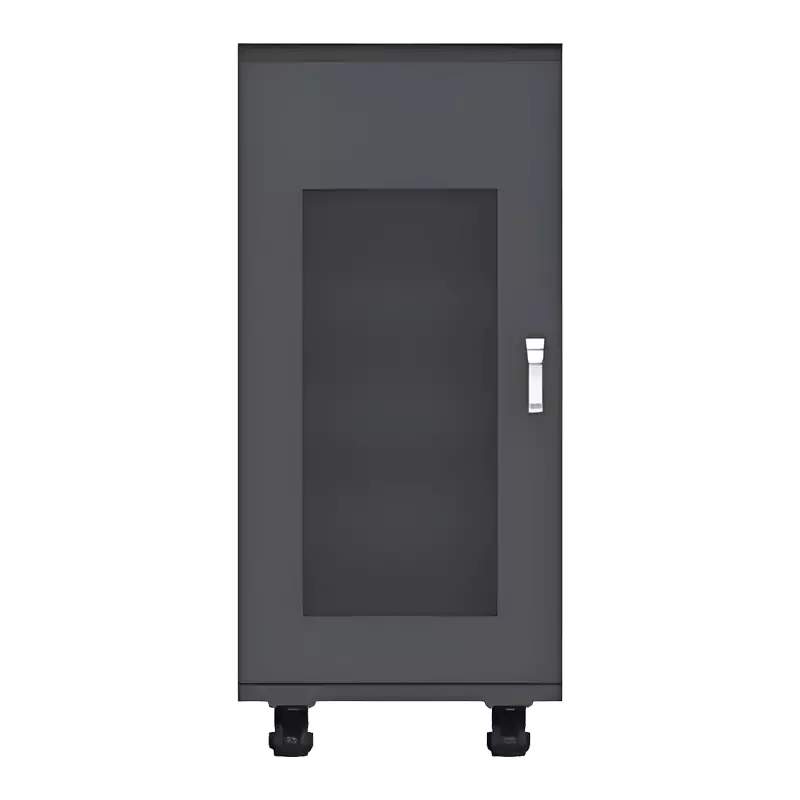

| Model Number | HJ-H10-H05-05A | HJ-H20-H08-08A | HJ-H30-H08-08A | HJ-H10-005-05A | HJ-H20-008-08A | HJ-H30-008-08A |
| Power | 5KW | 8KW | 8KW | 5KW | 8KW | 8KW |
| Max Capacity | 10KWh | 20KWh | 30KWh | 10KWh | 20KWh | 30KWh |

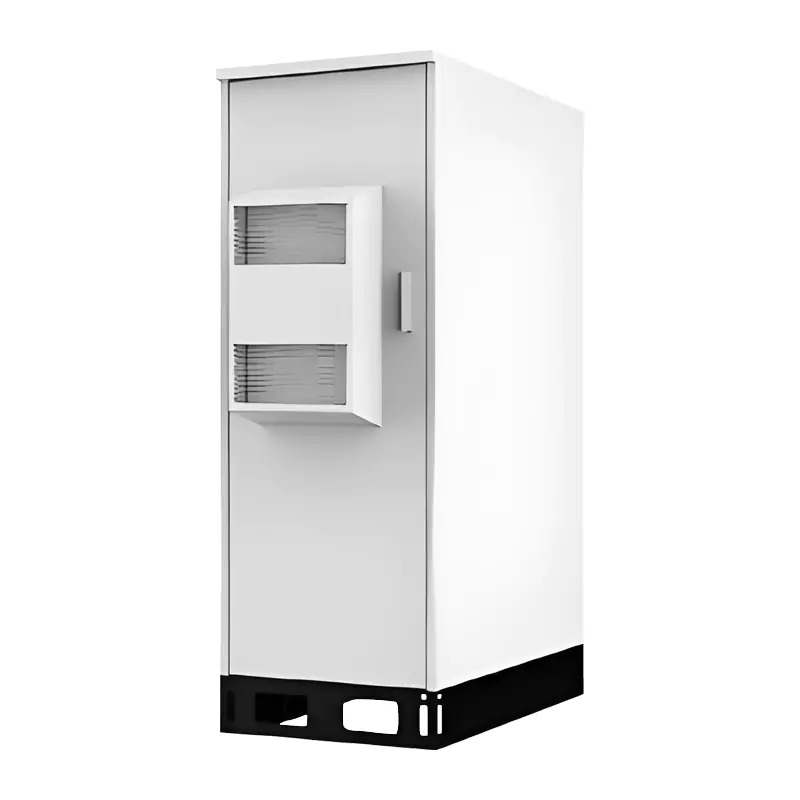

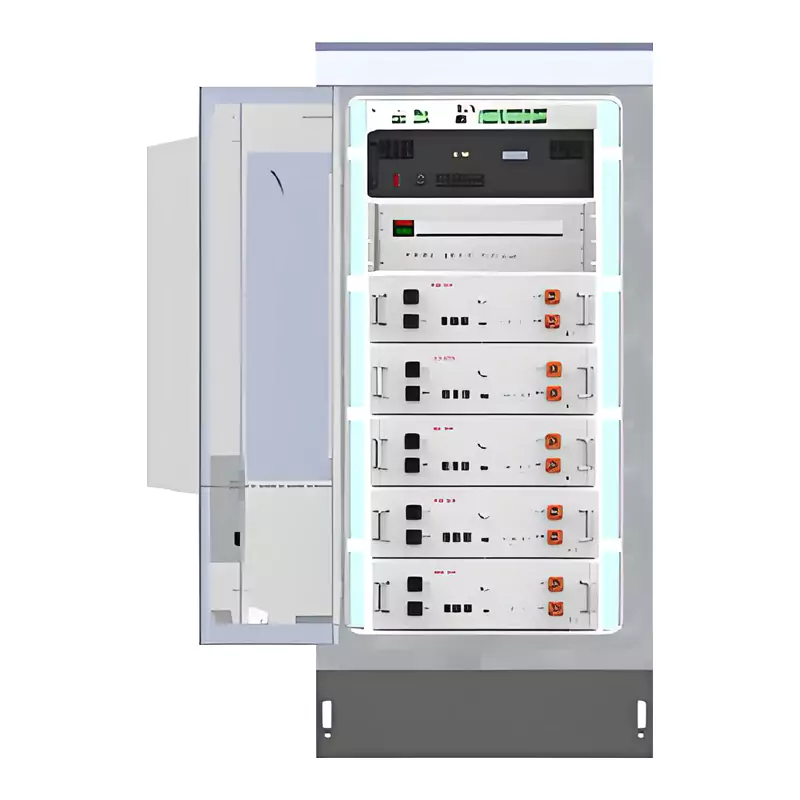

| Usage Environment | Indoor Installation | Outdoor Installation | ||||
| Dimensions | 1000mm*600mm*600mm | 1400mm*600mm*600mm | 1800mm*600mm*600mm | 1200mm*650mm*650mm | 1600mm*700mm*700mm | 2000mm*700mm*700mm |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Optimization of home PV self-consumption, peak and valley tariffs for economic users, unstable grid areas.
