High safety and long service life, using consistent, safe, and reliable lithium iron phosphate battery cells, suitable for long-term use.
Integrated solution, supporting simultaneous connection of loads, batteries, power grids, diesel generators, and photovoltaics.
Integrated EMS function, equipped with a high-performance processor, providing safe and stable power supply and maximizing new energy utilization.
Can be flexibly installed according to the user's space layout, both practical and aesthetically pleasing.
| Product model | HJ-H05-O05 | HJ-H10-O05 | |
| No. | Item | Spec | Spec |
| Battery parameters | Cell | LiFeCoPO4 3.2V/100Ah | LiFeCoPO4 3.2V/100Ah |
| Array mode | 16S1P | 16S2P | |
| Rated capacity | 51.2V100Ah | 51.2V200Ah | |
| Capacity | 5.12kWh | 10.24kWh | |
| Operating voltage | 40-58.4V | 40-58.4V | |
| Standard charging current | 100A | 100A | |
| Communication port | RS485/CAN/232 | RS485/CAN/232 | |
| PV parameters | PV input power | 5500W | 5500W |
| PV输入电压范围 PV input voltage range |
120~500V | 120~500V | |
| Number of MPPTs | 1 | 1 | |
| AC parameters | AC input voltage rating | 220V/230V/240VAC (L+N+PE) | 220V/230V/240VAC (L+N+PE) |
| AC input voltage range | 90~280VAC±3V(APL);170~280VAC±3V(UPS); | 90~280VAC±3V(APL);170~280VAC±3V(UPS); | |
| AC input frequency | 50HZ/60HZ (Adaptive) | 50HZ/60HZ (Adaptive) | |
| Rated output power | 5000W | 5000W | |
| Rated output voltage | 220V/230V/240VAC (L+N+PE) | 220V/230V/240VAC (L+N+PE) | |
| Waveform | Pure swirl | Pure swirl | |
| Transmission time(adjustable) | 10 ms for computers(UPS mode) and20 ms for home devices(APL mode). | 10 ms for computers(UPS mode) and20 ms for home devices(APL mode). | |
| Peak power | 10000VA | 10000VA | |
| Overload capacity | Battery Mode: 21s@105%~150% load 11s@150%~200% load 400ms@>200% load | Battery Mode:21s@105%~150% load11s@150%~200% load400ms@>200% load | |
| Maximum efficiency | >98% | >98% | |
| System Parameters | Net weight | 58Kg | 100Kg |
| Package weight | 85Kg | 130Kg | |
| Net size(H*W*D) | 850*480*160(mm) | 1100*540*160 (mm) | |

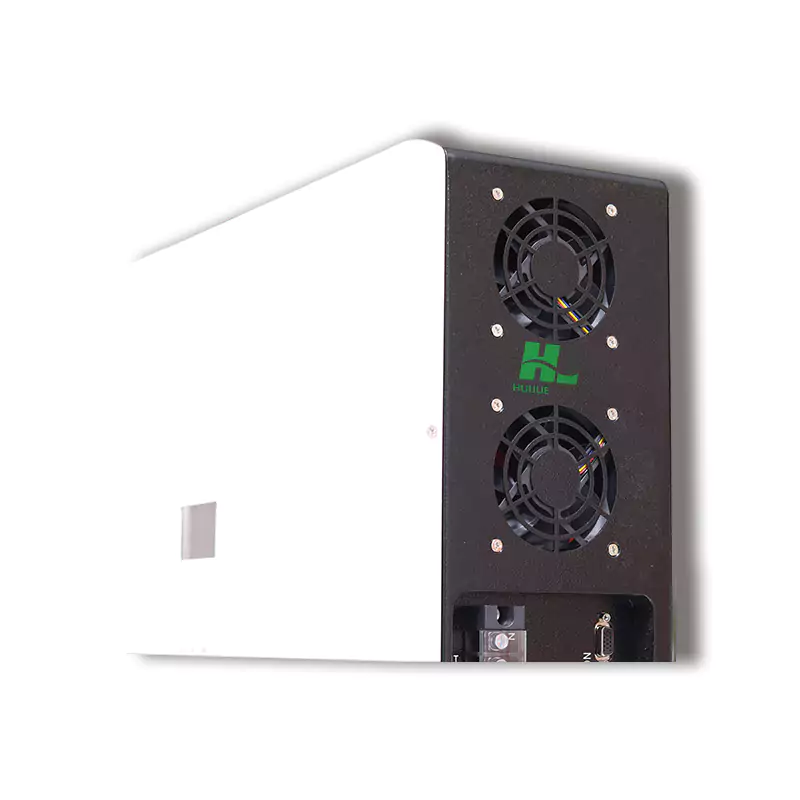

| Cooling method | Forced air cooling | Forced air cooling | |
| Operating environment | Charge:0℃~55℃/ Discharge: – 20℃~60℃/ Storage:-10℃~45℃ | Charge:0℃~55℃/ Discharge: – 20℃~60℃/ Storage:-10℃~45℃ | |
| Running humidity | 5~95%, Relative humidity | 5~95%, Relative humidity | |
| Installation type | Wall-mounted | Wall-mounted | |
| Communication mode | RS485/WIFI/4G | RS485/WIFI/4G | |
| Authentication | IEC62619、UN38.3、MSDS | IEC62619、UN38.3、MSDS | |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
With its high efficiency, flexibility, and safety, the stand-alone integrated system provides an ideal energy management solution for households and small commercial users, helping them achieve a green and low-carbon lifestyle.
