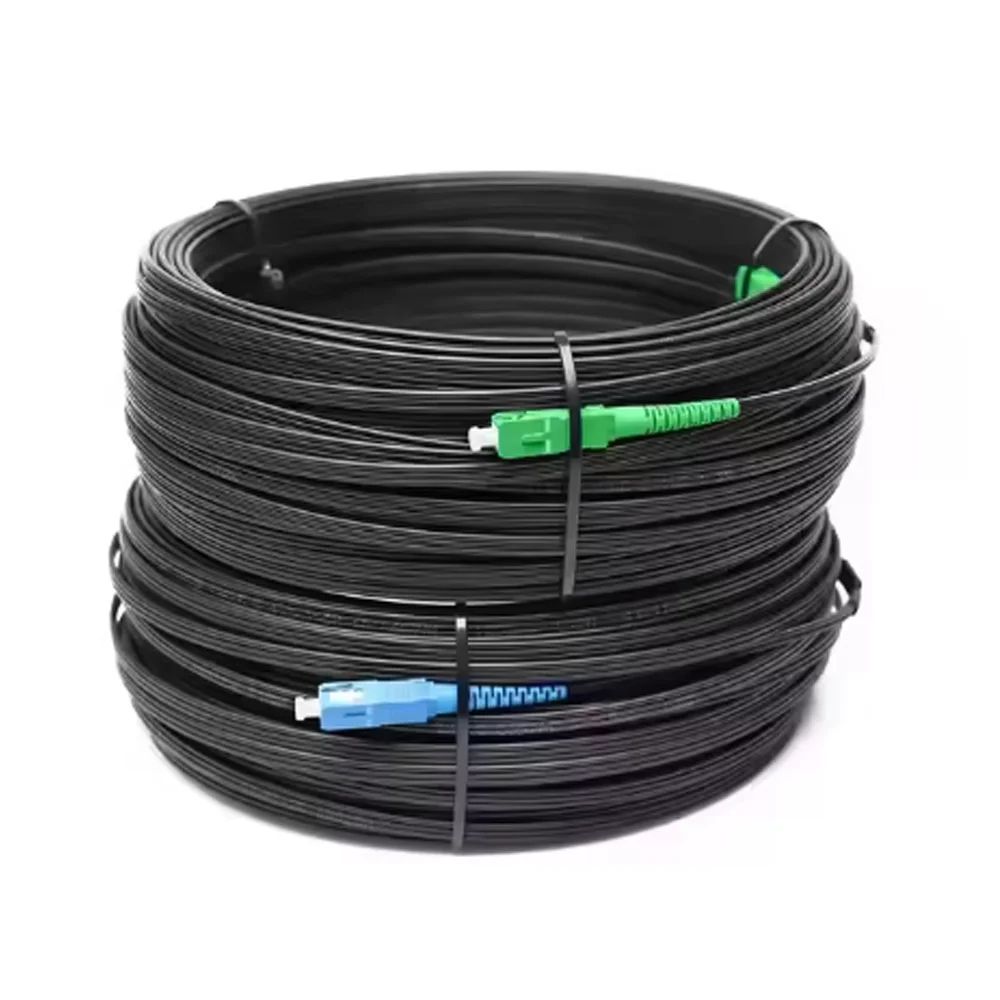

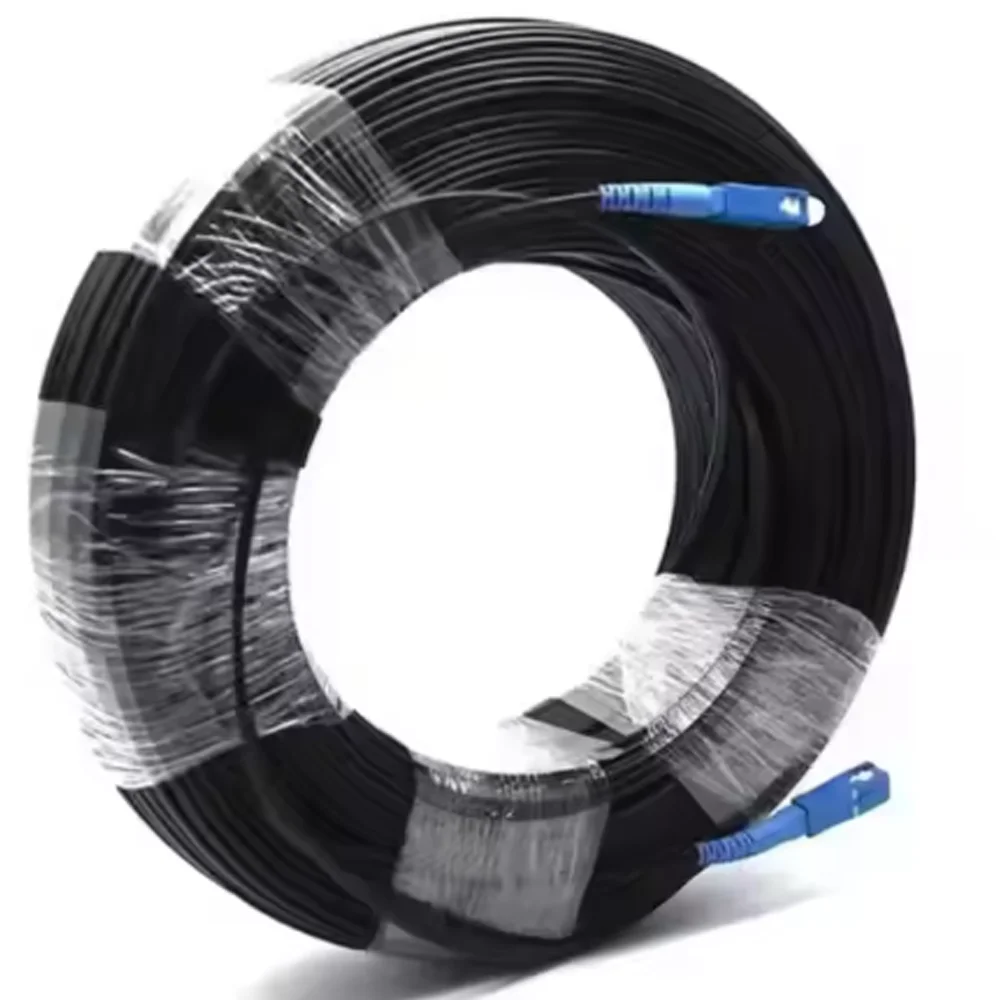

FTTH Drop Cable Patch Cords (Butterfly/Drop structure) are essential access products in Fiber-to-the-Home systems, featuring a flat butterfly-shaped design with 1~4 cores of bend-insensitive G657A1/A2 single-mode fiber. Integrating cable and connector into one assembly, these cords can be directly routed through building hallways, indoor conduit shafts, or overhead outdoor installations – with excellent mechanical performance and easy installation – making them the standard last-100-meter solution for fiber broadband networks.
Send Message Get Price
| Item | Value |
| Product Name | FTTH SC/APC Outdoor Drop Cable Patch Cord |
| Model Number | SM (Single Mode) |
| Product Type | Fiber Optic Patch Cord |
| Use | Outdoor FTTH Fiber Access |
| Fiber Type | G657A1 / G657A2 Single Mode Fiber |
| Fiber Count | 1 / 2 / 4 Fiber (Optional) |
| Connector Type | SC/APC, SC/UPC (FC/SC adapter optional) |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Cable Color | Black |
| Available Lengths | 5m / 10m / 100m / 150m / 200m |
| Working Wavelength | 1260 ~ 1650 nm |
| Insertion Loss | ≤ 0.35 dB |
| Return Loss | >= 50 dB (UPC); >= 60 dB (APC) |
| Operating Temp | -40 to +75 deg C |
| Storage Temp | -40 to +85 deg C |
| Warranty | 1 Year |
| Package Size | 15 x 15 x 1 cm (single item) |
| Gross Weight | 2.0 kg (single item packaging) |
| Item | Value |

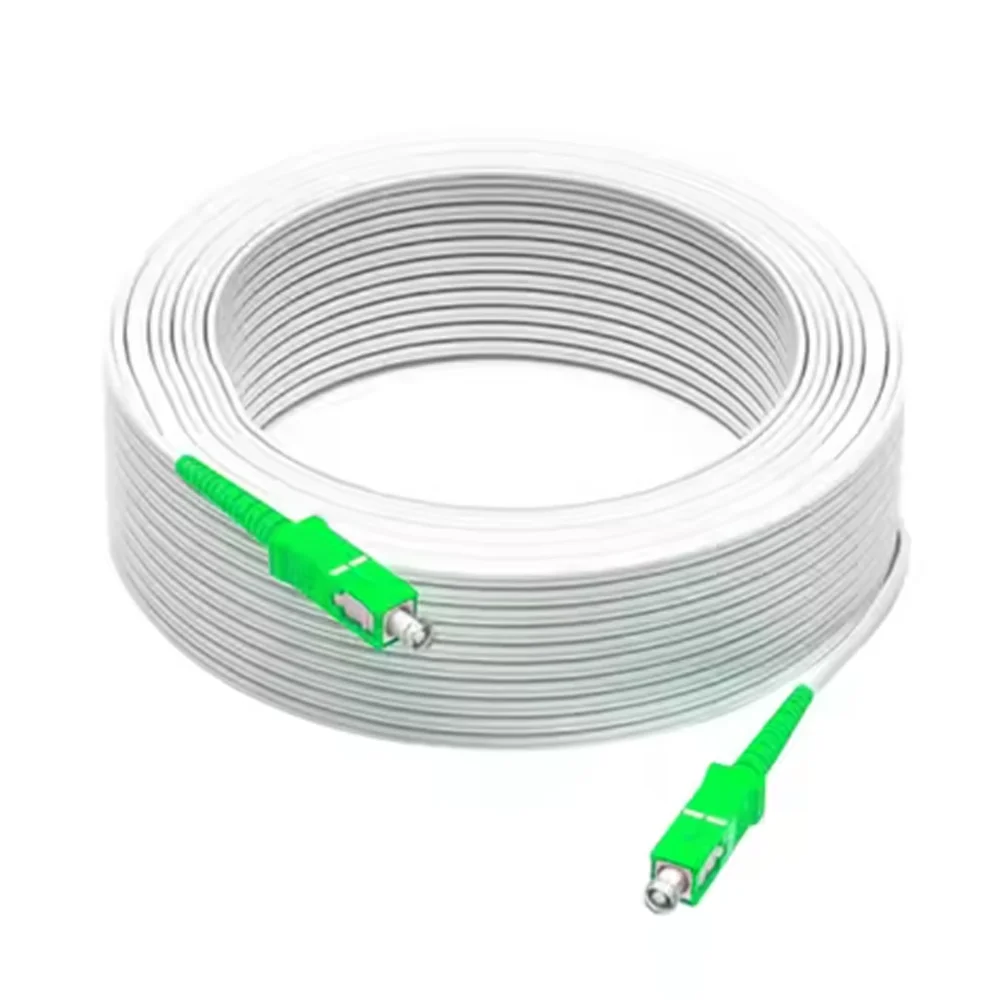

| Product Name | FTTH Fiber Optic Drop Cable Patchcord (Indoor/Outdoor) |
| Model Number | 2 Core (1 or 2 Core available) |
| Cable Type | Indoor/Outdoor FTTH Drop Cable Patchcord |
| Fiber Count | 1 Core / 2 Cores |
| Connector Type | SC/APC, SC/UPC |
| Jacket Material | LSZH (Low Smoke Zero Halogen) |
| Cable Color | Black, White, Customized |
| Available Lengths | 50m / 100m and other lengths customizable |
| Selling Unit | Single item (roll) |
| Package Size | 40 x 40 x 40 cm |
| Gross Weight | 1.0 kg (single item) |
| MOQ | 2 rolls |
| Sample MOQ | From $10 min. order; sample price $50 |
| Lead Time | 1-10 rolls: 32 days; >10 rolls: negotiable |
| Customization | Logo, packaging, graphic customization (MOQ 100 rolls) |
Note: Specifications are subject to change without prior notice for product improvement.
1/2/4 fiber options available to meet single-user to multi-user FTTH access scenarios
