Fast power response, supports multiple modes such as virtual power plant, grid-connected, off-grid, etc.
All-in-one design, greatly reducing the time and cost of transportation and on-site installation
Local collection, intelligent monitoring, remote operation and maintenance.
Standardized interface can connect multiple machines in parallel, easy to expand, and batch manufacturing process is easier to guarantee.
Intelligent installation and operation and maintenance, support node adaptation, fault indication, etc., reducing on-site and operation and maintenance workload by 70%.
Non-isolation design, improves system efficiency, independent single cluster battery, no circulation, reduces power loss.

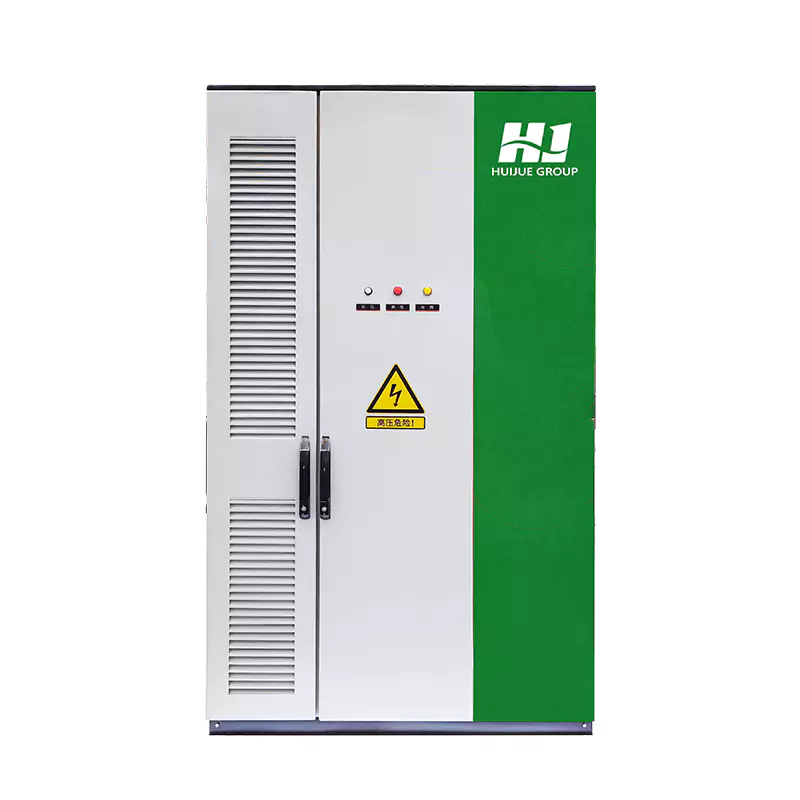

| Product Model:HJ-G150-372L（150KW/372KWh） | |||
| DC Parameters | AC Parameters | ||
| Battery Type | lithium iron phosphate (LiFePO4) | AC side rated power | 150KW |
| Cell Capacity | 3.2V/280Ah | Maximum power on AC side | 165KW |
| System Battery Configuration | 1P416S | Total harmonic distortion rate of cable | <3% at rated power |
| Rated Battery Capacity | 372KWh | Rated voltage of AC side | 380V AC |
| Battery Voltage Range | DC1165-1500V | AC access mode | 3P+N+PE |
| Charge/Discharge Ratio | 0.5C | Rated grid frequency | 50/60Hz |
| Depth of discharge | 80% | Power factor range | 0.98 |
| Battery Cooling Method | liquid-cooling | Off-grid operation | Support |
| System parameters | |||
| Dimension | 1400*1300*2350mm(reference) | Temperature control methods | Liquid-cooled units |
| Protection class | IP55 | Fire-fighting programme | Aerosols, perfluorohexanone |
| System Communication Protocol | Standard: Modbus | Communication Interface | RS485、RJ45 |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Peak shaving and valley filling; improve the stability of the power system; backup power; peak-valley arbitrage; optimize the utilization rate of renewable energy; reduce the investment cost of power grid upgrade and transformation.

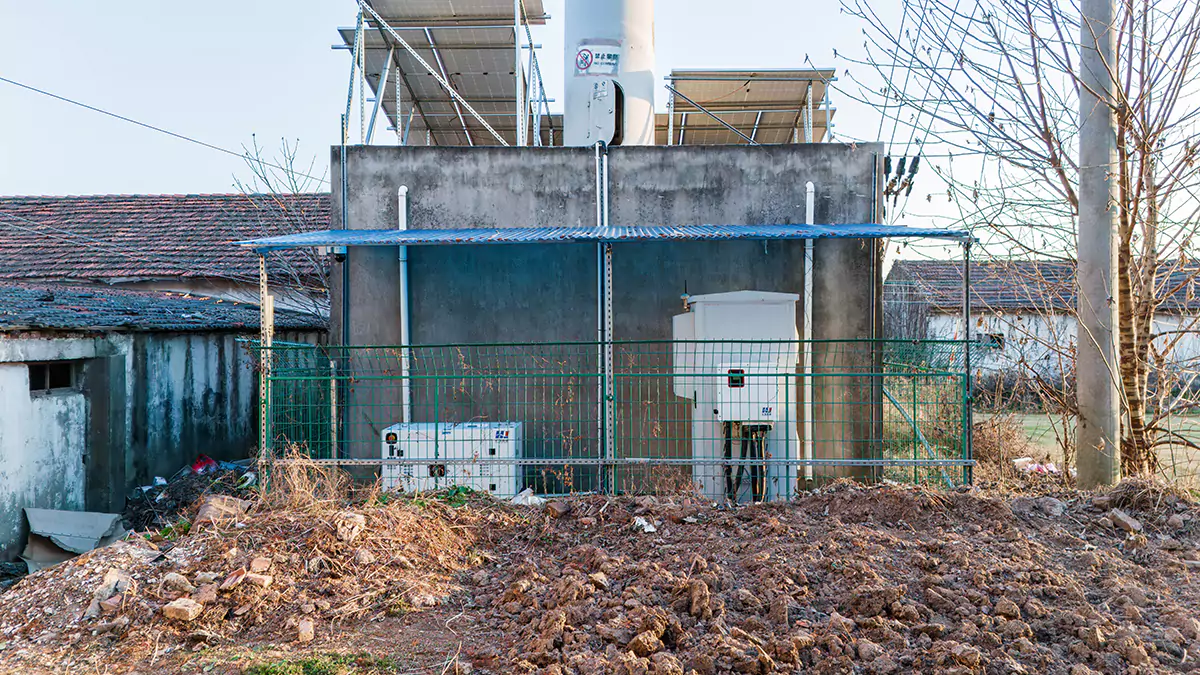

To cope with the problem of no or difficult grid access for base stations, and in line with the policy trend of energy saving and emission reduction, Huijue Group has launched an innovative base station energy solution. The solution adopts new energy (wind and diesel energy storage) technology to pr…
View More
Huijue Group's Home Energy Storage Solution integrates advanced lithium battery technology with solar systems. Ranging from 5kWh to 20kWh, it caters to households of varying sizes. It reduces electricity bills and serves as emergency backup power, providing a seamless, intelligent, and one-stop ener…
View More
The Huijue Group's Optical-storage-charging application scenario is a typical application of microgrid energy storage. The core consists of three parts - photovoltaic power generation, energy storage batteries, and charging piles. These three parts form a microgrid, using photovoltaic power generati…
View More
HuiJue Group's commercial and industrial energy storage solutions offer capacities ranging from 30 kWh to over 30 MWh. These solutions cover most commercial applications, such as electricity cost management, photovoltaic self-consumption, backup power scenarios, microgrids, and off-grid applications…
View More
The Huijue Group Off-Grid Solution comprises three main components: photovoltaic systems, energy storage systems, and off-grid systems, enabling energy self-sufficiency. This solution is scalable, covering applications from small-scale off-grid systems to medium and large-scale off-grid systems.
