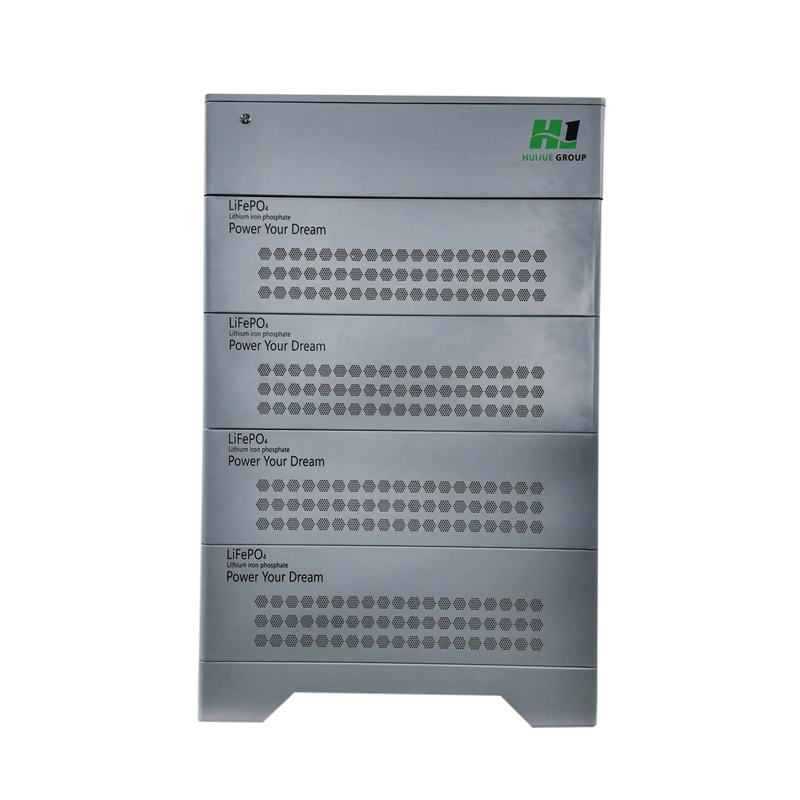

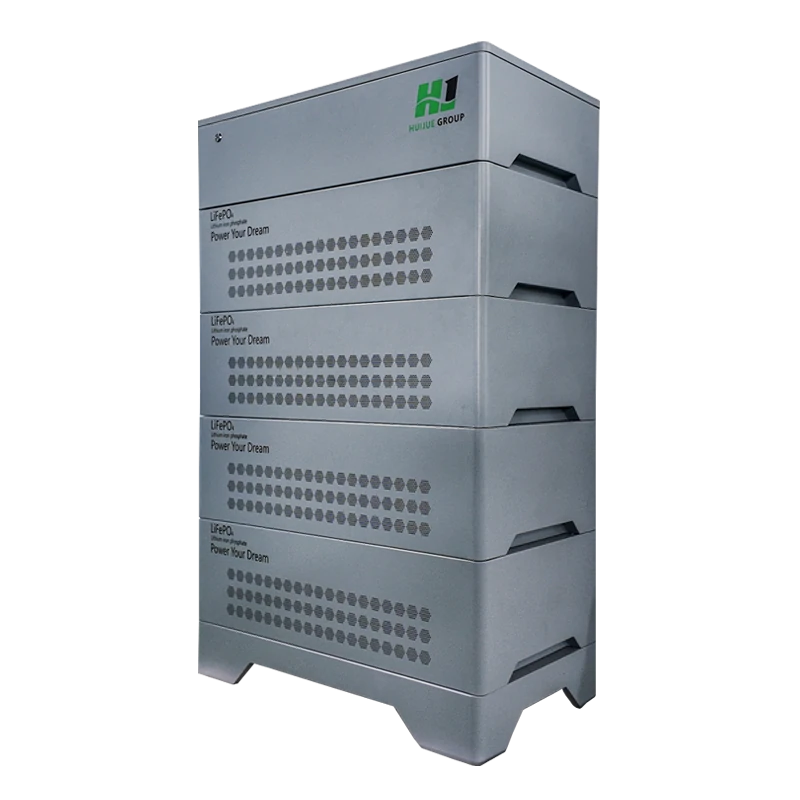

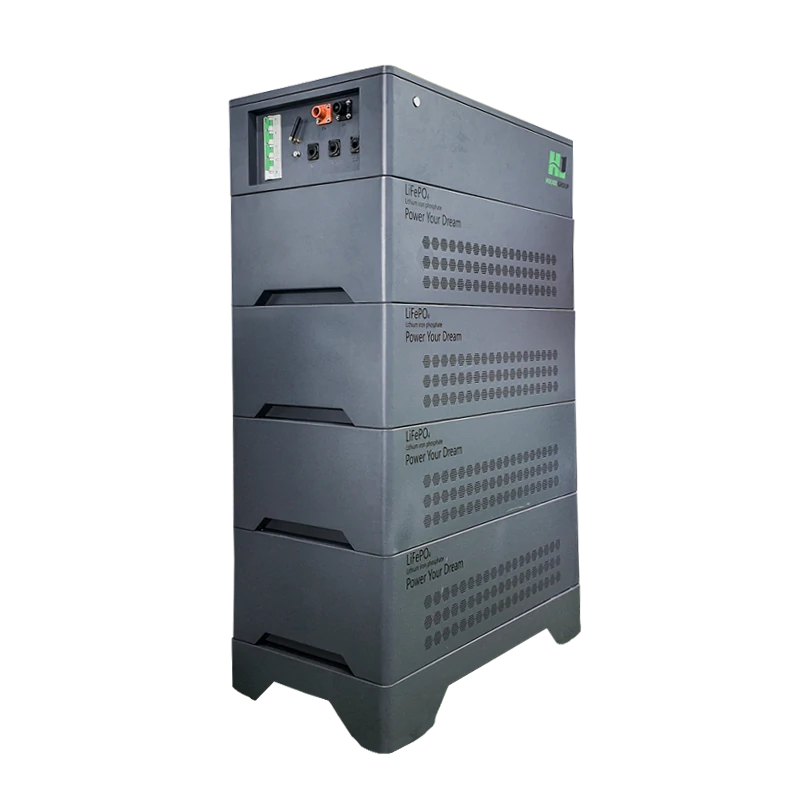

HJ-HBL48314S(D-9)is a high-voltage residential energy storage battery product.It supports stacking of up to 15 units,with a capacity ranging from 16kWh to 241 kWh.The product is equipped with a built-in fire protection module,which can eliminate fire risks and ensure household safety.
| MODEL | HJ-HBL48314S（D-9） | 5*Modules | 15*Modules |
| Cell type | LiFePO4 | ||
| Rated Voltage | 51.2V | ||
| Rated Capacity | 314Ah | ||
| Rated Energy | 16.08kWh | 80.38kWh | 214.15kWh |
| Voltage Range | 44.8 ~ 57.6V | 224 ~ 288V | 672 ~ 864V |
| Max.Charging Current | 157A | ||
| Recommended Charging Current | 150A | ||
| Max.Discharging Current | 157A | ||
| Efficiency | 98% | ||
| Dimension H*W*D(mm) | 770*228*420mm | 770*1456*420mm | 770*1912*420mm |
| Carton Dimension,H*W*D(mm) | Individually packaged,High-voltage tank: 810*460*240 mm;Base: 810*460*180 mm;Battery: 860*510*340 mm | ||
| Net Weight(kg) | ≈112kg | ≈587kg | ≈1725kg |
| Gross Weight(kg) | ≈123.2kg | ≈645.7kg | ≈1897.5kg |
| Humidity | Indoor (5% ~ 95%(RH) No Condensing) | ||
| Charging Temperature | 0℃ ~ 55℃ (32℉ ~ 131℉) | ||
| Discharging Temperature | -20℃ ~ 55℃ (-4℉ ~ 131℉) | ||
| Storage Temperature | -20℃ ~ 55℃ (-4℉ ~ 131℉) | ||
| Cycle Life | ≥8000 times(0.2C,@25°C,80%DOD) | ||
| Design Life | 15+ Years (25℃/77 ℉) | ||
Note: Specifications are subject to change without prior notice for product improvement.
Adopt advanced battery management system with high-quality brand battery cells.
Direct current output interface.
System Each battery module is equuipped with BMS.
Area Seamlless collaboration with various devices,platformms or software environments.
The capaccity of a singlebattery is 16kWh,whichcan be flexibly matchedaccording to electricitydemand.
