Adopting three-layer control architecture, the top layer is the energy management system, the middle layer is the central control system, and the bottom layer is the equipment layer, forming an autonomous system capable of realising self-control, protection and management.
The 500kW storage converter is designed as an integrated solution, supporting simultaneous access to loads, batteries, grid or diesel generators, and photovoltaic, with a variety of operating modes and flexible battery compatibility. The maximum conversion efficiency reaches 98.3%.
Equipped with a dynamic ring monitoring system, the power equipment and environmental variables in the server room are centrally monitored through various types of sensors, realising the functions of monitoring the normal state of equipment operation, predicting the abnormal state, and online intelligent fault diagnosis.

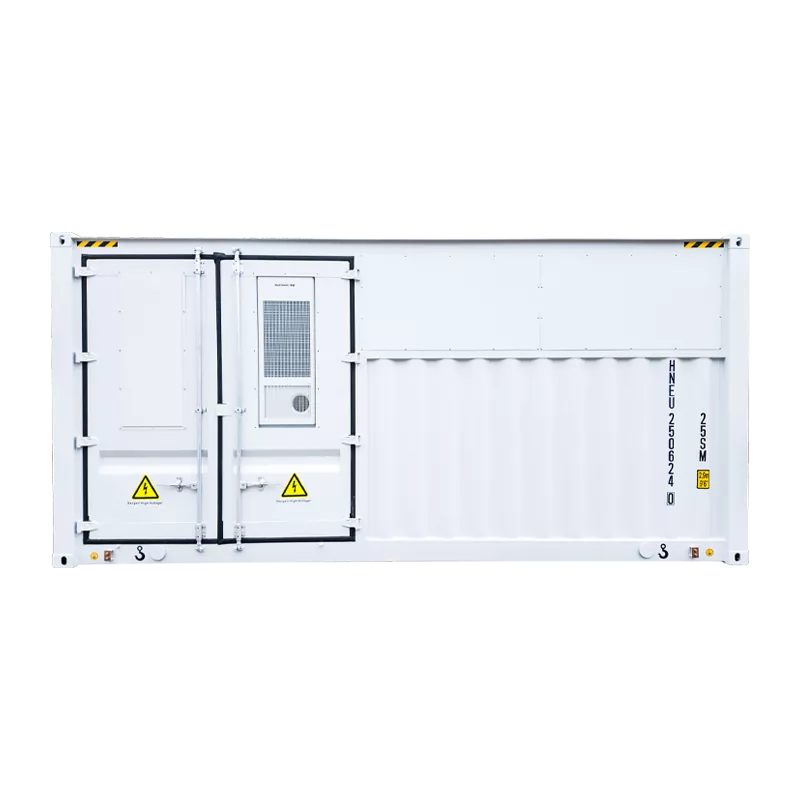

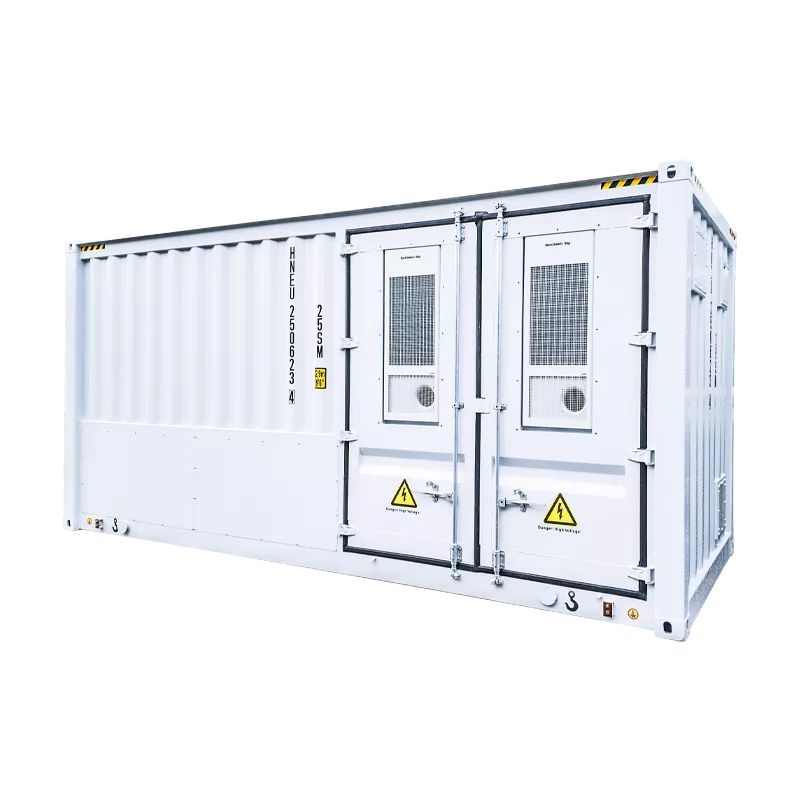

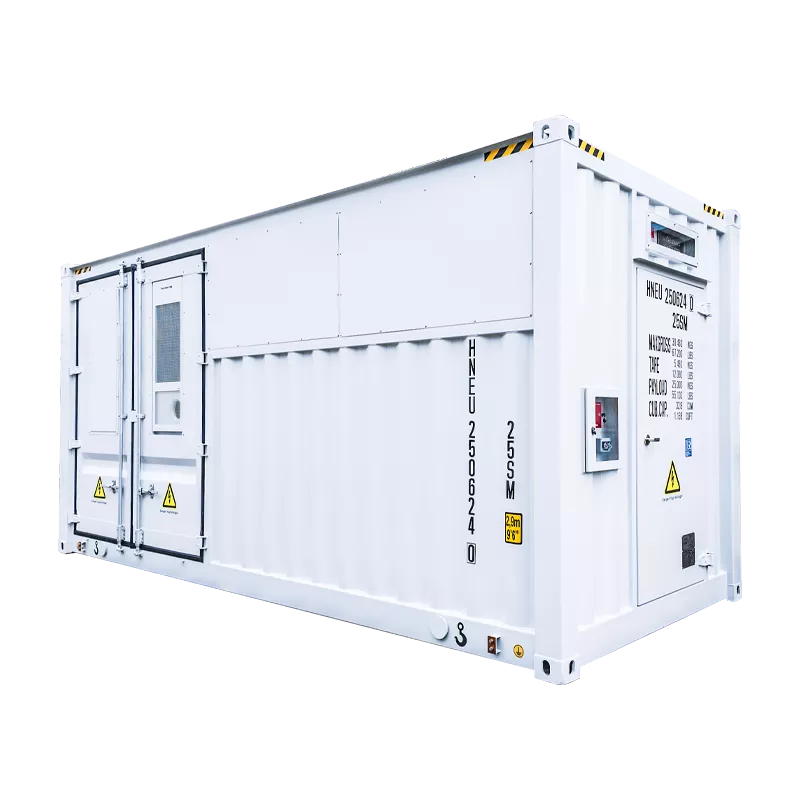

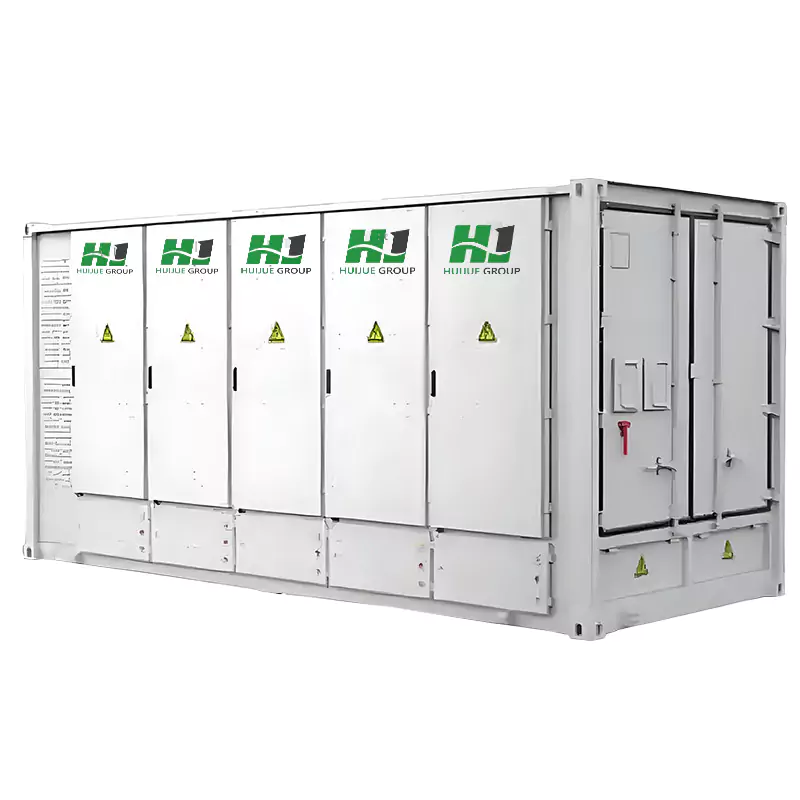

20-foot standard containers are used, with good anti-corrosion, fire prevention, waterproof, dustproof (wind and sand), shockproof, UV protection, etc. The layout of the box is reasonable, placing the energy storage converter, battery racks, fire protection system, air-conditioning system, lighting system and other equipment, and the overall design is convenient for transport, installation and maintenance.
| Model | HJ-G500-1000F |
| Container System | 20ft container (6058*2438*2896mm) |

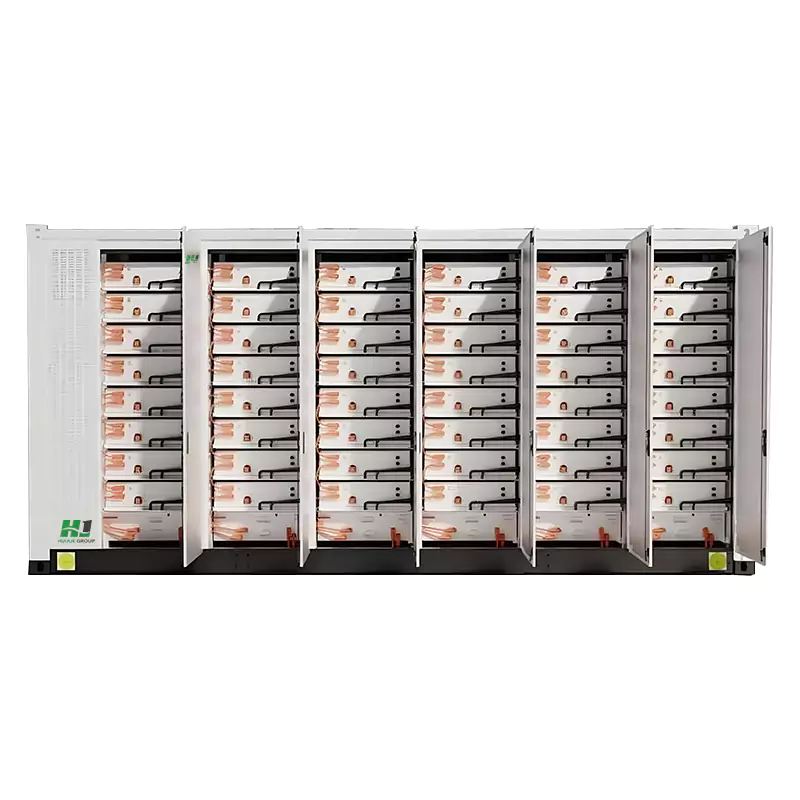

| Battery System (with BMS) | 78 51.2V/280Ah battery PACKs, total battery capacity 1118.208KWh |
| Power | 500KW, off-grid and grid-connected optional |
| Convergence control cabinet | EMS system, parallel convergence system |
| Electric control cabinet | EMS system, AC power distribution system |
| Fire Fighting System | Containing fire protection cabinet, fire control cabinet, fire protection mainframe, fire protection cylinders, do-not-enter sign, audible and visual alarms. |
| Monitoring System | Containing access control system, environmental monitoring system |
| Air conditioning system | Floor-standing integrated machine, rated cooling capacity 20KW, including air conditioning duct system |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Power station peak shifting, industrial energy storage, commercial energy storage, micro-grids
