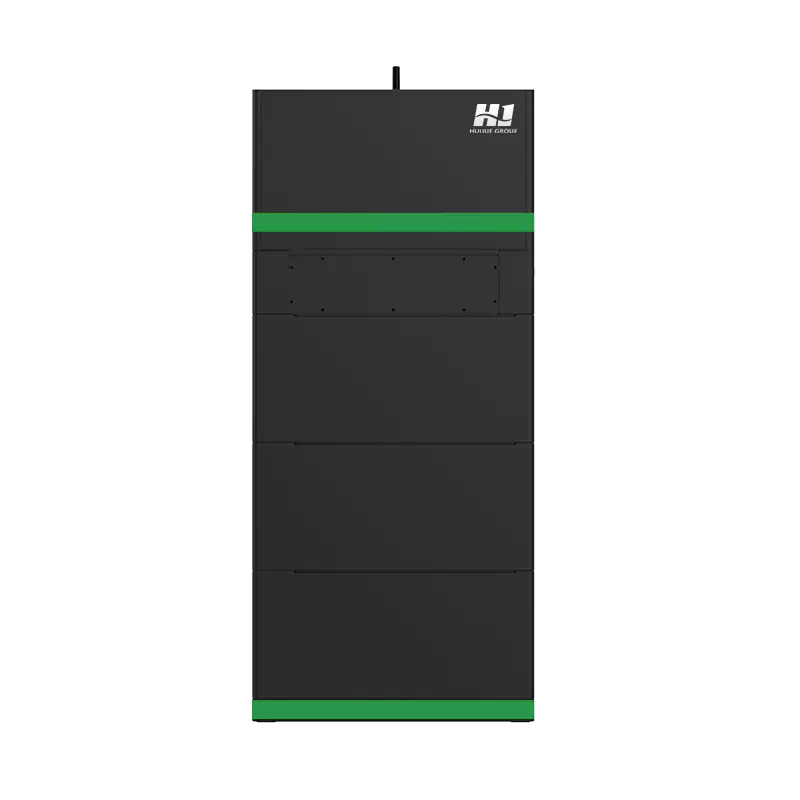

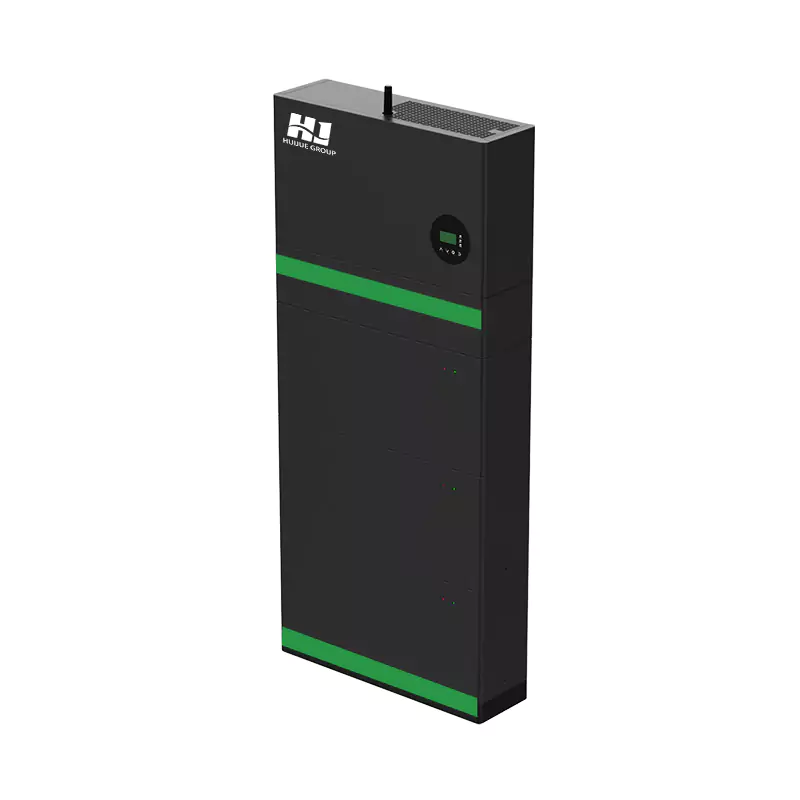

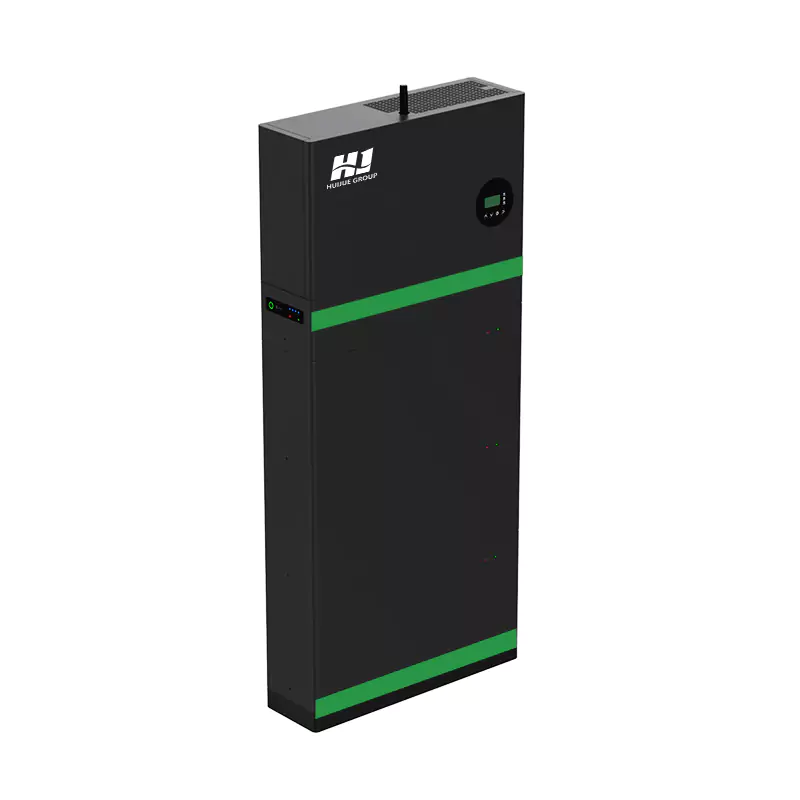

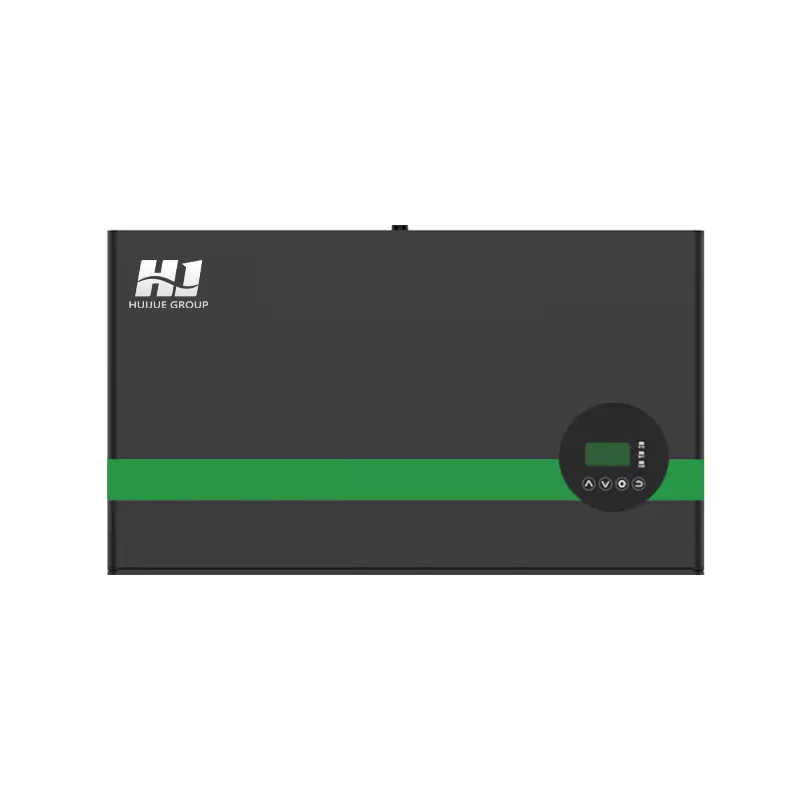

The All-In-One Three-Phase Stacked HESS is a high-performance product. It comes in a variety of models to suit different application scenarios and regional needs, effectively helping users reduce electricity costs, solve power supply issues in areas with unstable electricity, and assist users in achieving energy independence, providing efficient, convenient, and economical energy solutions for many users.
| Product model | HJ-H05-H05 | HJ-H10-H05 | HJ-H15-H05 |
| Bttery Type | Li-on/ Lead-acid | ||
| Battery Voltage Range [V] | 90-700 | ||
| Max. Charging Current [V] | 50 | ||
| Max. Discharging Current [V] | 50 | ||
| INPUT PV | |||
| Max. PV Input Power [kW] | 20 | ||
| Max. PV Input Voltage [V] | 1100 | ||
| MPPT Range [V] | 140-950 | ||
| Startup Voltage [V] | 120 | ||
| Max. Input Current [A] | 16/16/16 | ||
| Max. Short Circuit Current [A] | 24/24/24 | ||
| MPPT Trackers | 3 | ||
| Strings Per MPPT Tracker | 1/1/1 | ||
| GRID PORT | |||
| Rated Output Power [kVA] | 10 | ||
| Max. Output Current [A] | 16.7 | ||
| Max. Output Apparent Power [kVA] | 10 | ||
| Max. Input Power [kVA] | 20 | ||
| Rated Grid Voltage [Vac] | 220/380,230/400,3/N/PE | ||
| Grid Voltage Range [Vac] | 180-270 | ||
| Rated Grid Frequency [Hz] | 50/60 | ||
| Power Factor | —0.8~+0.8 | ||
| THDi | <3% | ||
| BACKUP PORT | |||
| Surge Backup Power [kVA] | 20 | ||
| Rated Backup Power [kVA] | 10 | ||
| Rated Backup Voltage [Vac] | 220/380,230/400,3/N/PE | ||
| Rated Backup Frequency [Hz] | 50/60 | ||
| THDv | <3%(Linear Load/)/<5%(Non-linear Load) | ||
| DCV | <100mA | ||
| Crest Ratio | 3:1 | ||
| Switch Time [ms] | <10 | ||
| EFFICIENCY | |||
| Max. Efficiency[Hz] | 98.40% | ||
| Europe Efficiency [Hz] | 97.90% | ||
| MPPT Efficiency [Hz] | 99.90% | ||
| Max. Round Trip Efficiency [Hz] | 96.00% | ||
| HMI&COMM. | |||
| Communication With BMS | CAN/RS-485 | ||
| Load Monitoring | Meter/CT/ Backup box | ||
| External Communication | RS-485/WIFI/4G/ Ethernet | ||
| User Interface | LED/LCD | ||
| BATTERY | |||
| Battery Module | 102.4V 5.3kWh | ||
| Cell Type | LFP(LiFePO4) | ||
| Number of Modules | 1 | 2 | 3 |
| Total Energy [kWh] | 5.3 | 10.6 | 15.9 |
| Nominal Voltage [V] | 102.4 | 204.8 | 307.2 |
| Operating Voltage [V] | 80-116.8 | 160-233.6 | 240-350.4 |
| Max Charge/ Discharge Current [A] | 52 | 52 | 52 |
| Continue Discharge Output [kW] | 5 | 10 | 15 |
| GENERAL SPECIFICATIONS | |||
| Dimensions (W*D*H)[mm] | 740*220*982 | 740*220*1317 | 740*220*1652 |
| Approximate Weight [KG] | 91 | 141 | 191 |
| Protection Degree | IP65 | ||
| Operating Temperature[℃] | Charge:0℃-50℃/ Discharge:0℃-50℃ | ||
| Storage Temperature [℃] | 0℃-35℃ | ||
| Humidity | ≤95% | ||
| Altitude [m] | ≤3000 | ||
| Cycle Life | Inverter:5 years/10 years; Battery: 10+ years,6000 cycles(90% DOD,25℃) | ||
| Installation | Stack, Floor-Mounted | ||
| CETIFICATION | |||
| Grid Regulation Safety | VDE-AR-N4105:2018,G98,G99,C10/11:2021,NTS 631,RD647:2020,UNE 217002:2020,CEI0–21,VDE 0126–1-1,NR | ||
| Safety Regulation | IEC/EN 62109-1&2,IEC/EN 62477-1:2012 | ||
| EMC | IEC/EN 61000,IEC/EN 61000-6-2,IEC/EN 61000-6-3,IEC/EN 61000-6-4 | ||
| Battery | UN38.3,IEC62619 | ||
Note: Specifications are subject to change without prior notice for product improvement.
102.4V 5.3kWh；Stackable up to 3 modules；Battery support up to 4 clusters in parallel.
UPS-level redundant protection prevents backup load failure.
Built-in EMS intelligent management system automatically optimises home energy supply.
Built-in power services, FCAS, VPP, etc.
The choice of most families is to convert the clean energy collected on a daily basis into household electricity expenditure.
