The single-phase stacked integrated unit is a residential energy storage integrated unit that combines intelligent switching, a sleek appearance, high-efficiency power generation, and a wide voltage range. It features a modular design that allows for flexible stacked installation and supports both grid-connected and off-grid operation, enabling seamless power switching in emergency situations. With excellent power generation efficiency and adaptability, it is an ideal choice for achieving efficient energy utilisation and management.
| Product model | HJ-H16-H08 |
| Photovoltaic Parameters | |
| Maximum Input Power [W] | 12000 |
| Maximum Input Voltage [V] | 590 |
| Operating Voltage Range/Rated Voltage [V] | 80~500/360 |
| Maximum Input Current [A] | 16/16 |
| Maximum Short-Circuit Current [A] | 20/20 |
| Number of MPPT | 2 |
| Number of Input String per MPPT | 1/1 |
| AC Parameters (Grid-Connected End) | |
| Rated Output Power (W) | 8000 |
| Maximum Apparent Output Power (VA) | 8800 |
| Maximum Input Power (W) | 8800 |
| Rated Voltage (Vac) | 230,L/N/PE |
| Rated Frequency (Hz) | 50/60 |
| Maximum Output Current (A) | 34.8 |
| Power Factor Range | ~1 (0.8 advance, 0.8 delay, adjustable) |
| Total Current Harmonic Distortion (@ Rated Power) (%) | <3 |
| AC Parameters (Off-Grid Side) | |
| Rated Output Power (W) | 8000 |
| Maximum Apparent Output Power (VA) | 8800 |
| Rated Output Voltage (Vac) | 230,L/N/PE |
| Rated Output Frequency (Hz) | 50/60 |
| Peak Output Apparent Power (VA) (60s) | 8400 |
| Peak Output Apparent Power (VA) (10s) | 9000 |
| Grid-Tie/Off-Grid Switching Time (ms) | <10 |
| AC Parameters (Diesel Generator End) | |
| Rated Voltage (Vac) | 230,L/N/PE |
| Rated Frequency (Hz) | 50/60 |
| Rated Input Apparent Power (VA) | 8000 |
| Battery Parameters | |
| Operating Voltage Range (V) | 306~408 |
| Rated Charging/Discharging Current (A) | 25/25 |
| Maximum Charging/Discharging Current (A) | 30/30 |
| Number of Batteries | 4 |
| Single-pack battery capacity (kWh) | 4.96 |
| Rated capacity (kWh) | 19.84 |
| Available capacity (kWh) | 17.85 |
| Efficiency | |
| Standard ambient temperature system efficiency [%] | 88% |
| Basic parameters | |
| Operating temperature range (℃) | -25 to 60 (>45 derating) |
| Operating altitude (m) | <4000 |
| Protection rating | IP65 |
| Relative humidity range (%) | 0–95, no condensation |
| Dimensions (W×H×D) (mm) | 425*340*1750 |
| Certification standards | |
| Certification standards | IEC62109-1/-2 |
| Safety standards | EN61000-6-1/-3,IEC61000 |
| EMC standards | AS4777.2:2020,NRS097-2-1:2017,EN 50549-1 for Czech,VDE-AR-N 4105:2018,EN50549-1:2019+AC:2,G98 G99,OVE- |
Note: Specifications are subject to change without prior notice for product improvement.
Supports off-grid operation and emergency power supply; seamless switching between grid-connected and off-grid modes.
Modular design with stackable installation; minimalist design that blends seamlessly with modern home interiors.
Minimal power reduction at high temperatures, enhancing power generation efficiency; DC over-capacity capability up to 1.7 times.
Ultra-wide PV voltage range of 80V to 900V; battery voltage range of 85V to 700V.

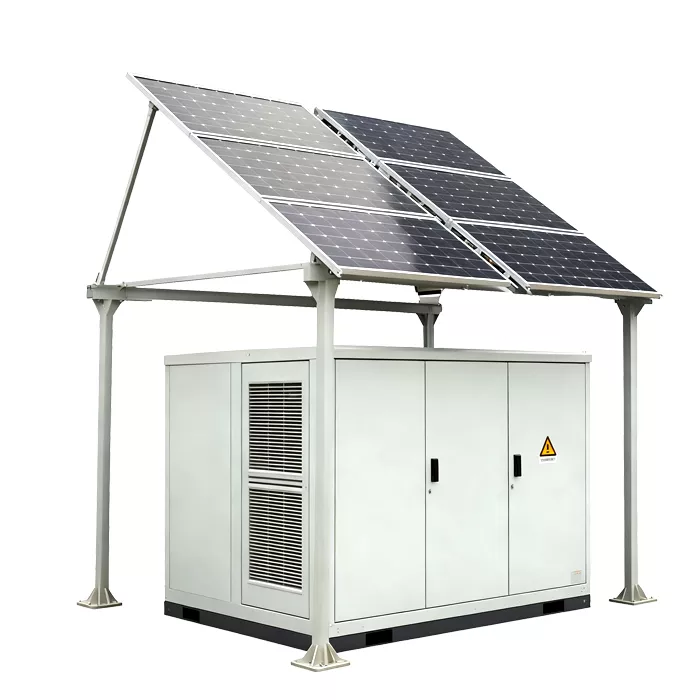

Advanced Base Station Energy Storage Provider To cope with the problem of no or difficult grid access for base stations, and in line with the policy trend of energy saving and emission reduction, Huijue Group has launched an innovative base station energy solution. The solution adopts new energy (wi…
