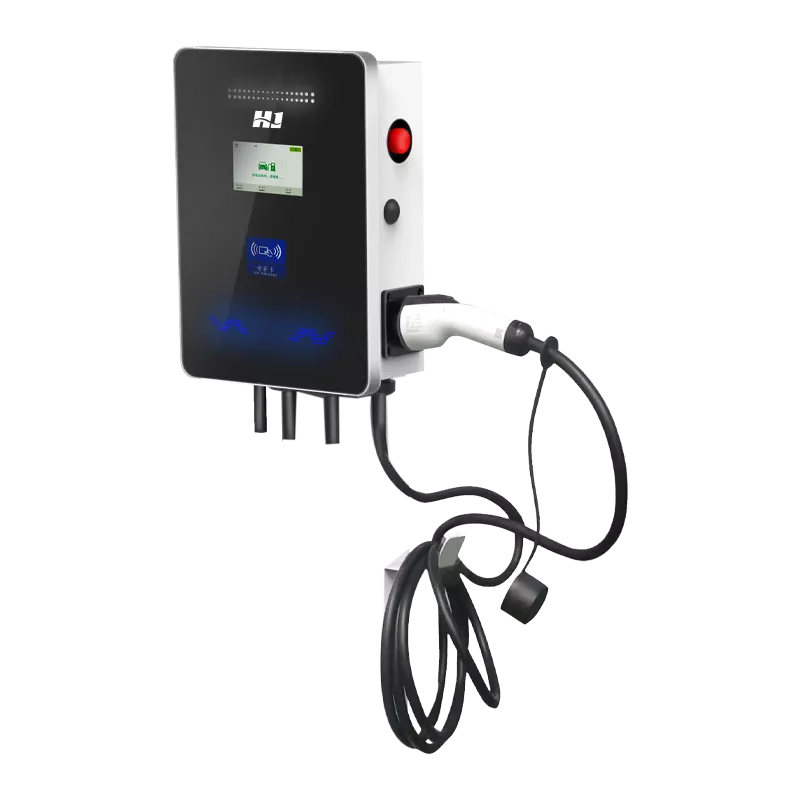

HJ single-gun AC charging pile features IP54 safety protection and multiple defense mechanisms, with universal compatibility for all vehicle types and support for parallel expansion of multiple devices.
| Product Model | HJ-EVZ-AC007-P-1（Z-1） | HJ-EVZ-A011C-P-1（Z-2） | HJ-EVZ-AC014-P-2（Z-3） | HJ-EVZ-AC021-P-1（Z-4） | ||
| Weight | 9.5kg | 10.5kg | 12.5kg | 12kg | ||
| Shell Material | Sheet metal/ Plastic casing | Dimensions | L275*W170*H380mm(Without columns) Column type H1415mm |
|||
| Installation | Wall-mounted/ Column type | Install components | Wall-mounted back panel / Floor-standing column | |||
| Wiring method | Bottom in and bottom out | Length of the charigng gun | 3.7m （standard）, 5m （optional） | |||
| Input voltage | AC 220V | Input frequency | 50Hz | |||
| Rated power | 7kW | 11kW | 14kW | 21kW | ||
| Output current | 32A | 16A | 32A | 32A | ||
| Applicable Scene | indoor/outdoor | Cooling Patterns | Air Cooled | |||
| Operating Tenperature | 20℃~+55℃,5%~95%(Non-condensing) | Storage Environment | 30℃~+70℃,5%~95%(Non-condensing) | |||
| Altitude | ≤2000m | Ingress Protection | IP54 | |||
| Overvoltage protection, undervoltage protection, overload protection, short-circuit protection, grounding protection, over-temperature protection, anti-theft design, lightning protection/smart electricity meter/(optional) | ||||||
| 4G communication, mobile payment, back-end monitoring, voice announcement, QR code charging, card swipe charging, LED indication, LCD display | ||||||
Note: Specifications are subject to change without prior notice for product improvement.
IP54 protection rating with multi-layered defense system.
Compatible with all vehicle types and supports parallel connection and expansion of multiple devices.
Real-time monitoring of charging data parameters, with intelligent identification of abnormal conditions and activation of protection mechanisms.
Supports multi-mode networks including 5G, WiFi, Bluetooth, and Ethernet.
Provides multi-platform management via APPs, official accounts, and mini-programs, equipped with a big data analysis platform.
Suitable for commercial complexes, office buildings, industrial park charging stations, high-end residential areas, etc.
Suitable for commercial complexes, office buildings, industrial park charging stations, high-end residential areas, etc.
