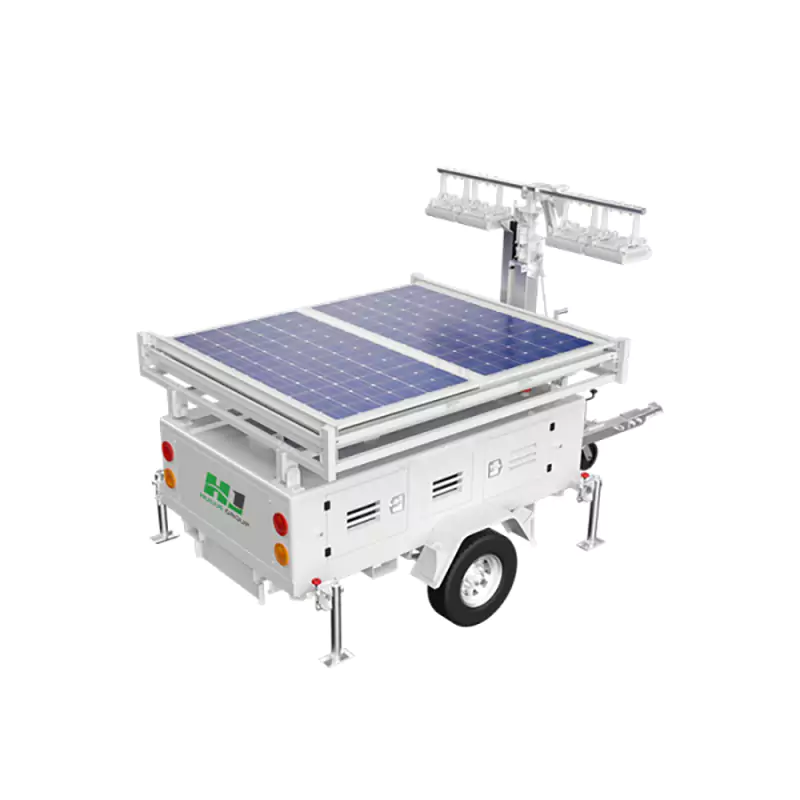

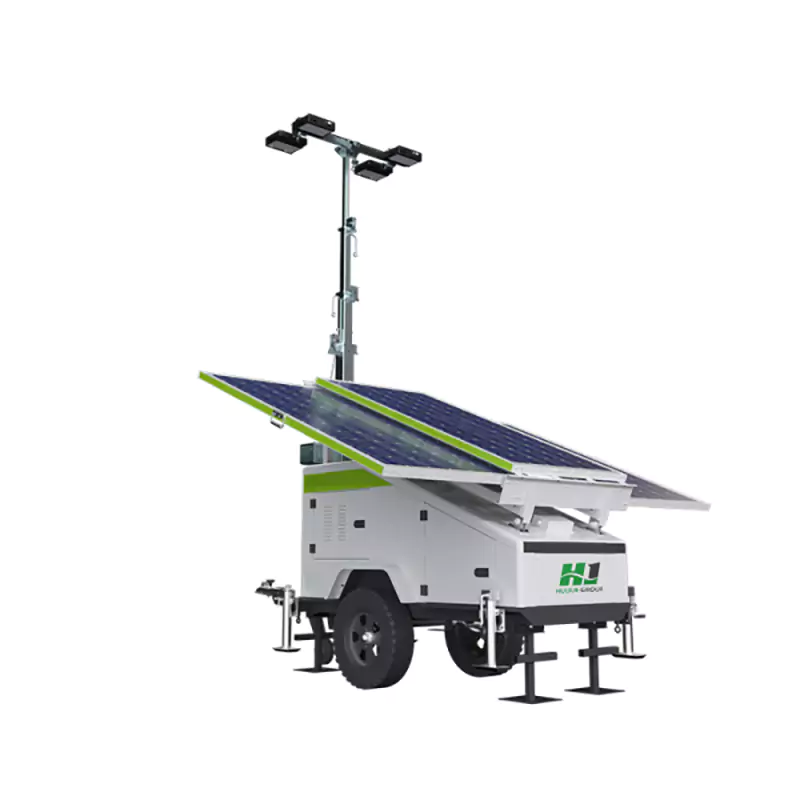

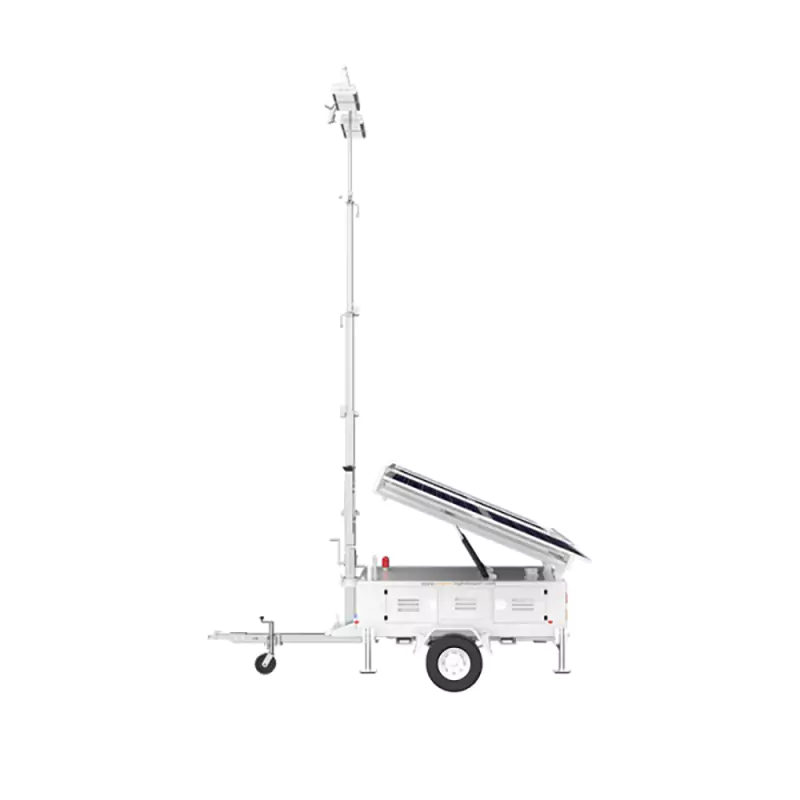

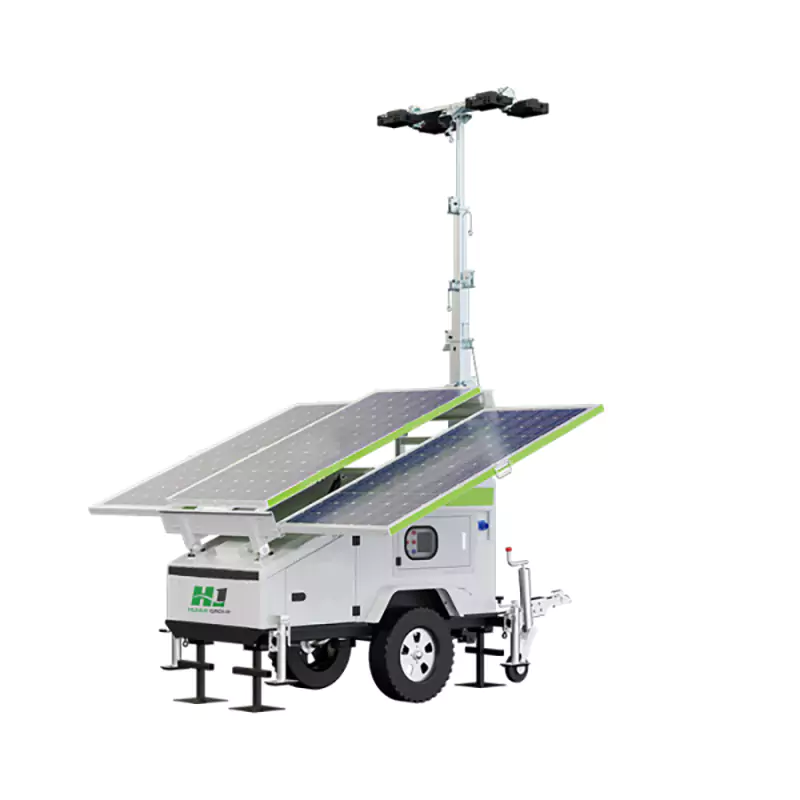

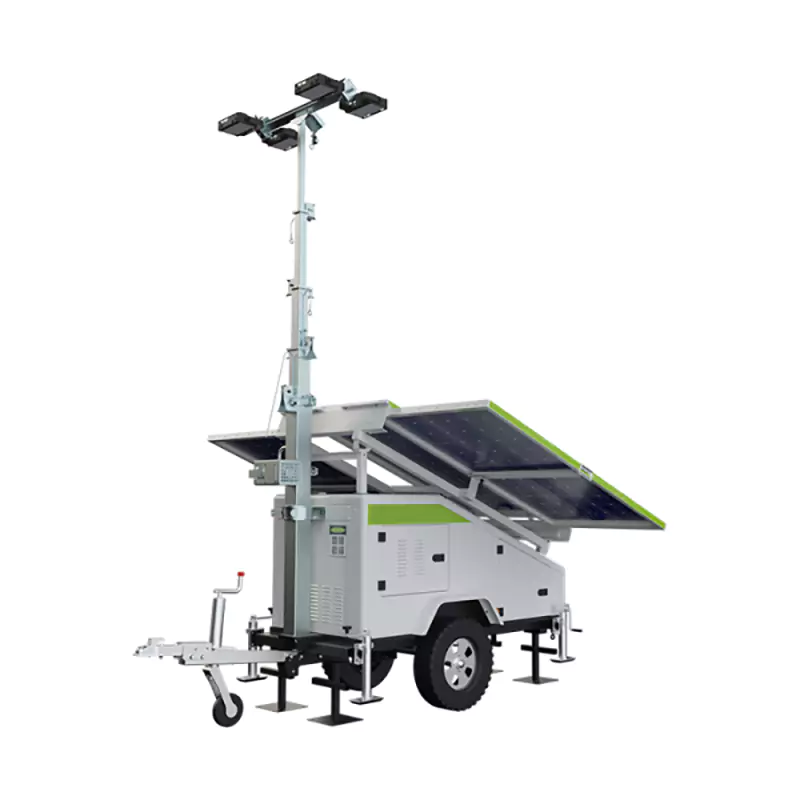

The HJ-PRO8-AI-LED primarily consists of a camera, AI video analysis terminal, lighting system, lifting system, transmission and storage system, energy storage and power supply system, trailer body, and control system. It is a mobile evidence collection system designed for large-scale projects and events. Featuring a user-friendly design with easy installation and operation, the system boasts a flexible chassis with towable tyres for convenient deployment and mobility. The integrated telescoping support frame facilitates secure mounting.
| Mobile Evidence Collection System | |
| Model | HJ-PRO8-AI-LED |
| Camera parameters | |
| Clarity | 20x HD PTZ Camera 1920×1080P |
| Frame rate | 25/30 fps |
| Audio and video compression | H.264/H.265 |
| Horizontal and vertical angle | Left/Right 360°, Up/Down +0°~-90° |
| Resolution | 1920×1080P |
| Focal length | F=4.7-87mm (customisable) |
| AI intelligent analysis | |
| AI Intelligent Analysis | License plate recognition and facial recognition, or facial recognition, safety helmet detection, smoking detection, reflective detection, and mask detection, etc. |
| Interface Platform | Ouk Dynamic Forensic Platform, Mobile AI Management Platform, supporting GB28181 |
| LED parameters | |
| Note | 2*120W |
| Illumination range | 120 m |
| Lighting angle | 25 ° |
| Lumens | 24000lm |
| Pan-tilt head | Supports 320-degree rotation in either direction and 380-degree rotation to the left and right. |
| Operating temperature range | -40℃—50℃ |
| VCR parameters | |
| Alarm output | 2-channel digital output, integrated with audio-visual alarms and power cut-off |
| Wireless transmission | Wireless bridge technology or 5G/4G transmission |
| Positioning | Supports built-in GPS/BD module, capable of reporting to the Ministry-standard platform |
| Storage | Supports up to 4TB hard drive storage |
| Trailer parameters | |
| Standby time | Equipped with a 48V 200AH battery, each battery can provide over 50 hours of runtime; (adjustable based on customer requirements) |
| Charging method | Power sources: mains electricity, solar power, car charger input; (wind power expandable) |
| Solar power | 8 x 200 watts |
| Lifting pole height | 3.5 metres to 10 metres (customizable based on customer requirements) |
| Wind resistance | Operates normally in 8-level winds; withstands 12-level winds without damage |
| Towing structure | Towing arm |
| Trailer and support | 5-point support |
| Tyres and rims | R13/165 or R14/185 or higher |
| Trailer shock absorption | Steel plate vibration damping |
| Brakes | Impact brake/handbrake |
| Shock absorption | Steel plate vibration damping |
| Towing style | Ring-shaped or spherical |
| Low temperature operation | -25°C |
| High temperature operation | 65°C |
| Humidity | Less than 90% (at 25°C) |
| Rainfall | Strength: 6 mm/min for 1 hour |
| Safety | Self-locking at any height with no height drop over time |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
The system integrates a camera, AI video analysis terminal, lighting system, lifting system, transmission and storage system, energy storage and power supply system, trailer body, and control system into an integrated design.
Cameras, lighting fixtures, lifting mechanisms, battery boxes, and storage hosts are designed with a modular structure.
Pneumatic lifting pole with a height of 10 metres when extended; consists of 7 sections, with 6 sections extended; retracted height of 2.1 metres, maximum outer diameter of 210 mm, minimum inner diameter of 65 mm, made of aluminium alloy; T6 treated, wind resistance rating of 8.
Supports dual 4G wireless transmission, with signal fusion technology for smoother video and higher clarity.
Supports dual TF card storage, with a maximum capacity of 256GB per card, enabling up to 40 days of recording time (expandable with a hard drive storage unit for larger storage capacities).
Whether online or offline, it supports expanded features such as license plate recognition, facial recognition, helmet detection, smoking detection, reflective detection, and mask detection. It provides on-site alerts for non-compliant behaviour, real-time screenshot capture and recording via the remote platform, along with alarm notifications.
Suitable for temporary mobile surveillance and lighting needs, such as border and coastal defence, highways, river environment monitoring, temporary police surveillance, large-scale events, marathons, exhibitions, riots, construction sites, smart construction sites, China National Petroleum Corporation (CNPC), China Petroleum & Chemical Corporation (Sinopec), natural gas sites, blasting sites, municipal construction, railway bridge construction, and fire emergency rescue operations, enabling emergency wireless surveillance.
