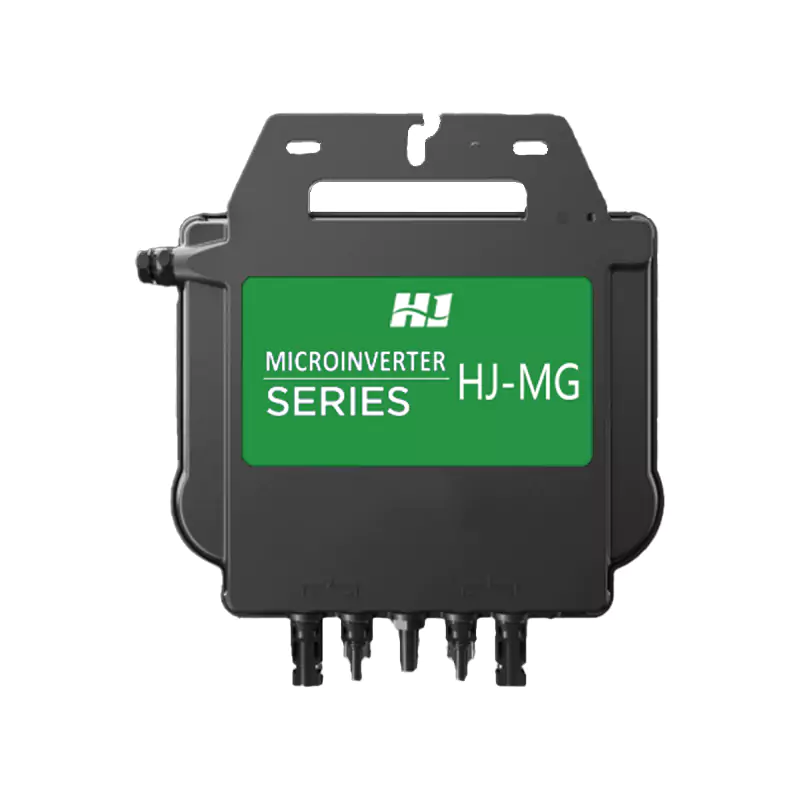

One microinverter connects two components with independent MPPT;
High power: Maximum output power reaches 2000W;
IP67 high protection level;
Built-in Wi-Fi and Bluetooth; Built-in safety protection relay; Directly plugged into the wall socket;
| DC Input | |
| Recommended Array Power Range | 315Wp-660Wp+ |
| MPPT Voltage Range | 56V-90V |
| Operating Voltage Range | 52V-118V |
| Max DC Input Voltage | 118V |
| Max DC Input Current | 20Ax2 |
| Max DC Short-Circuit Current | 25Ax2 |
| AC Output | |
| Rated Output Power | 1900W |
| Max Output Power | 2000W |
| Rated Output Voltage/Default Output Voltage Range | 220V/ 187V-242V |
| Max Output Current | 8.6A |
| Rated Output Frequency/Default Output Frequency Range | 50Hz/47.5Hz-50.5Hz |
| Power Factor | >0.99 |
| Efficiency | |
| Max Efficiency | 97% |
| MPPT Tracking Efficiency | 99.50% |
| Night Loss | 20mW |
| Mechanical Data | |
| Operating Temperature Range | -40℃ to +65℃ |
| Storage Temperature Range | -40℃ to +85℃ |
| Dimensions (L×W×H) | 283 mm x 233 mm x 39.5 mm |
| Weight | 4.2kg |
| DC Connection Type | Staubli MC4 PV-ADBP4-S28ADSP4-S2 |
| AC Extension Cable | Customer Provided* |
| Cooling | Natural convection (no fan) |
| Protection Level | IP67 |
| Pollution Degree | PD3 |
| Working Relative Humidity Range | 4%-100% |
| Max Altitude | <2000m |
| Overvoltage Category | PV input circuit OVC II, Power supply circuit OVC III |
| Features | |
| Communication | Built-in Wi-Fi and Bluetooth |
| Isolation Design | High-frequency transformer, AC isolation |
| Energy Management** | AP EasyPower application software |
| Warranty | Standard 12 years |
| Compliance | |
| Safety, EMC and Grid Compliance | NB/T 32004:2018 |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
