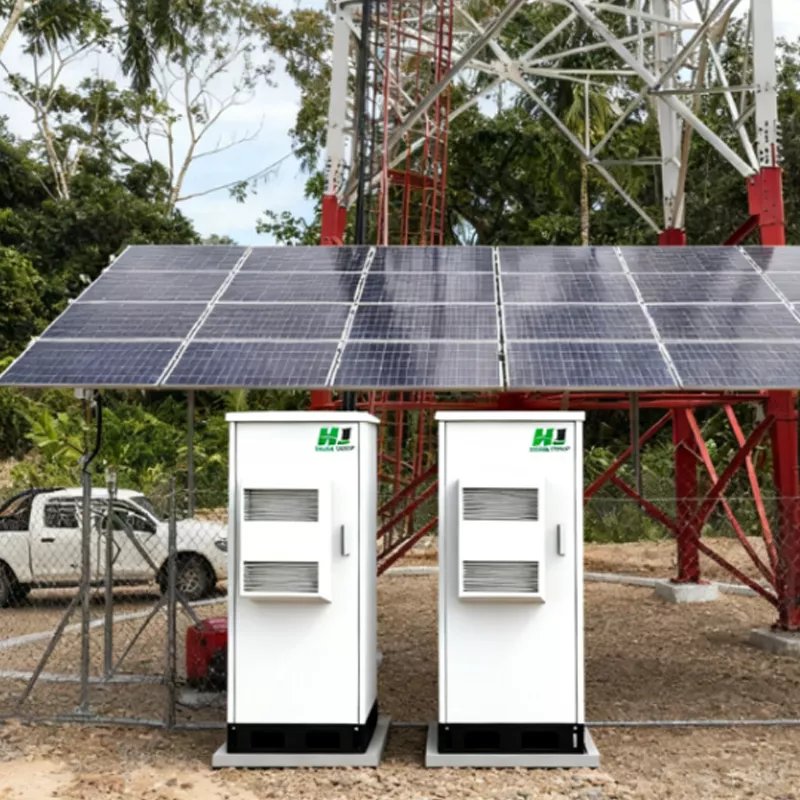

Outdoor Hybrid Energy Cabinet
Outdoor Hybrid Energy Cabinet
Outdoor Hybrid Energy Cabinet

Outdoor Hybrid Energy Cabinet

The products deeply integrate AC/DC conversion, multi-energy intelligent scheduling, energy storage charge/discharge management, and remote monitoring technologies. Flexibly deployable in indoor equipment rooms, outdoor 5G base stations, and remote sites, they ensure uninterrupted power for communications and critical loads while maximizing green energy consumption, reducing energy use and carbon emissions, and upgrading traditional power supply to a clean, intelligent, integrated site energy solution.

  • Type :  Base Station Energy Storage

Send Message   Get Price

Parameters

Base Station Energy System Specifications
Product Model HJ-CHO-06005-W HJ-CHO-12020-W HJ-CHO-24040-W HJ-CHO-36080-W
Cabinet Parameters Dimensions 700mm*580mm*450mm 1600mm*750mm*750mm 2200mm*800mm*850mm 2200mm*1500mm*850mm
Application Scenario Outdoor Pole-Mount Outdoor Floor-Standing Outdoor Floor-Standing Outdoor Floor-Standing
Thermal Control Fan-cooled Fan-cooled / Air-conditioned (optional) Fan-cooled / Air-conditioned (optional) Fan-cooled / Air-conditioned (optional)
Weight ≤75 kg (excluding battery) ≤160 kg (excluding battery) ≤200 kg (excluding battery) ≤380 kg (excluding battery)
Input Characteristics AC Input AC 220V, 50Hz; MCB 63A/4P; SPD ×1; Output 16A ×1 AC 380V; MCB 63A/4P;
SPD ×1; Output 16A ×1
AC 380V; MCB 63A/4P; SPD ×1; Output 16A ×1 AC 380V; MCB 63A/4P; SPD ×1; Output 16A ×1
Wind/PV Input Supported, optional Supported, optional Supported, optional Supported, optional
Max. Power Supply Capacity 6KW(100A) 12KW(200A) 24KW(400A) 36KW(600A)
Efficiency 93% (96% optional) 93% (96% optional) 93% (96% optional) 93% (96% optional)
Rectifier Module Specifications 48V/50A module, 75A optional 48V/50A module, 75A optional 48V/50A module, 75A optional 48V/50A module, 75A optional
Total Capacity Max. 6 kW (100A) Max. 12 kW (200A) Max. 24 kW (400A) Max. 36 kW (600A)
PV Controller (MPPT) Single Module Spec 48V, 50A or 75A optional 48V, 50A or 75A optional 48V, 50A or 75A optional 48V, 50A or 75A optional
MPPT Input Voltage 60~150V, optional (200V~400V) 60~150V, optional (200V~400V) 60~150V, optional (200V~400V) 60~150V, optional (200V~400V)
Total Capacity Max. 6 kW (100A) Max. 12 kW (200A) Max. 24 kW (400A) Max. 36 kW (600A)
PV Module Max. Power Recommended 3 kW (6 kW optional) Recommended 6 kW (12 kW optional) Recommended 12 kW (24 kW optional) Recommended 18 kW (36 kW optional)
Battery Parameters (Optional) Rated Voltage 48V(40~60V) 48V(40~60V) 48V(40~60V) 48V(40~60V)
Charge/Discharge Current 30A (C-rate 0.3C) 90A (C-rate 0.3C) 60A (C-rate 0.3C) 180A (C-rate 0.3C)
Capacity 5KWh 20KWh 40KWh 80KWh
Output Characteristics AC Output 220/230Vac 230Vac(380Vac) 230Vac(380Vac) 230Vac(380Vac)
DC 48V Output Voltage 43.2V DC ~ 58V DC (default 53.5V DC) 43.2V DC ~ 58V DC (default 53.5V DC) 43.2V DC ~ 58V DC (default 53.5V DC) 43.2V DC ~ 58V DC (default 53.5V DC)
Rated Power Max. 6 kW (100A) Max. 12 kW (200A) Max. 24 kW (400A) Max. 36 kW (600A)
Peak Efficiency 96% 96% 96% 96%
DC Output Port MCB: 32A×2, 16A×4 (configurable per customer) MCB: 63A×2, 32A×2, 16A×4 (optional) MCB: 63A×2, 32A×2, 16A×4 (optional) MCB: 63A×2, 32A×2, 16A×4 (optional)
Application Scenario / Grid-tied / Off-grid Grid-tied / Off-grid Grid-tied / Off-grid Grid-tied / Off-grid

Note: Specifications are subject to change without prior notice for product improvement. Data Sheet

Feature

  • Multi-Energy Complementarity - Smoothing Power Fluctuations

  • Intelligent generator start-up keeps the diesel generator in its efficient operating range, reducing idle fuel consumption

  • Economic Benefits

    Lower Fuel Consumption, Reduced O&M, Extended Lifespan

  • Engineered for Harsh Environments,−40°C to +55°C; high humidity, high salt-fog, high altitude, and dusty conditions

Application

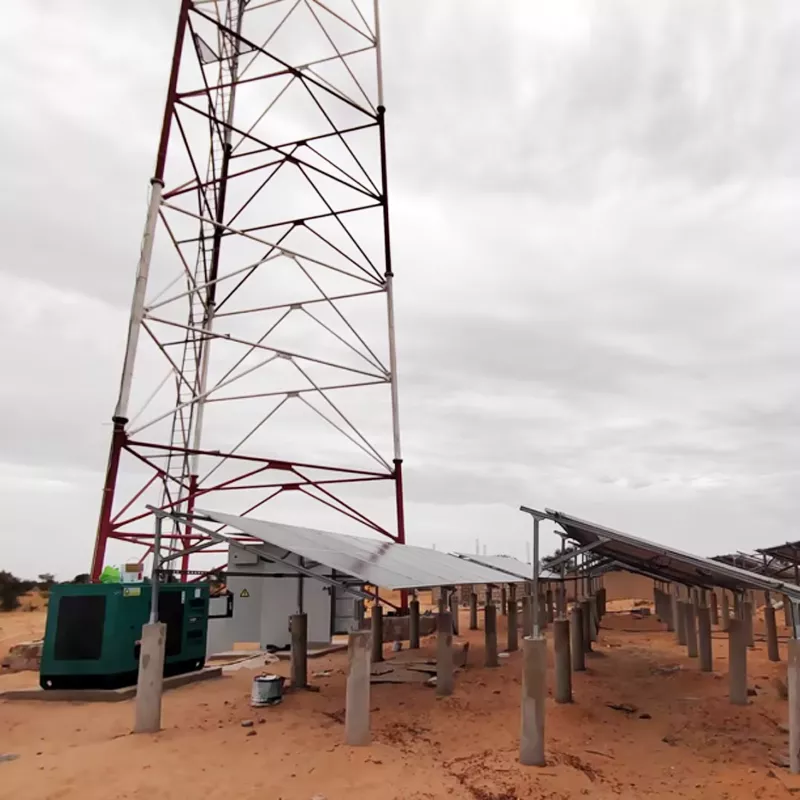

Communication base stations (5G/4G), remote base stations
Island stations, border outposts, field exploration sites
Mining areas, construction sites, temporary camps
Island microgrids, off-grid villages and towns Backup/primary power in areas with unstable grid;
