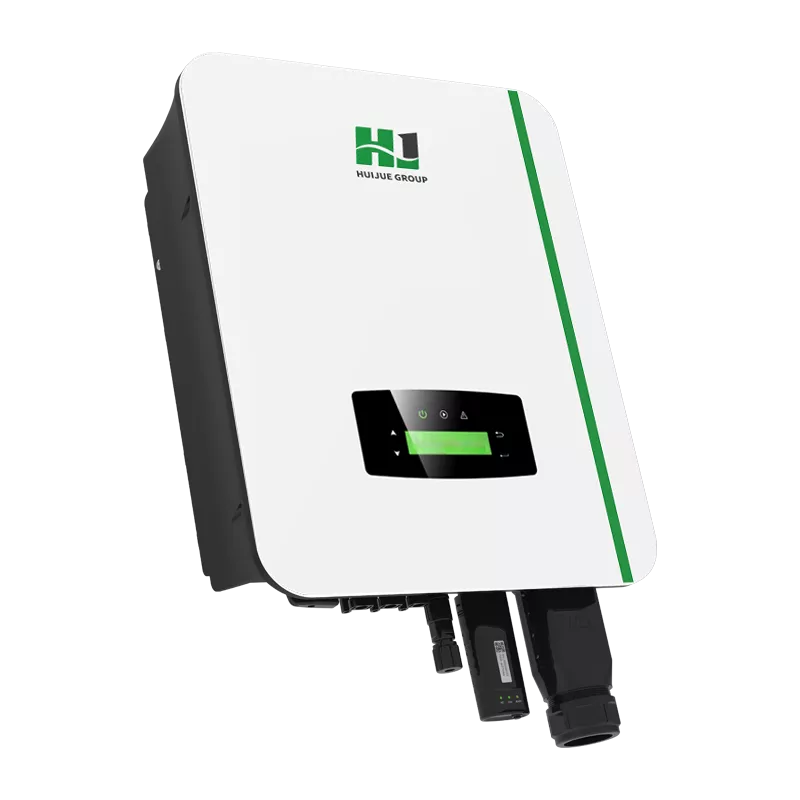

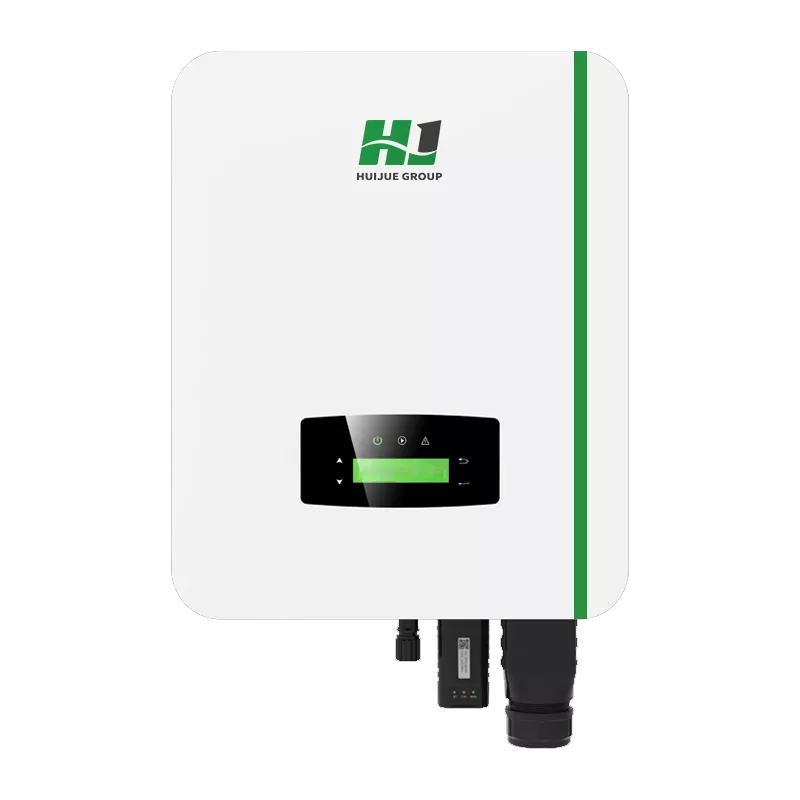

Designed specifically for residential PV-storage systems, it integrates grid-tied PV, energy storage management, and off-grid backup functionalities into a single unit. Featuring intelligent dual-mode switching technology, it seamlessly transitions between “self-consumption + surplus grid feed-in” and full off-grid operation, compatible with lithium-ion/lead-acid battery storage systems. With 10ms-class rapid switching capability, it ensures uninterrupted power supply to critical loads.
| Production Model | HJ-IH4863T(E-12) |
| PV Input Date | |
| Max, Input Power | 9KW |
| MPPT Operating Voltage Range | 150-850V |
| Max.Short Circuit Current | 18.5*2A |
| Number of MPPT Trackers | 2/2 |
| Battery Input Data | |
| Battery Voltage Range | 80-600V |
| Max.Charge/Discharge Current | 30A |
| Battery Type | Li-ion / Lead-acid / Sodium metal chloride battery |
| AC Data | |
| Nominal Power | 6 |
| Nominal Voltage | 3P+N+PE/3P+PE 230/400 |
| Nominal Frequency | 50/60 |
| Max.Current | 10.5 |
| Power Factor | 1（-0.8-0.8 adjustable） |
| Protection | |
| Protection | Reverse Polarity Protection Over Current / Voltage Protection Anti-islanding Protection AC Short-circuit Protection Leakage Current Detection Ground Fault Monitoring Grid Monitoring |
| General Data | |
| Operating Temperature Range | -25 to 60 °C |
| Cooling | Natural Convection |
| Relative Humidity | 0-100% |
| Display | LCD/ LED |
| Communication | RS485, CAN, Wi-Fi, GPRS, 4G |
| Installation | Wallet |
| Dimension (W*D*H) | 370 x 598.5 x 192mm |
| Weight | 22kg |
| Certification | |
| Production Certification | NRS097, G98/G99, EN50549-1, C10/C11, AS4777.2, VDE-AR-N4105, VDE0126, IEC62109-1, IEC62109-2 |
Note: Specifications are subject to change without prior notice for product improvement.
Supports up to 2x rated PV input, maximizing solar energy utilization.
Supports a maximum string input current of 21A, ensuring compatibility with high-power PV modules.
Compatible with 100-314Ah battery modules, reducing overall system costs.
Two independent battery ports for flexible configurations and easy capacity expansion.
Delivers 160% overload for 200ms in off-grid mode, ensuring stable startup of heavy loads.
Residential Solar Systems: Suitable for households looking to reduce electricity bills and maintain power during outages.
Commercial Office Buildings: Provides reliable energy management for businesses, optimizing solar and battery storage use to reduce operating costs.
Off-Grid Systems: Suitable for remote areas or locations without grid access, ensuring reliable energy production and storage.
