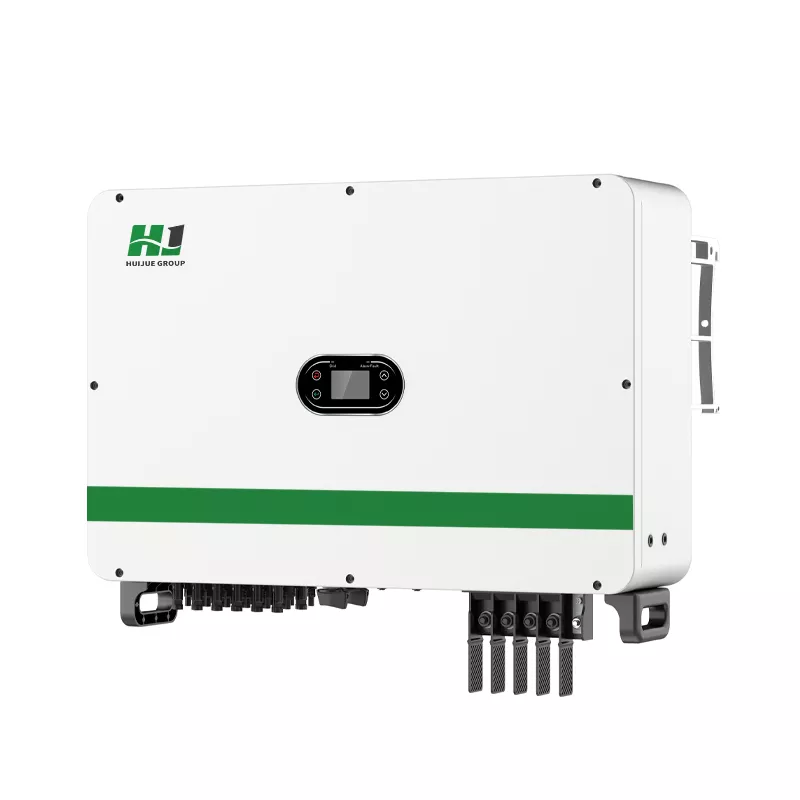

Designed specifically for residential PV systems, it integrates a high-efficiency intelligent MPPT algorithm and is compatible with multiple types of PV modules. With three-phase balanced grid-connection capability and support for RS485/Wi-Fi remote monitoring, it serves as an ideal solution for households to achieve “self-consumption + surplus power feed-in” operations.
| Production Model | HJ-IG48803T(E-33) |
| PV Input Date | |
| Max, Input Power | 120KW |
| MPPT Operating Voltage Range | 180-1000V |
| Max.Short Circuit Current | 40A |
| Number of MPPT Trackers | 6 |
| AC Data | |
| Nominal Power | 80kW |
| Nominal Voltage | 230V/400V，3L / N / PE |
| Nominal Frequency | 50Hz / 60Hz |
| Max.Current | 133.4A |
| Power Factor | >0.99 ( 0.8 leading ~ 0.8 lagging ) |
| Protection | |
| Protection | DC Reverse Polarity Protection Anti-islanding Protection AC Short Circuit Protection Residual Curent Monitoring Unit Insulation Resistance Monitoring Ground Fault Monitoring Grid Monitoring Py String Monitoring Surge Protection |
| General Data | |
| Operating Temperature Range | -30° C ~ +60° C |
| Cooling | Smart Cooling |
| Relative Humidity | 0 ~ 100% |
| Display | LCD/LED+APP |
| Communication | RS485/WiFi / GPRS / Ethernet |
| Installation | wall-mounted |
| Protection Degree | IP66 |
| Dimension (W*D*H) | 780x585x333mm |
| Weight | 77.8Kg |
| Certification | |
| Production Certification | IEC 62109-1, IEC 62109-2, IEC 61000-6-2, IEC 61000-6-4，EN 62920，IEC 61727, IEC 62116, IEC 60068, IEC 61683 |
Note: Specifications are subject to change without prior notice for product improvement.
30 inputs,{>} 150% DC/AC ratio；
Each MPPT maximum current 80A, compatible with 182 and 210 series bifacial modules；
Patented heat transfer technology, continuous output increase of 5% at high temperature.
IP66, C5-M Anti-Corrosion level；
Intelligent string break, remote release for DC switch，active safety；
Support intelligent AC/DC terminal temperature detection.
Intelligent string monitoring, smart l-V curve scan；
Each MPPT online insulation fault detection facilitates rapid fault identification；
Low temperature antifreeze,reverse dust removal indoor dehumidification.
Inverter with 20ms fast reactive power response, can replace SVG；
Support 400mm’aluminum wire connection, savingAC cable cost；
Support PLC communication,saving communication cables and construction cost.
Residential Solar Systems: Suitable for households looking to reduce electricity bills and maintain power during outages.
Commercial Office Buildings: Provides reliable energy management for businesses, optimizing solar and battery storage use to reduce operating costs.
Off-Grid Systems: Suitable for remote areas or locations without grid access, ensuring reliable energy production and storage.
