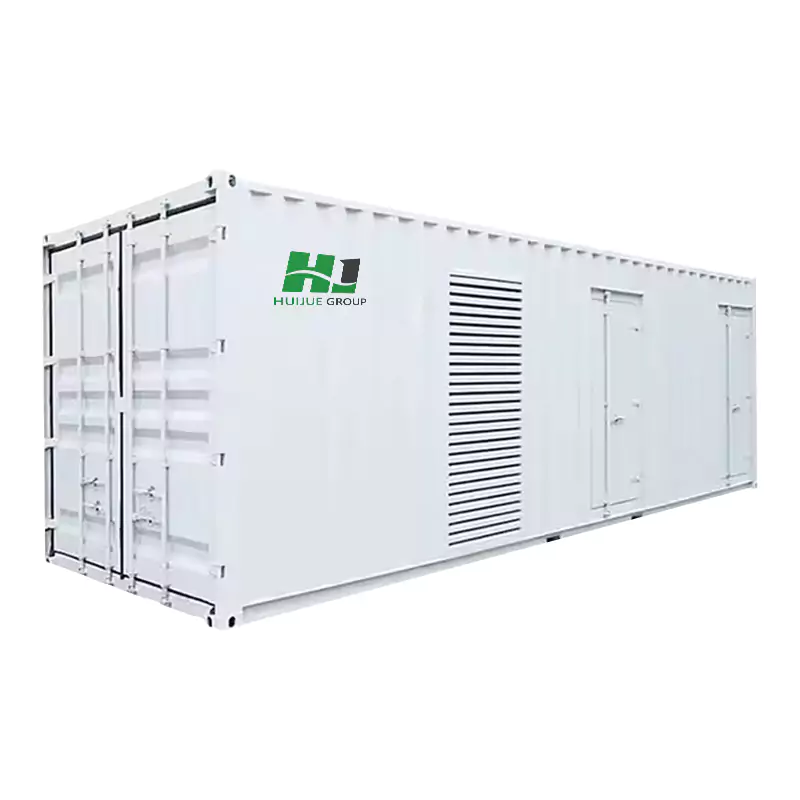

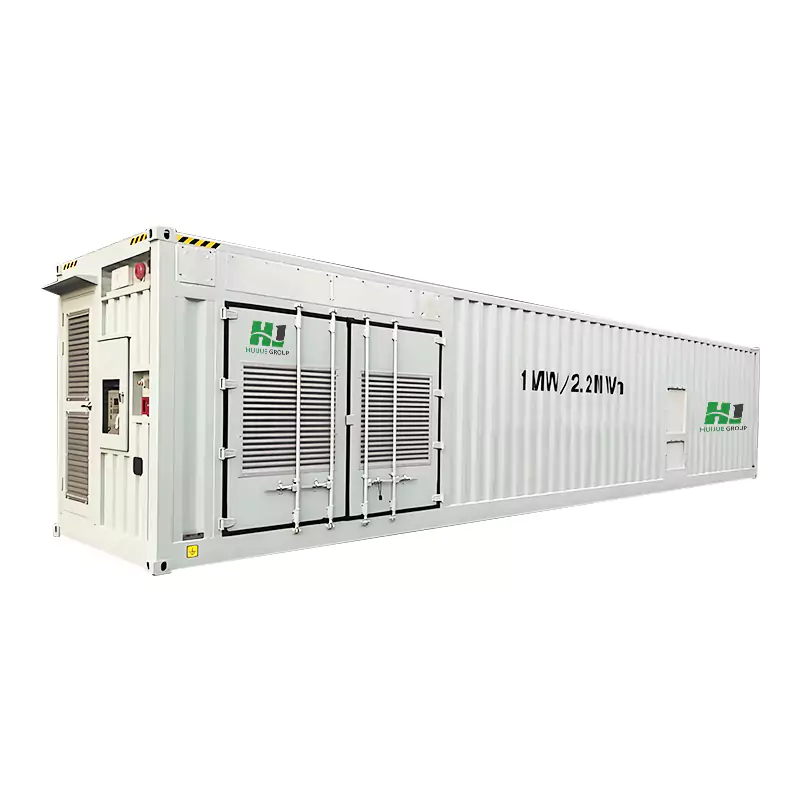

The system has a rated power of 1000KW and a total capacity of 2250.752KWh (about 2MWh), which is capable of meeting large-scale energy storage needs.

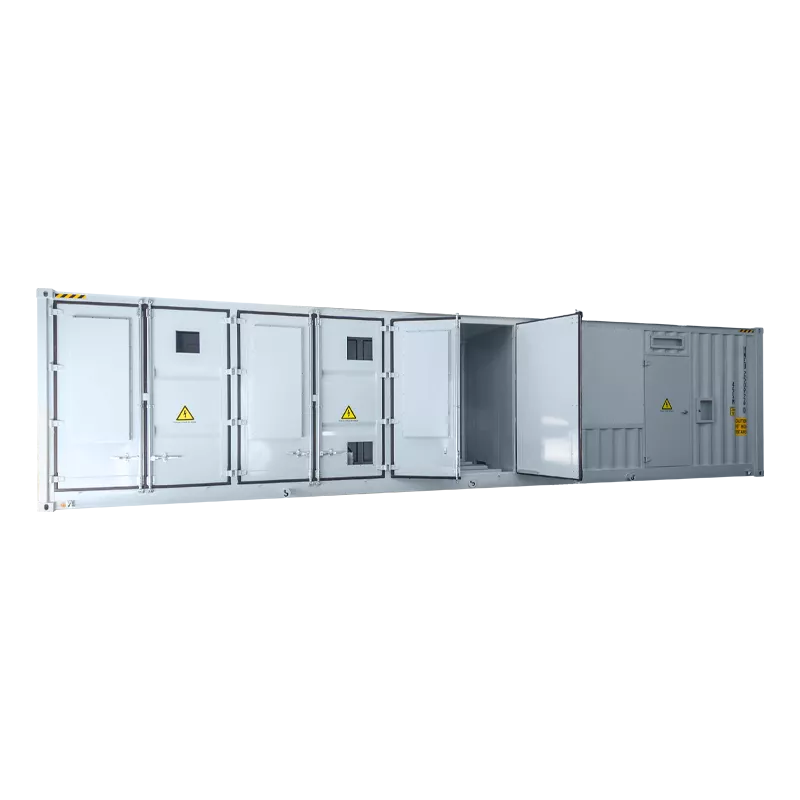

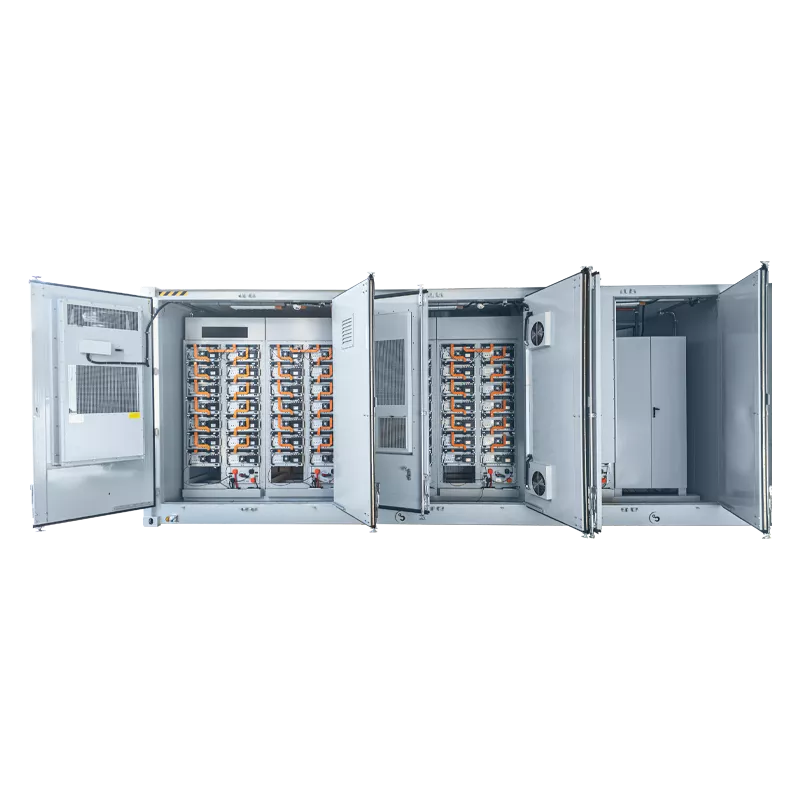

Core components such as batteries, PCS, EMS, and fire protection system are integrated into a single container, simplifying the installation and maintenance process.
Equipped with a complete fire protection system, including pipe network fire protection cabinet, fire protection control cabinet, fire protection mainframe, fire protection cylinders, etc., to ensure the safety of the system during operation.
Adopts EMS energy management system, optimises energy distribution and management, improves system efficiency and reliability.Strong environmental adaptability.
Off-grid or grid-connected mode can be selected to meet the needs of different application scenarios.
| Model | HJ-G1000-2200F |
| Container System | 40ft container |
| Battery System (with BMS) | Containing 140 51.2V/314Ah battery PACKs, total battery capacity 2250.752KWh |
| PCS | 500KW, off-grid and on-grid optional |
| Convergence control cabinet | EMS system, parallel convergence system |
| Electric Control Cabinet | EMS system, AC power distribution system |
| Fire Fighting System | Containing fire protection cabinet, fire control cabinet, fire protection host, fire protection gas cylinder, do not enter sign, sound and light alarms |
| Monitoring System | Containing access control system, environmental monitoring system |
| Air Conditioning System | Floor-standing integrated machine, rated cooling capacity 20KW, including air conditioning duct system |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Grid-side energy storage, power-side energy storage, user-side energy storage.
