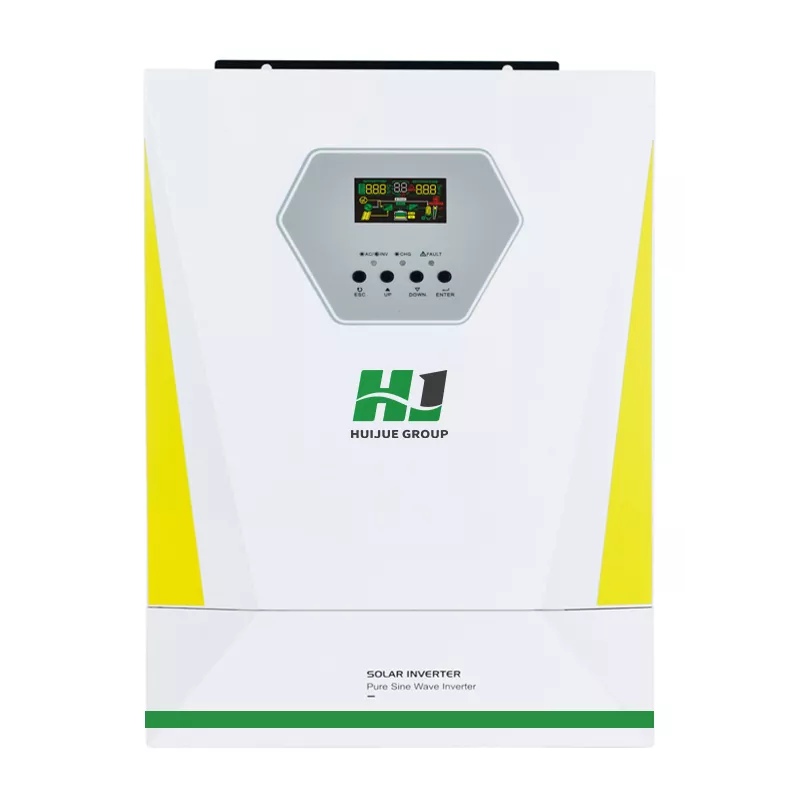

The series of energy storage hybrid inverters connect, coordinate, and control photovoltaic systems, energy storage batteries, the power grid, and loads. They provide stable, safe, and clean electrical energy for residential, commercial, and industrial users, meeting energy demands in various scenarios.
| Production Model | HJ-I055S(E-3) |
| PV Input Date | |
| Max, Input Power | 6200W |
| MPPT Operating Voltage Range | 90-500V |
| Max.Short Circuit Current | 18A |
| Number of MPPT Trackers | 2 |
| Battery Input Data | |
| Battery Voltage Range | 48-56.4V |
| Max.Charge/Discharge Current | 100A/100A |
| Battery Type | Li-ion/Lead-acid |
| AC Data | |
| Nominal Power | 6200W |
| Nominal Voltage | 220V |
| Nominal Frequency | 50Hz/60Hz |
| Max.Current | 100A |
| Power Factor | ＞0.99 |
| Protection | |
| Protection | Input Under-voltage Protection，Output Short Circuit Protection，Input Overvoltage Protection |
| General Data | |
| Operating Temperature Range | -10-60℃ |
| Cooling | Natural Convection |
| Relative Humidity | 20%-95%（Non condensing） |
| Display | LCD |
| Communication | WIFI/RS232 |
| Installation | Wall-mounted |
| Dimension (W*D*H) | 465*313*115mm |
| Weight | 18.88kg |
| Certification | |
| Production Certification | EN-IEC 60335-1，EN EC60335-2-29，EC 62109-1 |
Note: Specifications are subject to change without prior notice for product improvement.
Supports various types of energy storage batteries, such as lead-acid batteries and lithium-ion batteries.
Supports single-phase parallel operation and three-phase pure sine-wave output in parallel units.
The voltage level of 200-240Vac can be selected for single-unit or parallel systems.
Supports two photovoltaic inputs and has the function of tracking the maximum power charging/carrying capacity of two MPPT simultaneously. The MPPT efficiency is up to 99.9%.
Residential Solar;Cut electricity bills;Backup power during outages;Best for: Homes, eco-conscious owners

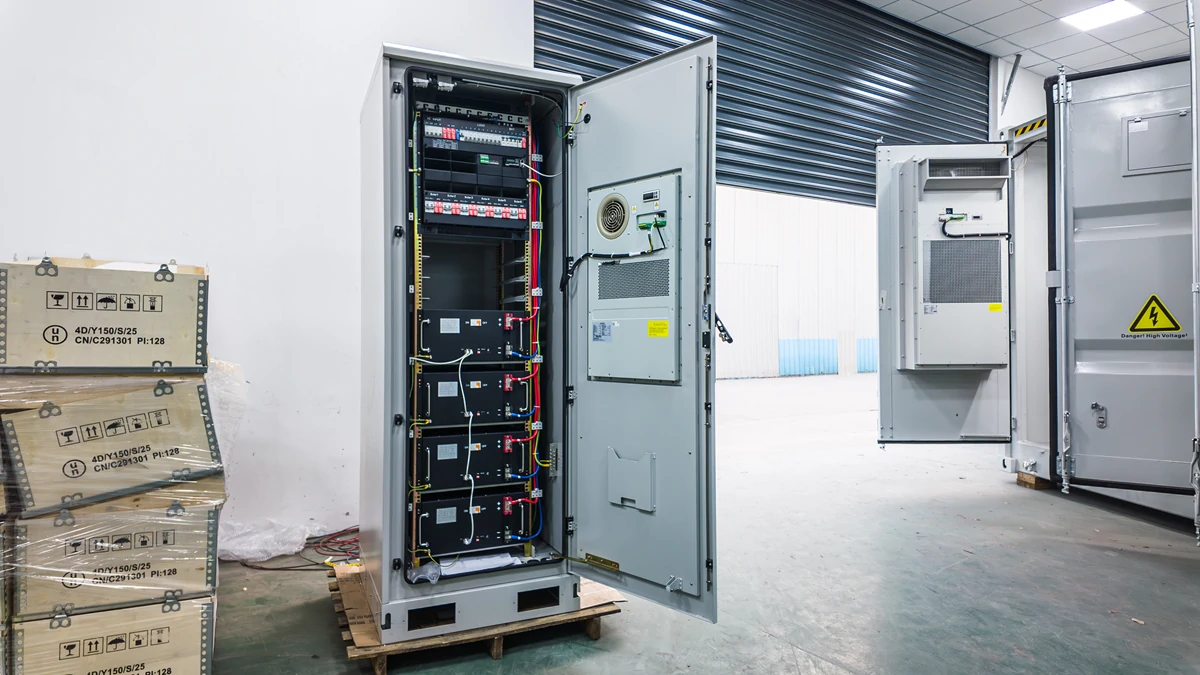

Advanced Solar Power Solutions for Telecom To address limited or unreliable grid access and support energy-saving policies, Huijue Group offers an innovative telecom solar power solution. It integrates solar panels, wind, diesel backup, and intelligent batteries to ensure reliable, continuous operat…
