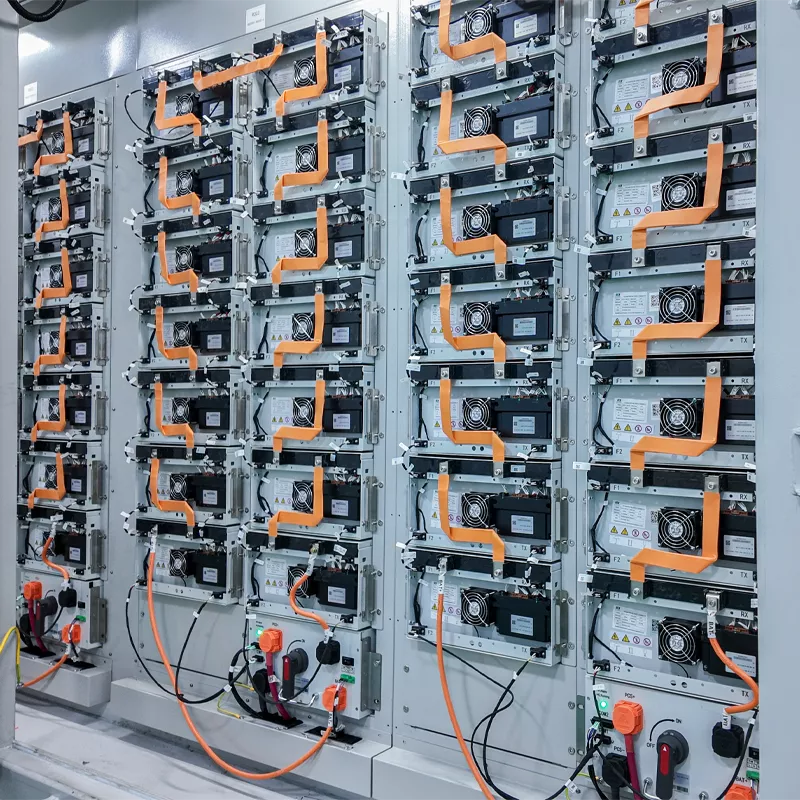

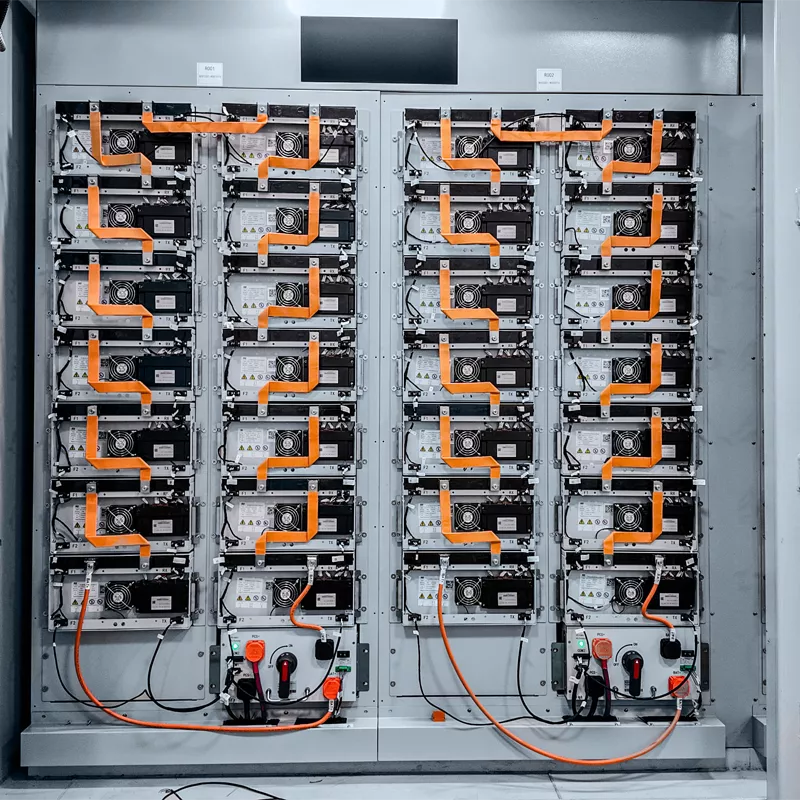

Adopting 1P16S series-parallel connection, air-cooled battery PACK with rated power/capacity of 51.2V/280Ah, including BMS slave control system, fan cooling system, power supply and signal connecting cables, and rated charge/discharge multiplication rate up to 0.5C.
Rated AC power of 500KW, rated AC output voltage of 380/400V, rated AC output frequency of 50/60HZ, DC input voltage range of DC 600-900V, string structure, with 5 DC inputs, module configuration of 125KW*5, and grid-connected design enables seamless connection to the power grid.
With the functions of equipment operation monitoring, coordination control and energy management, users can view the operation status, key parameters and historical data of the energy storage system in real time through the software.

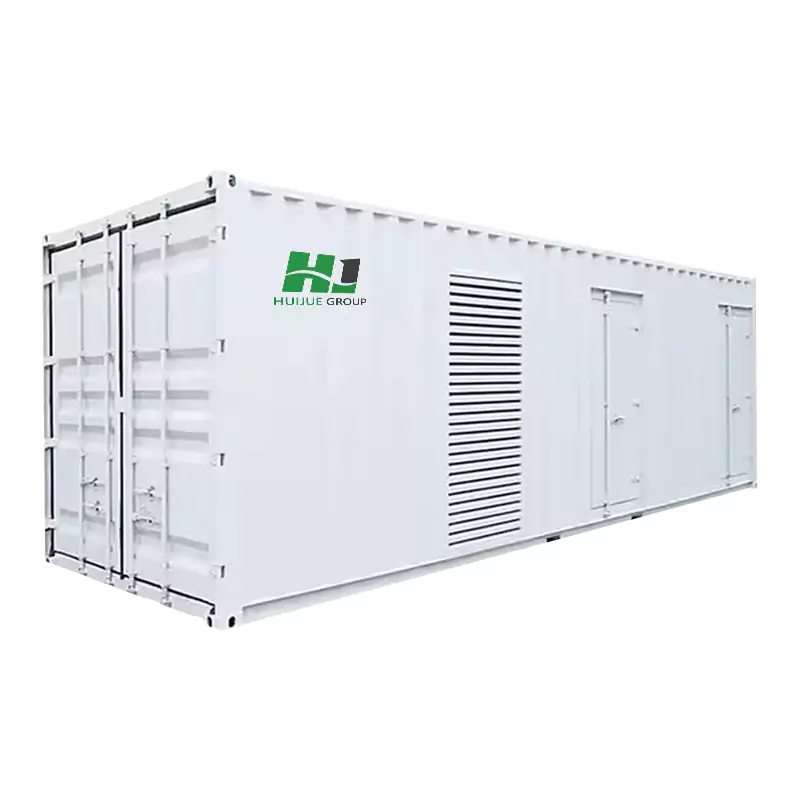

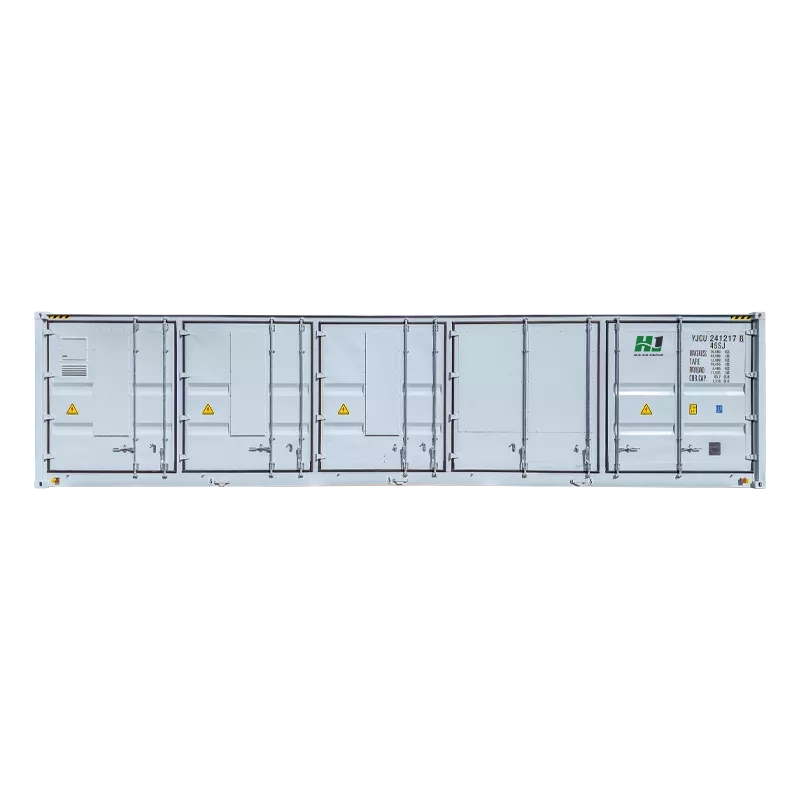

Adopting 40-foot non-walk-in container design, the highly integrated and modular energy storage unit inside the container is convenient for transportation, installation and maintenance.
| Model | HJ-G1000-2000F |
| Name | Product Specifications |
| Single energy storage battery compartment (2007.04 KWh) | |
| Energy Storage Container | 40 feet non-walk-in container (12192*2438*2896mm), including box, battery bracket, battery tray, lighting, etc. |
| Air-cooled Battery PACK | Series and parallel connections: 1P16S, rated power/capacity: 51.2V/280Ah, air-cooled battery PACK, including BMS slave control system, fan cooling system, power supply, signal connecting cables, rated charging/discharging multiplier, 0.5C. |
| Air Conditioning System | Rated cooling capacity: 9KW, door-mounted all-in-one unit with heating and dehumidifying functions. |
| Fire Fighting System | 40 feet container level fire fighting system, including gas detection device, fire alarm system, perfluorohexanone fire extinguishing system with pipe network. |
| AC Distribution Cabinet | Container auxiliary power supply system |
| Energy Storage Converters | |
| Energy Management System | |
| Accessories | |
| Accessories | Cable accessories, including the whole set of container energy storage system internal power cables, communication cables, etc. |
Note: Specifications are subject to change without prior notice for product improvement. Data Sheet
Grid-side energy storage for peak and frequency regulation, power-side energy storage for smoothing power output, user-side energy storage for power quality improvement.
